Type 450 Mining Cable – AS/NZS 2802 Metal-Screened Reeling & Trailing Cable, 3.3–33kV
Heavy-Duty Composite Screen with Tinned Copper Conductors, Kevlar® Braid Reinforcement, Fire-Retardant & Flexible Design for Draglines, Shovels, Excavators & Wharf Cranes
$10.00
Technical Specifications
Parameter | Description |
|---|---|
Cable Type | Class 1 Composite Screened Reeling and Trailing Cable |
Applicable Standards | AS/NZS 2802 |
Rated Voltage | 3.3/3.3 kV to 33/33 kV |

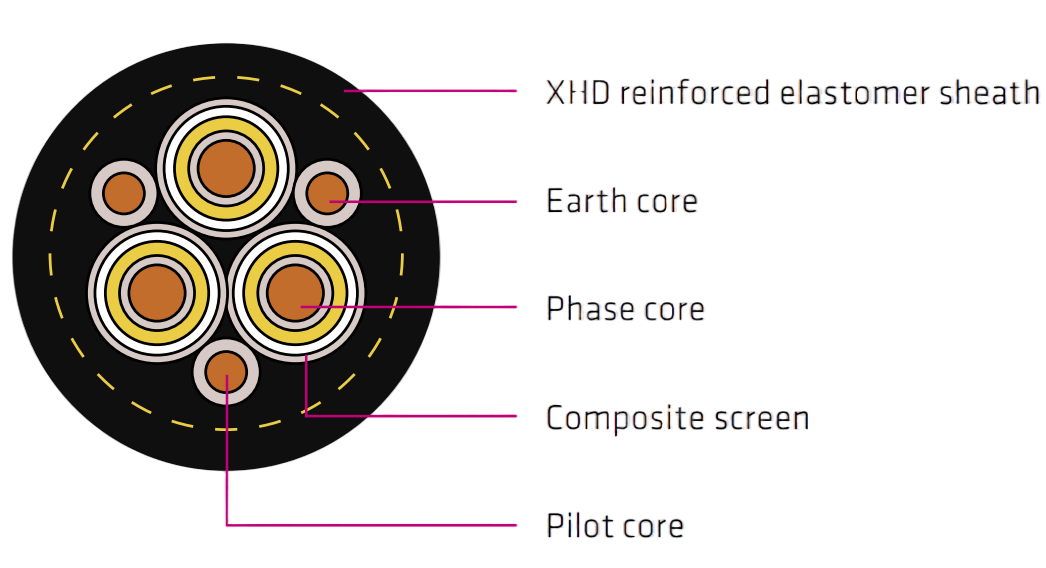

Conductor Material | Tinned copper (three cores plus two earths and one pilot) |
Insulation | EPR (XR-EP-90) semiconductive elastomer screened |
Screen | Composite screen of tinned annealed copper wire and polyester yarn under semiconductive tape |
Core Colours | Red, White, Blue with braid tracers |
Earth Conductors | Two semiconductive elastomer-covered tinned annealed copper wire earths located in cable interstices |
Pilot Conductors | One elastomer-covered tinned annealed copper wire pilot conductor located in cable interstices |
Sheath | Extra heavy-duty XHD-85-PCP with polyaramid braid reinforcement |
Maximum Operating Temperature | +90 °C |
Minimum Operating Temperature | -25 °C |
Flexibility | Flexible |
Chemical Resistance | Very good — suitable for frequent chemical exposure |
Mechanical Impact Resistance | Heavy duty |
Water Resistance | Suitable for immersion and temporary water coverage |
UV and Weather Resistance | Suitable for direct solar radiation and outdoor exposure |

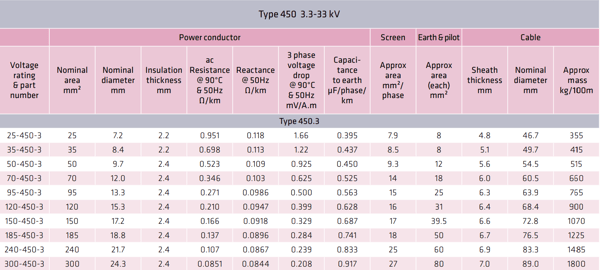

Physical & electrical characteristics
Type 450.3

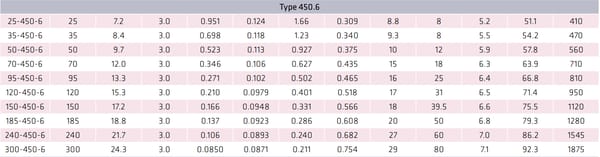

Type 450.6

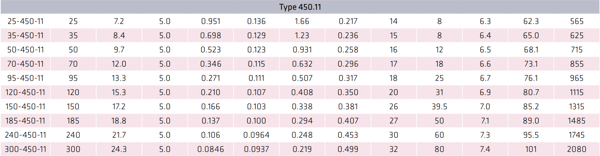

Type 450.11

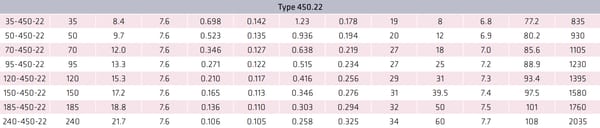

Type 450.22
Type 450 is a Class 1 composite screened cable designed in accordance with AS/NZS 2802 standards for general purpose slow reeling and trailing applications. Rated from 3.3/3.3 kV up to 33/33 kV, it is ideal for use with draglines, shovels, excavators, wharf cranes, and various materials handling equipment. This flexible and heavy-duty cable features metal-screened power cores with two earth cores and one pilot core, delivering robust performance and durability in harsh mining environments.
Product Features
Wide Voltage Range: Suitable for 3.3/3.3 kV up to 33/33 kV applications, supporting various heavy mining and materials handling equipment.
Durable Construction: Metal-screened composite power cores combined with flexible earth and pilot conductors.
Heavy-Duty Sheath: Extra heavy-duty XHD-85-PCP sheath with polyaramid braid reinforcement for excellent mechanical protection.
Flexible Design: Optimized for slow reeling and trailing operations with high resistance to abrasion, weathering, and mechanical impacts.
Fire Retardant: Complies with AS/NZS 2802 standards for flame and fire retardance.
Application Areas

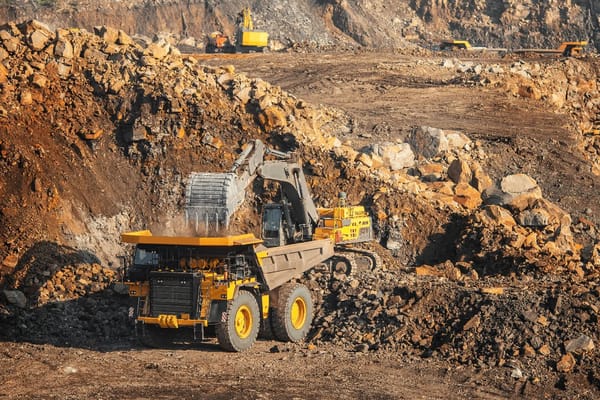

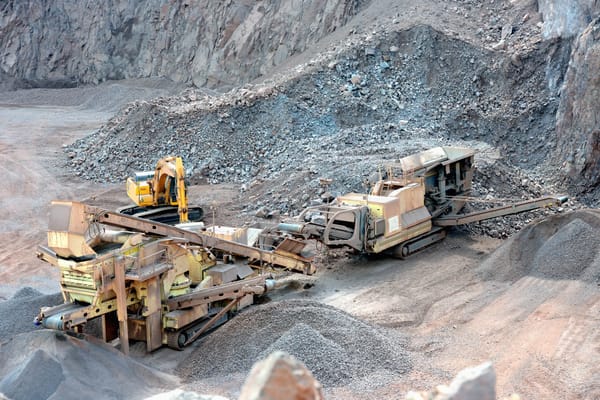

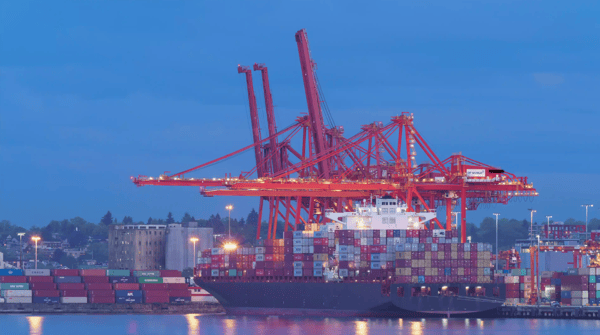

Ideal for use with draglines, shovels, excavators, wharf cranes, and materials handling equipment requiring flexible and durable reeling and trailing cables.
Quality Certifications
AS/NZS 2802
Installation and Maintenance
Suitable for installation in free air and on mobile equipment. Follow AS/NZS guidelines and conduct regular inspections to maintain cable performance and integrity.
Customization Services
Polyaramid braid reinforcement and custom cable lengths available upon request to meet specific project requirements.
Contact Us
For quotations, detailed technical datasheets, and custom mining cable solutions, please contact our sales or technical teams.
