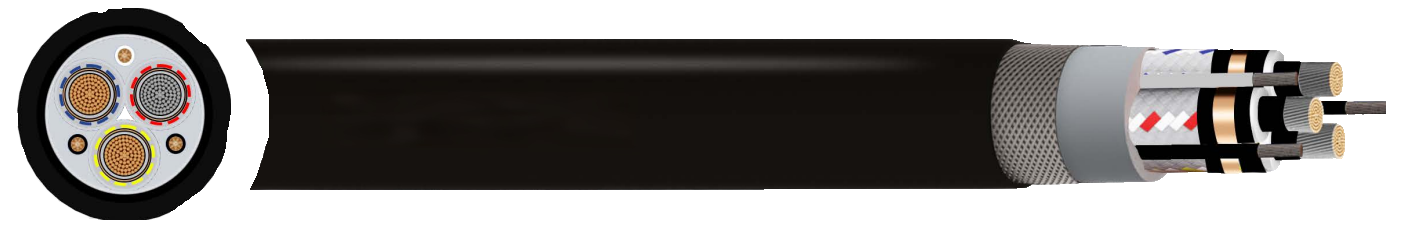

Type 450 Multi-Core Mining Cable
Flexible copper screened cable with two earth and one pilot core for draglines
$120.00
APPLICATION For power supply to a wide range applications. For use where two earth and one pilot cores are required. For power supply to draglines and slow reeling applications where copper screened cables are required. Other industrial applications |
CHARACTERISTICS Voltage Rating Type 450.3 - 3.3kV Type 450.6 - 6.6kV Type 450.11 - 11kV Type 450.22 - 22kV Type 450.33 - 33kV Temperature Rating -25℃ to +90℃ |
CONSTRUCTION
Conductor
Tinned annealed copper wires
Conductor Screen
Semi-conductive tape + thermosetting compound
Insulation
EPR (Ethylene Propylene Rubber) type XR-EP-90
Insulation Screen
Semi-conductive thermosetting compound
Screen
Tinned copper/polyamide braid
Cable Assembly
Three screened power, two earth and one pilot core laid up with right hand direction on the rubber centre filler
Sheath
Double layer HD-PCP (Heavy Duty Polychloroprene) - extra heavy duty, oil resistant and flame retardant.
An open braid of polyamide yarns between layer of rubber
Sheath Colour
● Black
STANDARDS
AS/NZS 2802: 2000, AS/NZS 1125:2001, AS/NZS 2802:2003, Water resistant
Flame retardant,
UV, sunlight, ozone resistant
Oil resistant
