Type 455 Mining Cable – AS/NZS 2802 Semi-Conductive Screened Reeling Cable, 3.3–11kV
Heavy-Duty Cable Without Composite Insulation Screen, Kevlar® Reinforced Sheath, Fire-Retardant Design for Excavators & Wharf Cranes
$10.00
Technical Specifications
Parameter | Description |
|---|---|
Cable Type | Class 1 Semiconductive Screened Reeling and Trailing Cable |
Applicable Standards | AS/NZS 2802 |
Rated Voltage | 3.3/3.3 kV to 11/11 kV |

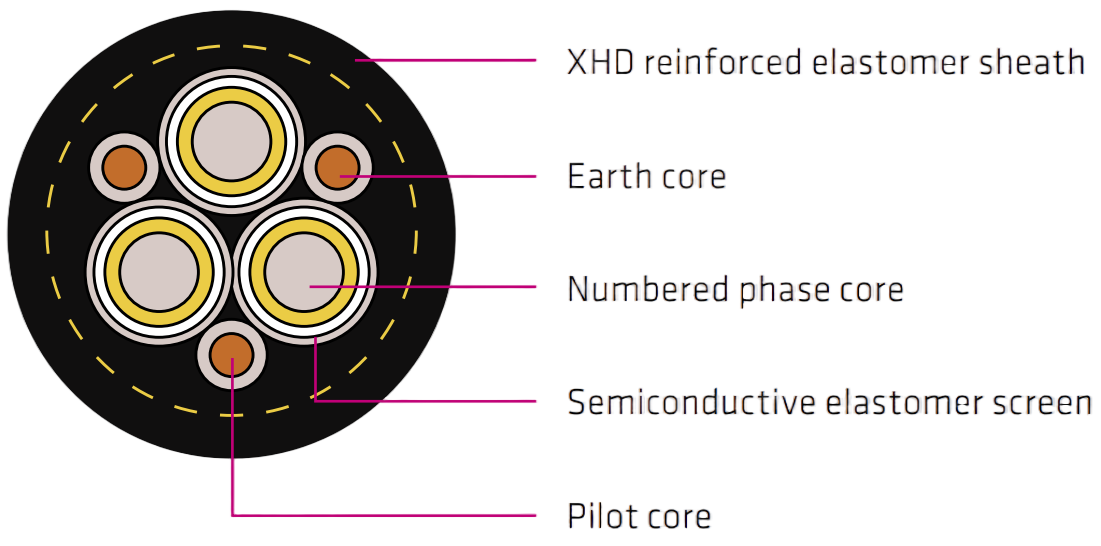

Conductor Material | Tinned copper (three cores plus two earths and one pilot) |
Insulation | EPR (XR-EP-90) semiconductive elastomer screened, with numbered cores |
Screen | Semiconductive elastomer screen |
Core Colours | Red, White, Blue |
Earth Conductors | Two semiconductive elastomer-covered earth cores located in cable interstices |
Pilot Conductors | One elastomer-covered pilot conductor located in cable interstices |
Sheath | Extra heavy-duty XHD-85-PCP with Kevlar® polyaramid yarn braid reinforcement |
Maximum Operating Temperature | +90 °C |
Minimum Operating Temperature | -25 °C |
Flexibility | Flexible |
Mechanical Impact Resistance | Heavy duty |
Water Resistance | Suitable for immersion and temporary water coverage |
UV and Weather Resistance | Suitable for direct solar radiation and outdoor exposure |
Physical & electrical characteristics

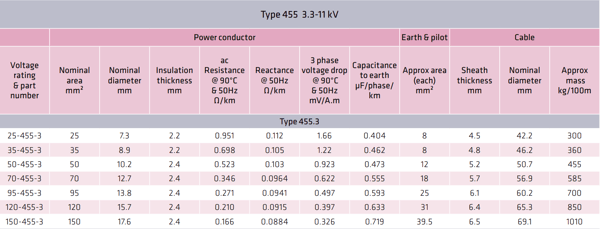

Type 455.3

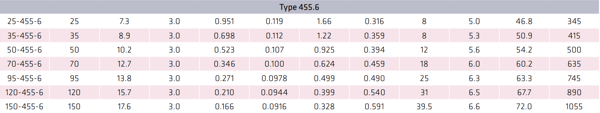

Type 455.6

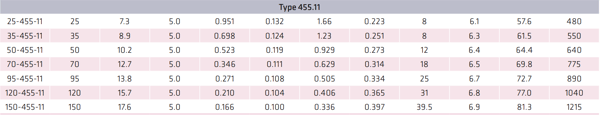

Type 455.11
Type 455 is a Class 1 semiconductive screened cable designed to AS/NZS 2802 standards for general-purpose mining applications. Rated for 3.3/3.3 kV up to 11/11 kV, this cable is similar to Type 450 but without a composite insulation screen. It is suitable for slow reeling and trailing applications and commonly used with draglines, shovels, excavators, wharf cranes, and materials handling equipment. Featuring a heavy-duty XHD-85-PCP sheath reinforced with Kevlar® polyaramid yarn braid, it offers excellent flexibility and mechanical protection in harsh environments.
Product Features
Similar to Type 450 without Composite Insulation Screen: Offers a cost-effective option for slow reeling and trailing applications.

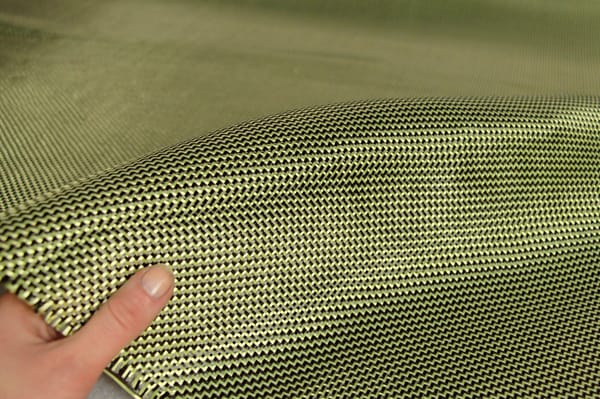

Heavy-Duty Reinforced Sheath: Extra heavy-duty XHD-85-PCP sheath with Kevlar® braid for exceptional tear and cut-through resistance.
Semiconductive Elastomer Screened Cores: Provides electrical stability with two earth cores and one pilot conductor.
Flexible and Durable: Suitable for use with heavy mining equipment in harsh environmental conditions.
Fire Retardant: Meets AS/NZS 2802 fire retardant standards.
5. Application Areas

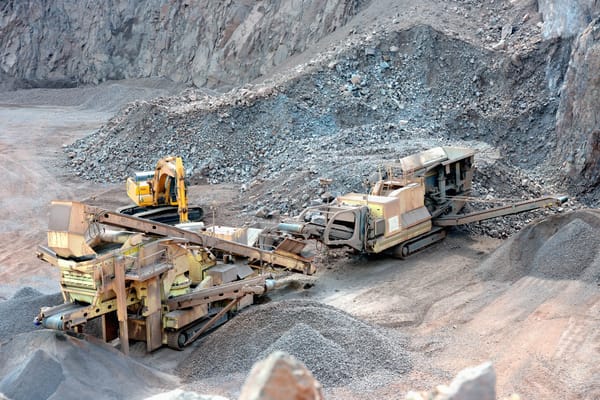

Ideal for slow reeling and trailing applications in mining with equipment such as draglines, shovels, excavators, wharf cranes, and materials handling machinery.
6. Quality Certifications
AS/NZS 2802
7. Installation and Maintenance
Suitable for free air installation and use on mobile equipment. Installation should conform with AS/NZS standards, with periodic inspections to maintain cable condition.
8. Customization Services
Kevlar® reinforced braid sheath and custom cable lengths are available upon request to adapt to specific project needs.
10. Contact Us
For quotations, detailed datasheets, and customized mining cable solutions, please contact our sales or technical teams.
