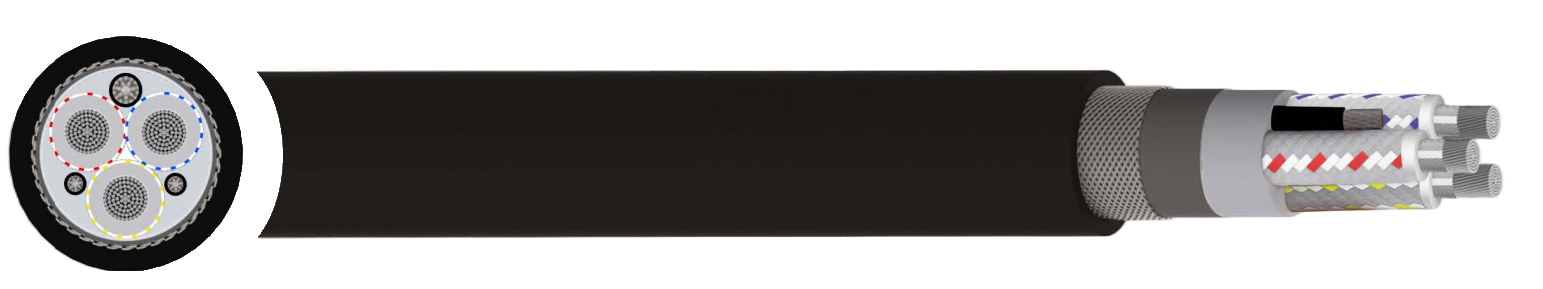

Type 611/611-ECC Heavy Mining Cable - 6.35/11 kV
Engineered for section feeders, draglines and portable mining apparatus
$40.00
STANDARDS
SANS 1520-2, SANS 1411-1, SANS 1411-3
UV resistant
Sunlight resistant Oil resistant
APPLICATION
For mining machinery and portable apparatus including those in hazardous areas, including section feeders, medium sized draglines, shovels and drills.
CHARACTERISTICS
Voltage Rating Uo/U
6.35/11 kV
Temperature Rating
-25°C to +90°C
Minimum Bending Radius
9 x Overall Diameter
CONSTRUCTION
Conductor
Class 5 flexible stranded tinned annealed Copper
Insulation
EPR (Ethylene Propylene Rubber) thermosetting compound and a strippable semi-conducting core screen (triple extruded)
Braid
Nylon /Tinned copper wires
Pilot Cores
Insulated with EPM (Ethylene Propylene Monomer)
Lay
Each power core individually screened with tinned copper/textile braid, laid up three insulated pilot cores
ECC Variant
One pilot core replaced with tinned conductor
Inner Sheath
CR (Polychloroprene Rubber)
Reinforcement braid
Open nylon braid - minimum 16 strings
Outer Sheath
CR (Polychloroprene Rubber)
Sheath Colour
● Black
