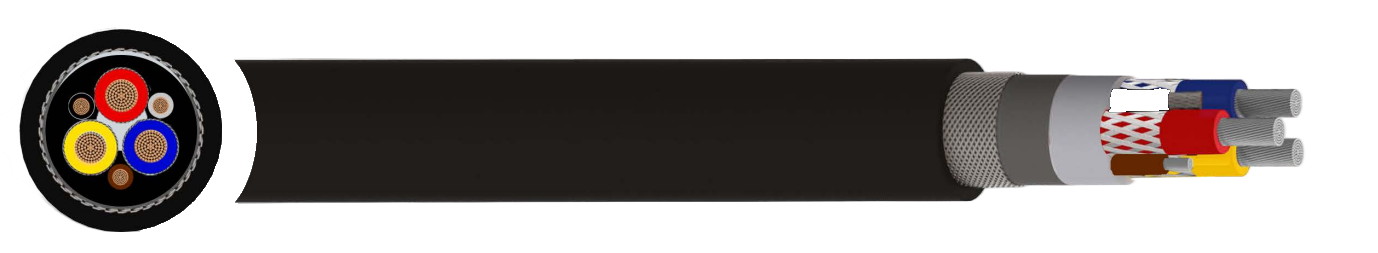

Type 61A Industrial Power Cable
Flexible connectivity for portable machinery in demanding environments
$12.00
APPLICATION
Connection for portable electrical equipment and machinery, including those used in hazardous areas, for reeling /nonreeling applications.
STANDARDS
SANS 1520-1, SANS 1411-1, SANS 1411-3, ICEA S-75-381 Tab. 3-3
UV resistant
Ozone resistant Sunlight resistant Oil resistant
CHARACTERISTICS
Voltage Rating Uo/U 640/1100V
Temperature Rating
-25°C to +90°C
Minimum Bending Radius
6 x Overall Diameter
CONSTRUCTION
Conductor
Class 5 flexible stranded tinned annealed Copper
Insulation
EPR (Ethylene Propylene Rubber) thermosetting compound
Braid
Nylon /Tinned copper wires
Pilot Core
Lay
Three tinned copper/nylon braid screened power cores and one unscreened pilot core laid up in the right hand lay around rubber (RD1) filler centre
Inner Sheath
CR (Polychloroprene Rubber)
Reinforcement braid
Open nylon braid - minimum 16 strings
Outer Sheath
TPU (Thermoplastic Polyurethane)
Sheath Colour
● Black or
Transparent with orange silver reflective tape under
