Type G-GC Three-Conductor Flat Portable Power Cable 2kV

These flat parallel cables are designed for use on AC mining equipment, such as A.C. shuttle cars, drills, cutting and loading machines.

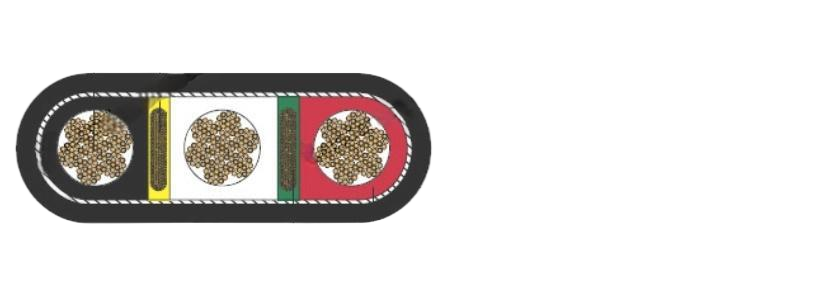

Construction

Conductors	Stranded annealed tinned copper conductor.
Insulation	Ethylene Propylene Rubber (EPR).
Ground Check Conductor	Tinned copper conductor with a yellow insulation.
Grounding Conductor	Tinned copper conductor with an optional green outer covering.
Reinforcement	Synthetic yarn.
Jacket	Reinforced heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.)

Options

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
