Type G-GC Three-Conductor Round Portable Power Cable 2kV

These cables are suitable for use with mobile mining equipment such as continuous miners, drills, cutters, loading machines, AC shuttle cars and pumps. Type G-GC is for applications where grounding conductors and a ground check conductor are required

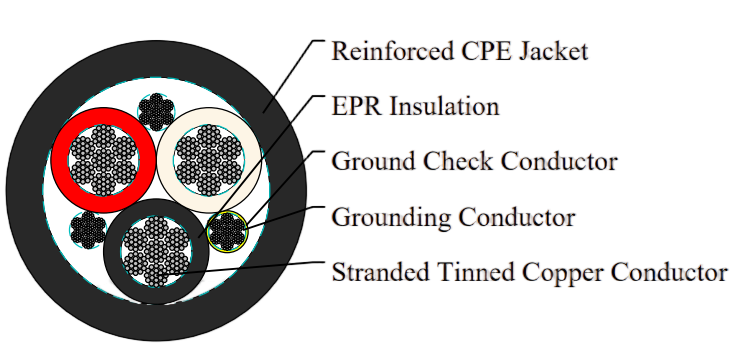

Construction

Conductors	Stranded annealed tinned copper conductor.
Insulation	Ethylene Propylene Rubber (EPR).
Ground Check Conductor	Tinned copper conductor with a yellow polypropylene insulation.
Grounding Conductor	Tinned copper conductor with an optional green outer covering.
Jacket	Reinforced heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.)

Options

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
