Type MP-GC Three-Conductor Mine Power Feeder Cable 5kV with CPE Jacket | Mine Distribution Systems | ICEA Standards

Discover Type MP-GC three-conductor mine power feeder cable 5kV with CPE jacket for mine distribution systems. ICEA certified, suitable for ducts, conduits, and direct burial in wet/dry locations. View specifications and ampacity ratings.

hongjing.Wang@Feichun

11/7/20256 min read

I. Introduction & Product Overview

Brief Description of Type MP-GC Cable Design

The Type MP-GC Three-Conductor Mine Power Feeder Cable is a specialized electrical cable designed for use in the demanding environments of underground mining operations. Featuring a 5kV voltage rating, this cable is engineered to provide efficient and reliable power distribution across mining systems, from surface to underground installations. The three-conductor design allows for optimal current-carrying capacity, with each conductor being robustly insulated to prevent damage and ensure safe operation.

Primary Application in Underground Mine Power Distribution Systems

The Type MP-GC cable is primarily used in mine power distribution systems, which are responsible for supplying electrical power to various mining equipment and machinery. It connects power sources to machines such as drills, conveyors, pumps, and crushers. Its rugged construction and high voltage rating make it ideal for powering equipment in areas with constant vibration, moisture, and extreme temperature fluctuations, commonly found in underground mining environments.

Key Benefits and Reliability for Mining Operations

Mining operations demand high-performance cables that can withstand harsh conditions. The Type MP-GC cable offers several key benefits:

Durability: It is designed to resist mechanical stresses, abrasion, and impacts.
Safety: With insulation and shielding systems that mitigate risks like short circuits or electrical faults.
Adaptability: Capable of being installed in a variety of environments including ducts, conduits, and directly buried in wet or dry locations.
Performance: The cable maintains its functionality under extreme temperatures, ensuring consistent performance in critical applications.

Voltage Rating: 5kV Specification Overview

The Type MP-GC cable has a voltage rating of 5kV, making it suitable for power distribution in medium-voltage mining applications. This rating ensures that the cable can handle high-voltage power without compromising safety or performance, delivering electrical power reliably over long distances in challenging mining conditions.

II. Applications & Installation Options

Mine Distribution System Connections

The Type MP-GC three-conductor mine power feeder cable plays a pivotal role in connecting the power supply to the equipment in a mine’s electrical system. It is used to supply power to electrical panels, distribution boards, and machinery that are critical to the operation of mining operations. Its flexibility and resilience make it a trusted solution for reliable power distribution across various parts of a mine.

Installation Methods

Type MP-GC cables are versatile in terms of installation options. Depending on the specific mine layout and environmental conditions, the cable can be installed through several methods:

Duct and Conduit Installation: Cables are often installed in protective ducts or conduits to shield them from external damage, moisture, and chemical exposure. This installation method is commonly used in more controlled or above-ground mining environments.
Open Air Installation: In some cases, the cable is installed in open air, particularly where there is no risk of physical damage or extreme weather conditions. This is more common for surface mining operations.
Direct Burial in Wet Locations: The Type MP-GC cable is designed for use in wet environments where water could pose a risk to electrical systems. The cable’s construction allows it to be safely buried in wet ground, making it ideal for submerged or moisture-prone areas in mines.
Direct Burial in Dry Locations: It is also suitable for installation in dry environments, providing long-lasting protection and power delivery without the need for additional shielding.

Suitability for Various Mining Environments

The Type MP-GC cable is engineered to be versatile and highly adaptable to a wide range of mining environments. Its rugged design ensures it can perform in extreme underground conditions, including high humidity, temperature fluctuations, and exposure to chemicals. It is also resistant to physical abrasion, making it suitable for the high-impact conditions often found in mining tunnels and shafts.

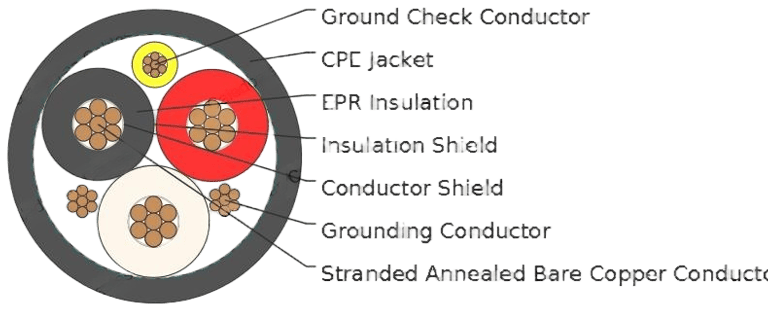

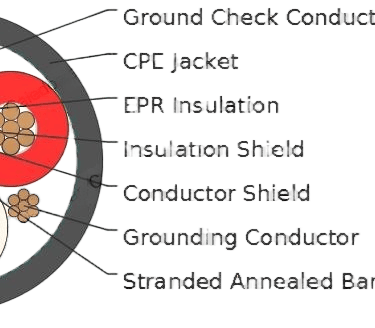

III. Technical Specifications & Construction

Conductor Composition and Stranding

The conductors of the Type MP-GC cable are made from high-quality copper, providing excellent conductivity. Copper is a reliable and widely used material for electrical cables due to its low resistance and ability to carry significant electrical current. The stranding of the conductors is designed to provide flexibility, allowing for easy installation in complex mining environments without compromising on performance.

Conductor Shielding System

To prevent electrical interference and ensure reliable power delivery, the Type MP-GC cable incorporates a conductor shielding system. This shielding prevents external electromagnetic interference (EMI) from affecting the cable’s operation, ensuring that it delivers clean, uninterrupted power to mining equipment.

EPR (Ethylene Propylene Rubber) Insulation Properties

The insulation used in the Type MP-GC cable is made from Ethylene Propylene Rubber (EPR). EPR insulation is known for its excellent electrical properties, high-temperature resistance, and ability to withstand harsh chemical environments. This makes it an ideal choice for use in underground mines where cables are exposed to chemicals, oils, and high temperatures.

Insulation Shielding with Conducting Layer and Copper Tape

The insulation is further enhanced with a conducting layer and copper tape. This additional shielding improves the cable’s ability to resist electrical faults and helps maintain the integrity of the insulation even in high-voltage environments. It also enhances the cable’s overall durability by providing an extra layer of protection against mechanical damage.

Ground Check Conductor (Yellow Polypropylene Insulation)

The Type MP-GC cable includes a ground check conductor with yellow polypropylene insulation. This conductor provides an essential safety feature by allowing operators to easily verify the grounding of the cable and reduce the risk of electrical hazards. The yellow color makes it easy to distinguish from other conductors during installation and maintenance.

Grounding Conductor (Tinned Copper)

The grounding conductor is made from tinned copper, ensuring high conductivity and corrosion resistance. Tinned copper is often preferred for its ability to maintain performance in harsh environments, such as those found in underground mining operations, where humidity and corrosive substances are common.

CPE (Chlorinated Polyethylene) Jacket Features and Benefits

The outer jacket of the Type MP-GC cable is made from Chlorinated Polyethylene (CPE), a material known for its outstanding resistance to abrasion, oil, and chemicals. The CPE jacket also provides excellent protection against physical damage and environmental stresses. Additionally, it is resistant to UV radiation, ensuring the cable's durability even when exposed to sunlight.

white car on brown mountain during daytime

IV. Performance Characteristics

Maximum Conductor Operating Temperature: 90°C

The Type MP-GC cable is designed to operate efficiently at a maximum conductor temperature of 90°C. This temperature rating ensures that the cable can handle the heat generated by high-power electrical loads without risk of overheating or damage to the insulation.

Minimum Bending Radius: 12×OD

The minimum bending radius for the Type MP-GC cable is 12 times the outer diameter (OD) of the cable. This specification ensures that the cable can be bent and maneuvered during installation without damaging the internal conductors or insulation.

Thermal Properties and Heat Dissipation

The cable's construction is optimized for heat dissipation, allowing it to operate in environments where heat buildup is a concern. The insulation and shielding systems effectively manage thermal conditions, ensuring the cable remains safe and functional even under continuous load.

Mechanical Durability for Demanding Mine Environments

The Type MP-GC cable is built to withstand the harsh mechanical stresses encountered in mining environments. Its tough outer jacket and reinforced insulation protect the internal conductors from damage caused by impact, abrasion, and vibration.

V. Size Range & Ampacity Ratings

Conductor Sizes from 3×6 AWG to 3×500 kcmil

The Type MP-GC cable is available in a wide range of conductor sizes, from 3×6 AWG to 3×500 kcmil, making it versatile for various power distribution needs. The larger conductor sizes are ideal for high-power applications, while smaller sizes are suitable for less demanding systems.

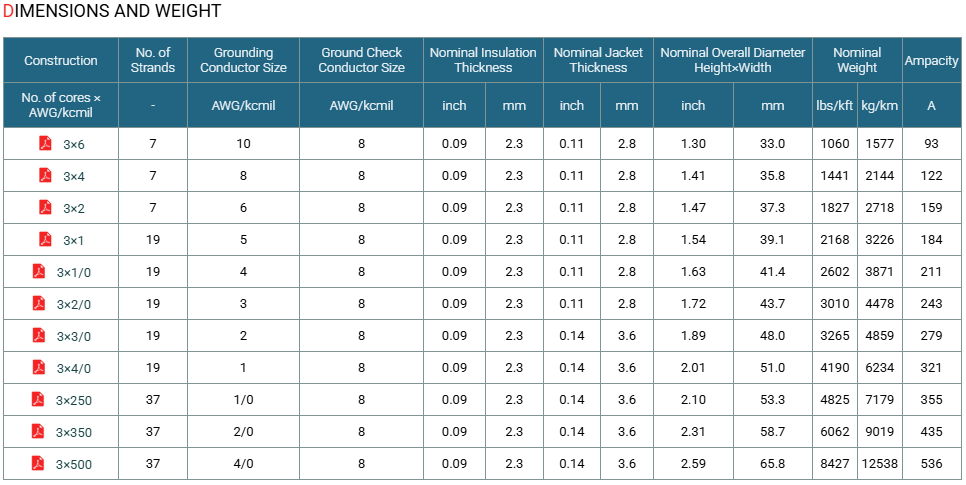

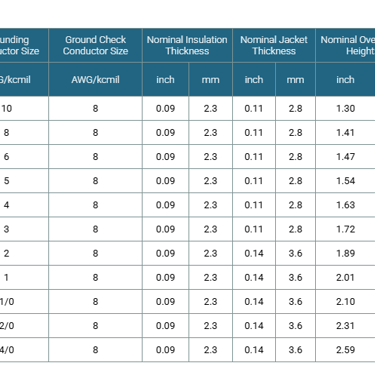

Ampacity Ratings Table (93A to 536A)

The ampacity ratings of the Type MP-GC cable range from 93A to 536A, depending on the conductor size and installation conditions. These ratings are crucial for ensuring that the cable can carry the required current without overheating or causing damage to the electrical system.

Weight Specifications per Conductor Size

The weight of the Type MP-GC cable varies depending on the conductor size, with larger cables being heavier due to the increased copper content and thicker insulation layers.

Overall Diameter and Dimensional Specifications

The overall diameter and dimensional specifications of the Type MP-GC cable are designed to ensure easy handling and installation. The dimensions are optimized for compatibility with common conduit and duct sizes used in mining installations.

yellow and white excavator on rocky mountain during daytime

VI. Standards Compliance & Certification

ICEA S-75-381/NEMA WC 58 Compliance

The Type MP-GC cable meets ICEA S-75-381 and NEMA WC 58 standards, ensuring it complies with industry requirements for safety, performance, and reliability in mining applications.
