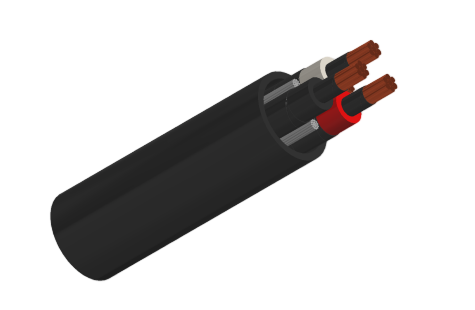

Type MP-GC Three-Conductor Mine Power Feeder Cable, CPE Jacket, 5kV
These cables are designed for connections between units of mine distribution systems, suitable for installed in duct, conduit or open air and for direct burial in wet and dry locations.

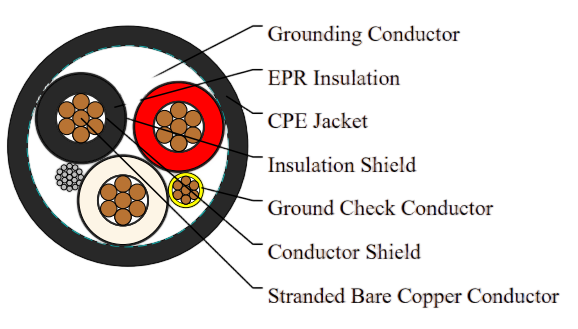

Construction
Conductors | Stranded annealed bare copper conductor. |
|---|---|
Conductor Shield | Conducting layer. |
Insulation | Ethylene Propylene Rubber (EPR). |
Insulation Shield | Conducting layer + copper tape. |
Ground Check Conductor | Copper conductor with a yellow polypropylene insulation. |
Grounding Conductor | Tinned copper conductor |
Jacket | Chlorinated Polyethylene (CPE), black. |
Options
Other jacket materials such as CSP/PCP/NBR/PVC/TPU are available upon request.
Mechanical and Thermal Properties
Minimum Bending Radius | 12×OD |
|---|---|
Maximum Conductor Operating Temperature | +90℃ |
