Type SHD-GC Three-Conductor Round Portable Power Cable, CPE Jacket 2kV
These heavy duty cables are designed for applications such as longwall shearers, continuous miners, loaders, drills, conveyors, pumps and mobile equipment where grounding conductors, a ground check conductor and metallic shielding are required.

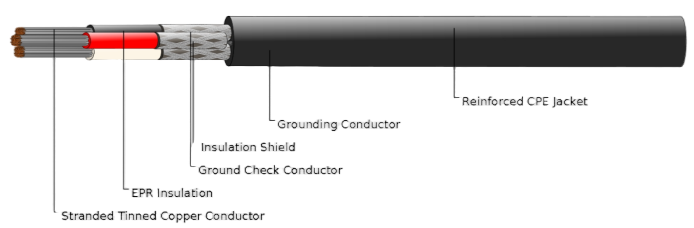

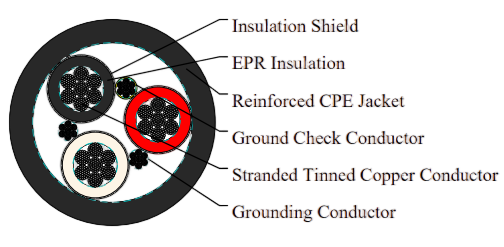

Construction
Conductors | Stranded annealed tinned copper conductor. |
|---|---|
Insulation | Ethylene Propylene Rubber (EPR). |
Insulation Shield | Tinned copper/textile braid. |
Ground Check Conductor | Tinned copper conductor with a yellow polypropylene insulation. |
Grounding Conductor | Tinned copper conductor. |
Jacket | Reinforced extra-heavy-duty Chlorinated Polyethylene (CPE), black. |
Options
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Mechanical and Thermal Properties
Minimum Bending Radius | 6×OD |
|---|---|
Maximum Conductor Operating Temperature | +90℃ |
