Type SHD-GC Three-Conductor Round Portable Power Cable, CPE Jacket 8kV

These heavy duty cables are designed for applications such as longwall shearers, continuous miners and mobile equipment such as shovels, dredges and drills.

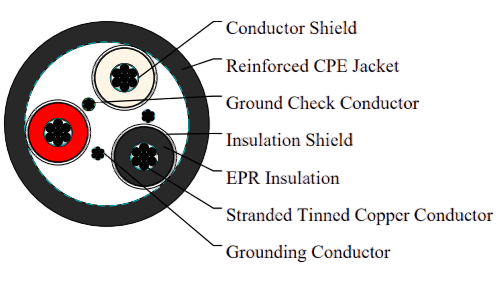

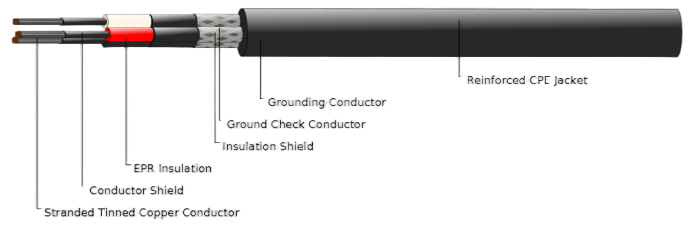

Construction

Conductors	Stranded annealed tinned copper conductor.
Conductor Shield	Conducting layer.
Insulation	Ethylene Propylene Rubber (EPR).
Insulation Shield	Conducting tape + Tinned copper/textile braid.
Ground Check Conductor	Tinned copper with a yellow polypropylene insulation.
Grounding Conductor	Tinned copper conductor.
Jacket	Reinforced extra-heavy-duty Chlorinated Polyethylene (CPE), black.

Options

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
