Type SHD-PCG Three-Conductor Round Portable Power Cable 5kV

These heavy duty cables are designed for use on longwall shearers, where three shielded power conductors, three unshielded control conductors, and a grounding conductor are required.

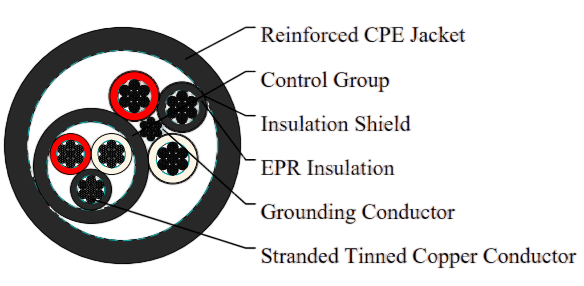

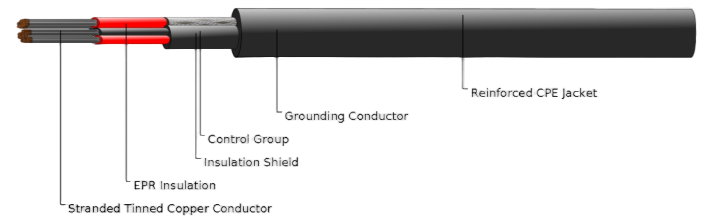

Construction

Conductors	Stranded annealed tinned copper conductor.
Insulation	Ethylene Propylene Rubber (EPR).
Insulation Shield	Tinned copper/textile braid.
Control Group (3 Conductor)	Tinned copper conductor, EPR insulation and thermosetting jacket.
Colour of insulation	Black, white and red.
Grounding Conductor	Tinned copper conductor, located in the center of the cable.
Jacket	Reinforced extra-heavy-duty Chlorinated Polyethylene (CPE), black.

Options

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
