Type SHD Three-Conductor Flat Portable Power Cable 2kV
These flat parallel cables are designed for use on continuous miners requiring grounding conductors and metallic shielding over each conductor.

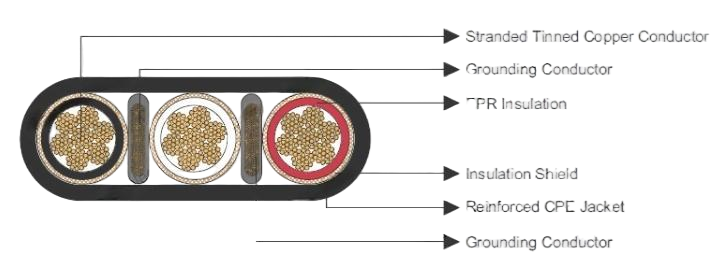

Construction
Conductors | Stranded annealed tinned copper conductor. |
|---|---|
Insulation | Ethylene Propylene Rubber (EPR). |
Insulation Shield | Tinned copper/textile braid. |
Grounding Conductor | Tinned copper conductorcovered with a conducting extrusion layer. |
Jacket | Reinforced extra-heavy-duty Chlorinated Polyethylene (CPE), black. |
Options
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Mechanical and Thermal Properties
Minimum Bending Radius | 6×OD |
|---|---|
Maximum Conductor Operating Temperature | +90℃ |
