U-1000 ARVFV
Cable
Application and Description
With a sheath and armor, U-1000 ARVFV is an enhanced version of the cables and U-1000 AR2V. They can be used in all industrial installations requiring mechanical protection.
These cables can be provided in hard and SH C1 (NF C 32-323) and HR (resistant to aliphatic hydrocarbons). The design and characteristics of the materials comply with IEC 60502-1.
Standard and Approval
XP C 32-322

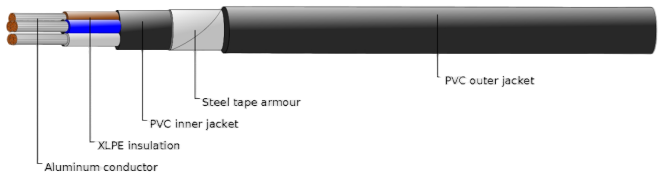

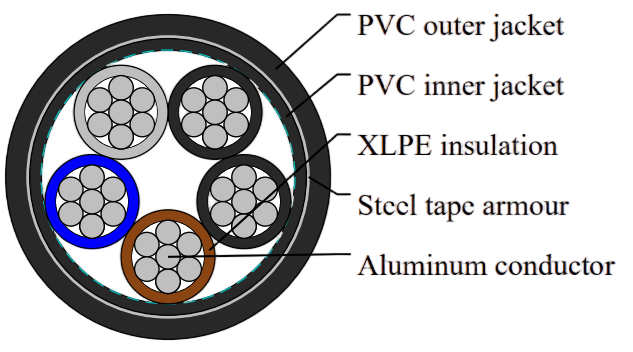

Cable Construction
Aluminum conductor
Strands to IEC 60228 class 2
XLPE insulation according to XP C 32-321
Color codes to HD 308 S2(XP C32-321)
Not fibrous and not hygroscopic filler(only for multicore cables)
PVC inner jacket
Two steel tapes helically wraped armour
Flexible black PVC outer jacket
Technical Characteristics
Working Voltage : 600/1000 volts
Test voltage : 3500 volts
Minimum bending radius : 10 x Ø
Operation temperature rage : -15 °C to 90 °C
Short-circuit temperature : 250 °C
Flame retardant : EN 60332-1/NF C 32-070 C2
