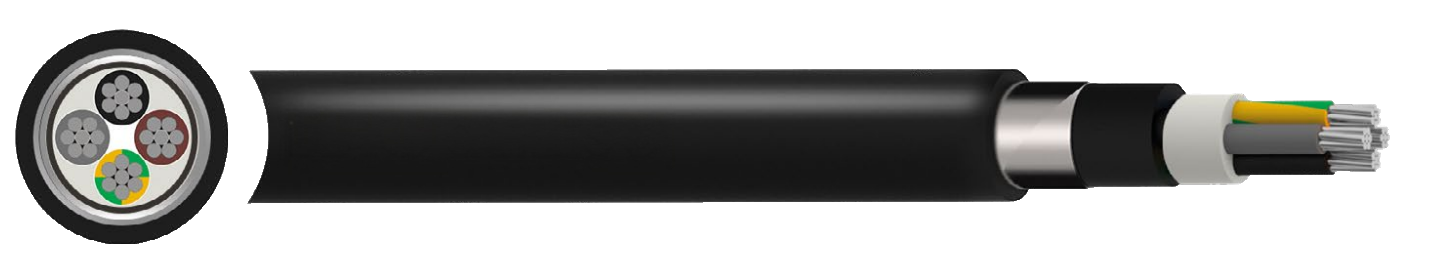

U-1000 ARVFV 0.6/1kV Aluminum Conductor Steel Tape Armored Power Cable

APPLICATION

Distribution power cable for static application, mostly in ground, but also in water, within facilities, in cable canals and in concrete. This cable can be used in electric power plants,  transformer stations, industrial plants, metropolitan networks  and other electric plants. Applied in conditions requiring protection against heavier mechanical damages, but where cables are not exposed to heavier tensile strain.

CHARACTERISTICS

Voltage Rating Uo/U

0.6/1kV

Test Voltage

4kV

Temperature Rating

Operating: -10°C to +60°C

Minimum Bending Radius

Single core: 15 x overall diameter

Multi core: 12 x overall diameter

CONSTRUCTION

Conductor

Class 2 Aluminium

Insulation

XLPE Compound (Cross-Linked Polyethylene)

Bedding

Extruded elastomere or plastomere compound or plastic tape

Armour

Two Galvanised Steel Tapes

Sheath

PVC Compound (Polyvinyl Chloride)

Core Identification

3 core: ● Black ● Brown ● Grey

3 core including earth:  Blue  Brown  Green/Yellow

4 core: ● Blue ● Black ● Brown  Grey

5 core: ● Blue ● Brown ● Black ● Grey ● Black

Sheath Colour

● Black
