U-1000 RVFV
Cable
Application and Description
With a sheath and armor, U-1000 RVFV is an enhanced version of the cables and U-1000 R2V They are suitable for direct burial without extra mechanical protection, fixed to the walls, laid on cable trays or raceways. May also be suitable for use in premises which poses a risk of explosion (rank BE3 NF C 15-100) with mechanical protection is necessary and in this case the intensity must be reduced by 15%.
Standard and Approval
XP C 32-322

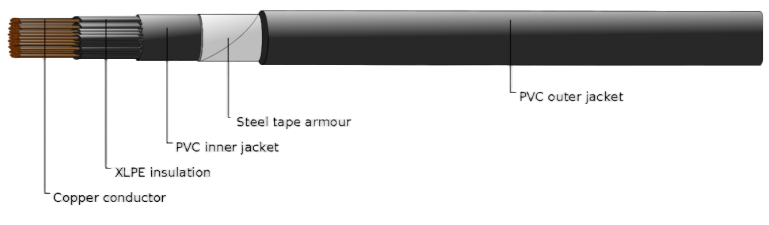

Cable Construction
Flexible copper strands
Strands to IEC 60228 class 2
XLPE insulation according to XP C 32-321
Color codes to HD 308 S2(XP C32-321)
Not fibrous and not hygroscopic filler(only for multicore cables)
PVC inner jacket
Two steel tapes helically wraped armour
Flexible black PVC outer jacket
Technical Characteristics
Working Voltage : 600/1000 volts
Test voltage : 3500 volts
Minimum bending radius : 10 x Ø
Operation temperature rage : -15 °C to 90 °C
Short-circuit temperature : 250 °C
Flame retardant : EN 60332-1/NF C 32-070 C2
