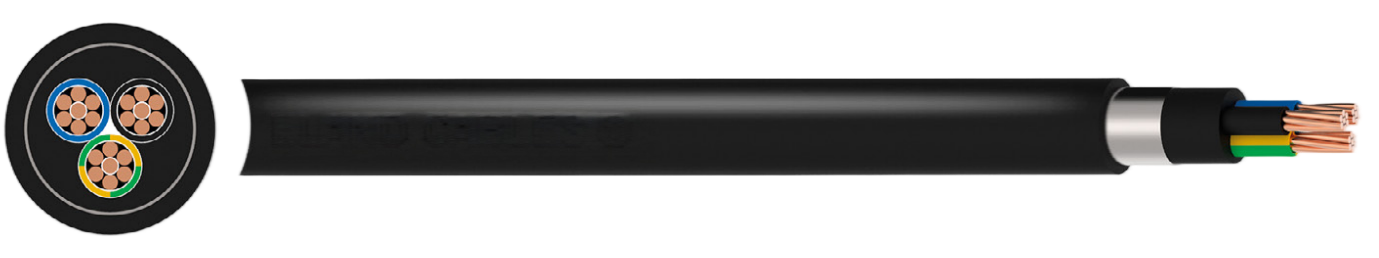

U-1000 RVFV / XAV XLPE PVC 0.6/1kV Cable
Armoured XLPE/PVC copper power cable for direct burial, ducts, and tray installations with reliable mechanical protection
$15.00
APPLICATION
These U-1000 RVFV cables are suitable for direct burial without additional protection or for installation on cable trays or in ducts where mechanical protection is necessary.
CHARACTERISTICS
Voltage Rating Uo/U
0.6/1kV
Temperature Rating
-10°C to +90°C
CONSTRUCTION
Conductor
1.5mm² to 4mm²: Class 1 solid copper conductor*
6mm² and above: Class 2 stranded copper conductor
*Class 2 stranded conductor available for these sizes on request
Insulation
XLPE (Cross-Linked Polyethylene)
Inner Sheath
PVC (Polyvinyl Chloride)
Armour
Two steel tapes
Sheath
PVC (Polyvinyl Chloride)
Core Identification
2 core: Blue Brown
3 core: Black Grey
3 core including earth:
Sheath Colour
● Black
Other colours available on request
