Underground Mining Cables Australia: Proven Cable Models for WA Gold Mines, QLD Coal Operations and Major Tunnel Projects

Why Underground Mining Cable Selection Is a Critical Decision for Australian Mining Operations

Underground mining in Australia demands some of the toughest cable performance standards anywhere in the world.

Across Western Australia’s goldfields, Queensland’s underground coal basins, and major tunnel infrastructure developments throughout New South Wales and Victoria, electrical systems are expected to deliver uninterrupted power under extreme mechanical, environmental and operational stress.

For procurement managers, mine electrical engineers, EPC contractors and maintenance supervisors, underground mining cable selection is no longer a routine purchasing decision.

It is a strategic engineering choice that directly impacts:

production continuity
equipment reliability
worker safety
maintenance scheduling
asset lifecycle cost
regulatory compliance

Unlike standard industrial installations, underground mining cable systems are exposed to relentless dynamic movement, severe abrasion, crushing risk, hydraulic contamination, moisture ingress, confined installation pathways and constant mechanical fatigue.

Selecting the wrong cable often leads to:

premature sheath cracking
conductor fatigue
insulation breakdown
twisting deformation
unexpected shutdowns
higher maintenance intervention rates

For Australian underground operations running 24/7 production schedules, even a single cable failure can trigger costly downtime.

This is why specialised underground mining cable systems such as TUNNELFLEX-R-PUR HF, PROTOMONT underground reeling cable, TROMMELFLEX-M-PUR, and PROTOMONT FESTOON NTSKCGECWOEU are increasingly specified across demanding underground environments.

This guide explores the full underground cable series, key technical models, Australian operating case examples, and the engineering factors buyers must assess before selecting cable systems for underground mining and tunnelling applications.

Understanding the Real Challenges Facing Underground Mining Cables

Underground mining cable systems face combined electrical and mechanical stresses that surface mining cables rarely encounter.

Australian underground mines create especially severe duty cycles due to deep excavation geometry, narrow declines, continuous mobile equipment operation and abrasive geological conditions.

Typical underground cable stress factors include:

constant bending and flexing
high-cycle reeling
torsional twisting
drag abrasion
impact from machinery
oil and hydraulic fluid exposure
heat cycling
wet and chemically aggressive conditions
restricted bend radius installation
tensile loading

These conditions mean cable performance depends as much on mechanical engineering as electrical conductivity.

A technically suitable underground mining cable must offer:

high conductor flexibility
excellent tensile strength
anti-twist stability
abrasion-resistant outer sheath
oil resistance
fire-safe construction
extended flex cycle endurance

The underground mining cable series documented in the technical file addresses these challenges through highly engineered constructions designed specifically for mobile and dynamic underground environments.

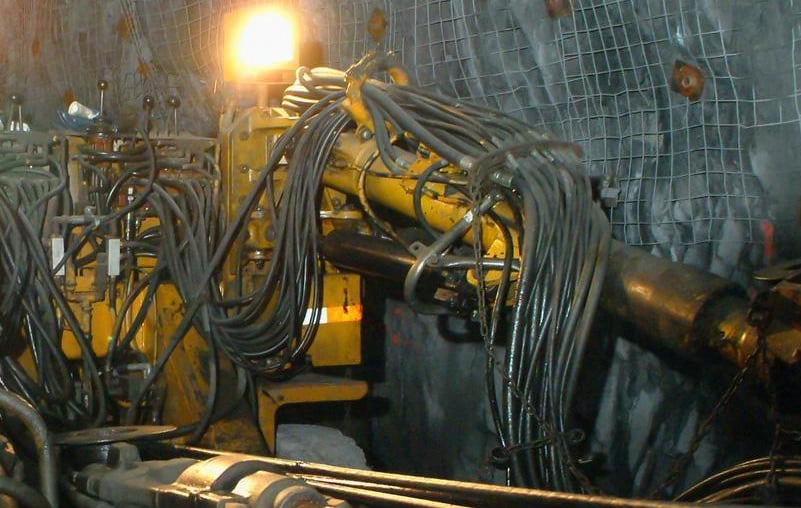

Western Australia Gold Mine Case: Mobile Loader and Decline Reeling Applications

Western Australia’s underground gold sector, particularly across Kalgoorlie, Leonora and the Eastern Goldfields, relies heavily on mobile underground machinery.

Typical powered equipment includes:

load-haul-dump units
jumbo drills
charge-up vehicles
mobile substations
underground pump stations

These operations often involve long declines with steep gradients and tight turning radii.

This creates severe cable handling demands.

A mobile cable may be reeled and unreeled hundreds of times per shift while being dragged across:

rough shotcrete
rock edges
steel supports
wet slurry-covered surfaces

Under these conditions, conventional industrial flexible cable often fails rapidly.

This is where TUNNELFLEX-R-PUR HF 0.6/1kV is particularly effective.

The cable is engineered specifically for dynamic underground mobile applications.

Its construction includes:

fine-stranded flexible copper conductors
special XLPE insulation
high-strength synthetic reinforcement
halogen-free flame-retardant sheath
advanced polyurethane mechanical protection

This provides excellent:

abrasion resistance
tear resistance
anti-twist performance
dynamic flexibility
long service life

The product series includes practical underground configurations such as:

4G10
4G16
3x25+3G6
3x50+3G10
3x70+3G16
3x95+3G16
3x120+3G25
3x150+3G25
3x185+3G35
3x240+3G50

One of the most widely used options for Australian underground loader fleets is:

3x95+3G16

This model delivers approximately 301 A current carrying capacity, making it highly suitable for medium-to-high load mobile mining applications while maintaining practical cable flexibility for repeated reel deployment.

For larger heavy-duty equipment, many operations specify:

3x185+3G35

This supports approximately 461 A, ideal for high-demand underground production fleets.

Queensland Coal Mine Case: Underground Shiftable Power Systems

Queensland’s Bowen Basin underground coal operations create a different cable demand profile.

Coal mines commonly deploy:

mobile transformers
continuous miner systems
panel transfer systems
shiftable substations
underground haulage power supply systems

These systems often rely on festoon-supported cable management rather than direct trailing reels.

This introduces distinct performance requirements:

controlled suspended flexing
high tensile loading
lateral oscillation resistance
long unsupported spans
continuous dynamic movement

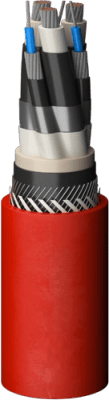

For these environments, PROTOMONT FESTOON NTSKCGECWOEU 3.6/6kV offers a strong technical solution.

It is specifically engineered for underground festoon applications.

Key engineering features include:

high tensile reinforcement
stable suspended mechanical geometry
excellent medium-voltage insulation integrity
oil and ozone resistance
advanced flex endurance
integrated control and communication capability

Available configurations include:

3x25
3x35
3x50
3x70
3x95
3x120
3x150
3x185
3x240

A particularly strong fit for Queensland mobile transformer systems is:

3x120+2x((3x1.5ST)+70/3KON)+1X-(6E9LWL+70/3KON)+6UELKON

This provides approximately 352 A current carrying capacity with integrated control and fibre-optic capability for modern automated underground infrastructure.

This architecture supports both power distribution and intelligent mine monitoring systems.

NSW Tunnel Infrastructure Case: Fire-Safe Cable Selection

Tunnel infrastructure projects across Sydney and regional NSW demand stringent fire performance.

Applications include:

tunnel boring machines
ventilation drives
auxiliary transport systems
temporary construction power
control systems

In enclosed infrastructure environments, cable fire behaviour becomes critical.

Low smoke, halogen-free construction is increasingly mandatory.

TUNNELFLEX-R-PUR HF with control cores addresses these requirements.

A preferred configuration is:

3x70+3G16+2x1.5

This combines:

power conductors
earth conductors
control cores
halogen-free sheath construction

It offers:

excellent fire performance
minimal corrosive gas generation
high flexibility
strong dynamic endurance

This makes it highly suitable for:

metro tunnel boring systems
cross-passage power systems
temporary underground construction networks

Heavy-Duty Underground Reeling Cable for Nickel and Base Metal Mines

Remote underground nickel and base metal operations in WA often place exceptional tensile demands on cable systems.

Large mobile equipment may require:

long reeling lengths
high drum tension
continuous acceleration cycles
frequent directional reversal

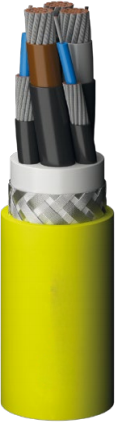

For these applications, PROTOMONT underground reeling cable series offers enhanced mechanical performance.

The series includes constructions such as:

3X25+3X(1.5STKON+16/3KON)+UELKON
3X50+3X(1.5STKON+25/3KON)+UELKON
3X95+3X(1.5STKON+50/3KON)+UELKON
3X120+3X(1.5STKON+70/3KON)+UELKON
3X185+3X(1.5STKON+95/3KON)+UELKON
3X240+3X(1.5STKON+120/3KON)+UELKON

The 3X120 model supports around 352 A, while larger 3X240 constructions support heavy-duty high-load applications.

These cables are optimised for:

mono-spiral reels
cylindrical reels
continuous dynamic flexing
high mechanical shock resistance

TROMMELFLEX-M-PUR: High-Cycle Dynamic Performance

Where cable systems undergo constant repetitive reel cycling, TROMMELFLEX-M-PUR delivers exceptional mechanical endurance.

Applications include:

continuous miners
roadheaders
underground drilling platforms
reel-intensive mobile systems

Engineering features include:

central aramid reinforcement
high-flex copper conductors
XLPE insulation
PUR outer sheath
excellent tensile stability

Representative models include:

3x25+3G6
3x50+3G10
3x70+3G16
3x95+3G16
3x120+3G25+2x1.5
3x150+3G25+2x1.5
3x185+3G35+2x1.5
3x240+3G50+2x1.5

The 3x120+3G25+2x1.5 variant offers approximately 352 A current capacity and tensile strength near 9,000 N, making it highly effective for aggressive underground duty cycles.

Why Australian Procurement Teams Are Moving Toward Halogen-Free Underground Mining Cables

Across Australian underground projects, halogen-free cable adoption is accelerating.

The reasons are operationally significant.

Halogen-free cables reduce:

smoke density
toxic gas generation
equipment corrosion after fire events
visibility impairment during emergency evacuation

For enclosed underground environments, these benefits can significantly improve:

worker evacuation safety
post-incident recovery
asset survivability

This is especially relevant in:

deep decline gold mines
metro tunnel projects
ventilation-constrained underground developments

Key Buying Factors When Selecting Underground Mining Cable

Australian procurement teams should assess:

operating voltage
continuous current load
maximum tensile load
bend radius requirements
dynamic movement frequency
chemical exposure
fire performance requirements
control core integration
fibre optic requirements

Selecting purely on upfront cost often creates significantly higher whole-of-life expenses.

Lifecycle-focused specification typically delivers better long-term ROI.

Common Underground Cable Selection Mistakes

Frequent procurement mistakes include:

underestimating tensile requirements
ignoring torsional loading
specifying oversized cable reducing flexibility
neglecting fire safety requirements
using industrial flexible cable instead of mining-specific dynamic cable
failing to account for reel drum geometry

Avoiding these mistakes dramatically improves cable service life.

Future Trends in Australian Underground Mining Cable Technology

Australian mining operations are moving toward:

automation-ready cable systems
integrated fibre-optic monitoring
lighter high-strength constructions
enhanced fire-safe materials
higher cycle-life dynamic cable designs

Cable selection is increasingly becoming part of digital mine infrastructure planning.

Final Thoughts: Choosing the Right Underground Mining Cable for Long-Term Performance

Underground mining cable performance is directly linked to operational uptime.

Whether supporting:

WA gold production
Queensland coal infrastructure
NSW tunnelling projects
remote underground nickel operations

application-specific underground cable selection is essential.

Proven solutions including:

TUNNELFLEX-R-PUR HF
TROMMELFLEX-M-PUR
PROTOMONT FESTOON NTSKCGECWOEU
PROTOMONT underground reeling cable systems

provide the durability, flexibility and electrical reliability required for demanding Australian underground environments.

For mining procurement professionals, the right cable is not just a component.

It is a long-term operational investment that directly impacts reliability, safety and total project performance.
