(V) NSSHCGEOEU 0.6/1 kV Coal Cutter Cable
Mining Cable Designed for Chain Operation with High Tensile Strength
$10.00
Technical Specifications
Parameter | Description |
|---|---|
Rated Voltage U0/U (Um) | 0.6/1 (1.2) kV |
Test Voltage | 3 kV |
AC Test Voltage (Control Cores) | 2 kV |
Maximum Conductor Temperature | 90 °C |
Max Conductor Temperature at Short Circuit | 250 °C |
Ambient Temperature (Fixed) | –40 °C to +80 °C |
Ambient Temperature (Flexible) | –20 °C to +60 °C |

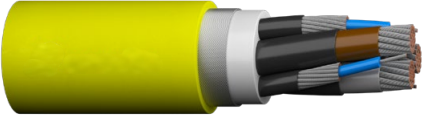

Conductor | Very finely stranded tinned copper conductor, class FS |
Core Configuration | Three main colored cores (Black, Grey, Brown) laid-up with double concentric control/PE conductor in outer interstices; control core color: Blue |
Insulation | EPR rubber with FEICHUN special compound 3GI3 |
Insulation Screen | Semi-conductive NBR easy strip |
Additional Reinforcement | Spinning of steel and copper-tinned wires for mechanical strength |
Outer Sheath | Polychloroprene (PCP), FEICHUN special compound 5GM5 |
Mechanical Properties | Torsional stress ±25°/m; Permanent tensile strength 15 N/mm² |
Bending Radius | 2.3 × diameter at 5 N/mm² permanent tensile strength; 20 × diameter minimum distance with S-type directional changes |

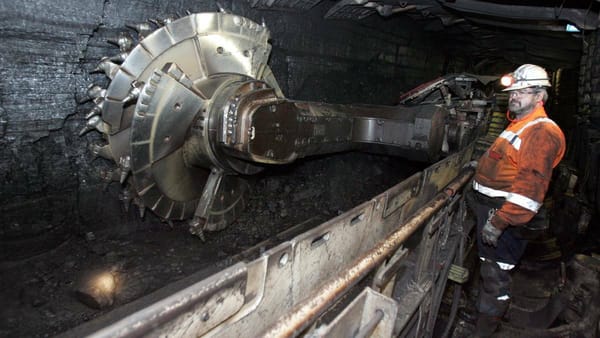

FEICHUN (V) NSSHCGEOEU cable is specially designed as a power supply connection cable for mobile equipment and machinery in underground mining applications, particularly coal cutting machines. It is engineered for use in cable protection chains (cable handlers) that are trailed behind mining machines and absorb tensile forces generated during operation, ensuring reliable power transmission and monitoring capability in harsh mining environments.
Standards and Certifications
DIN VDE 0250-812
DIN EN 60228 / IEC 60228 / VDE 0295
DIN VDE 0298-4
DIN EN 60811-404 / IEC 60811-404
DIN EN 60332-1-2 / IEC 60332-1-2
MA China Certification
Product Features
Concentric Monitoring Conductor: Double concentric control and protective earth conductors enhance monitoring and safety in mining operations.
Robust Mechanical Design: Steel and copper-tinned wire spinning provide excellent tensile strength and resistance to mechanical stresses in chain operations.
Flexible and Durable Insulation: EPR rubber special compounds ensure electrical insulation and resistance against harsh underground conditions.
Wide Operating Temperature Range: Suitable for fixed and flexible installations with temperature ranges from –40 °C to +80 °C.
Strict Compliance: Certified for use in demanding mining environments with compliance to international safety and performance standards.
Application Areas

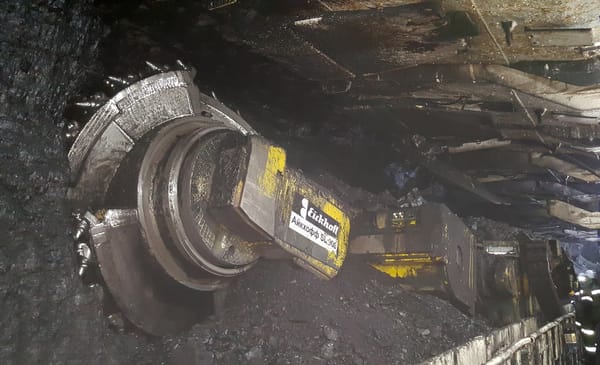

Ideal for power supply to coal cutting machines and mobile equipment in underground mining, designed for use in cable protection chains under tensile loads and harsh conditions.
Installation and Maintenance
Installation according to bending radius guidelines for high tensile applications. Regular inspection recommended to maintain cable integrity under mechanical strain and dynamic movement.
Customization Services
Available with customized conductor sizes, monitoring conductor configurations, lengths, and mechanical reinforcements to suit specific mining operational needs.
