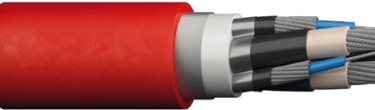

(V) NTSKCGECWOEU I 3/6 KV Coal Cutter Cable – Reliable Power Supply for Underground Mining Machines

Introduction

Underground mining operations demand exceptional reliability from electrical power distribution systems. The harsh environment, extreme mechanical stresses, and safety requirements create unique challenges that standard industrial cables cannot address. Mining equipment, particularly coal cutting machines, operates in confined spaces where power interruptions can lead to costly downtime, safety hazards, and potential equipment damage.

The (V) NTSKCGECWOEU I 3/6 KV coal cutter cable represents a specialized engineering solution designed specifically for underground mining power supply applications. This heavy-duty flexible cable for coal cutting machines delivers the durability, flexibility, and safety performance required in the most demanding underground environments. With its advanced construction and proven reliability, this cable has become an essential component for modern mining operations worldwide.

Technical Overview of the Cable

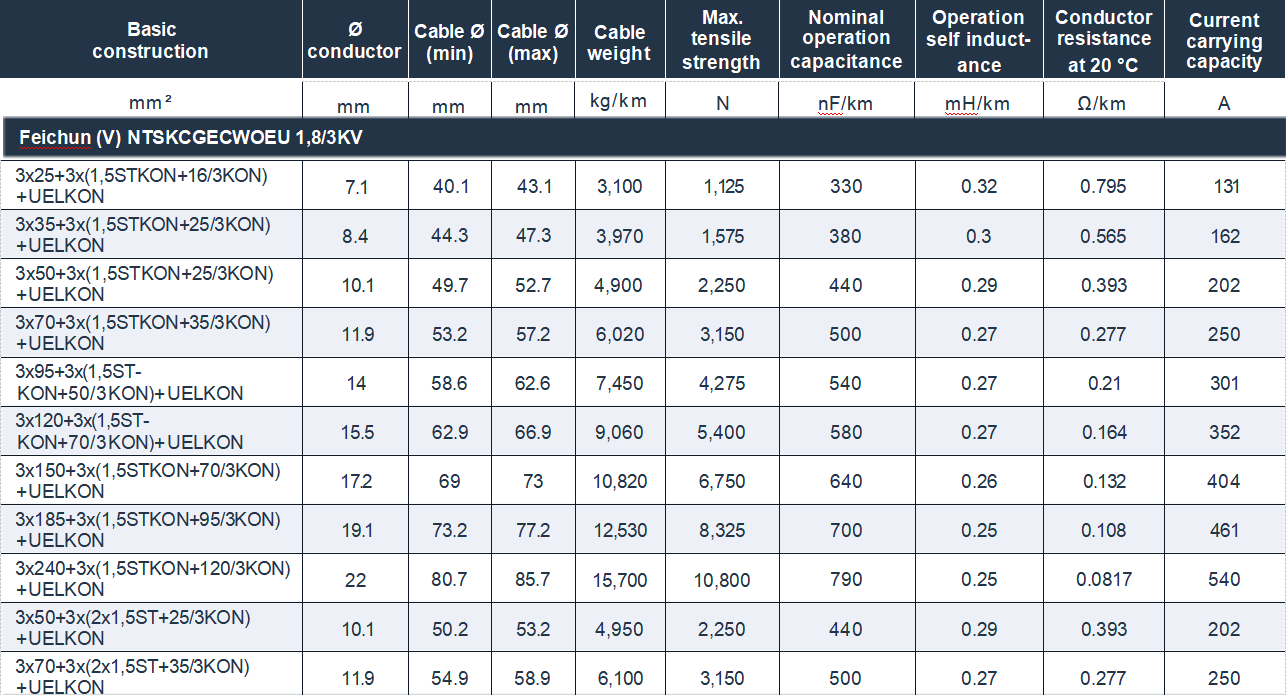

The (V) NTSKCGECWOEU I mining cable specification encompasses a comprehensive range of conductor sizes from 25mm² to 240mm², accommodating various power requirements for underground mining equipment. Operating at voltage ratings of 1.8/3 kV and 3.6/6 kV, this cable provides the electrical capacity necessary for high-performance coal cutting machinery and mobile underground equipment.

The cable's construction follows stringent mining industry standards, including DIN VDE 0250-813 for general requirements. This compliance ensures the cable meets global mining safety regulations and performance expectations.

Key technical specifications include conductor temperatures up to 90°C during normal operation and 250°C during short circuit conditions. The cable maintains functionality across extreme ambient temperatures from -40°C to 80°C for fixed installations and -20°C to 60°C for flexible applications, making it suitable for diverse underground mining environments.

The electrical parameters demonstrate impressive performance characteristics, with rated voltages of 1.8/3 kV (3.6 kV Um) and 3.6/6 kV (7.2 kV Um), supported by test voltages of 6 kV and 11 kV respectively. These specifications ensure reliable power transmission even under challenging electrical conditions common in mining operations.

Why Choose Feichun Coal Cutter Cable?

The coal cutter cable distinguishes itself through exceptional tensile strength capabilities, engineered specifically for cable handlers in mining chains. With maximum tensile strengths ranging from 1,125 N to 10,800 N depending on conductor size, this cable withstands the mechanical stresses associated with mobile mining equipment operations.

Flexibility remains paramount in underground applications where space constraints and equipment mobility create demanding bending requirements. The cable features a permanent tensile strength rating of 15 N/mm² and accommodates torsional stress of ±25°/m, enabling reliable performance in dynamic applications. Minimum bending radius specifications of 2.3 x D at 5 N/mm² ensure proper installation and operation without compromising cable integrity.

Safety features integrated into the cable design address critical underground mining concerns. The outer sheath utilizes polychloroprene (PCP) compound specifically formulated for mining applications, providing superior resistance to abrasion, moisture, acids, bases, and UV radiation. This comprehensive chemical resistance ensures long-term reliability in harsh mining environments where exposure to various substances is inevitable.

The cable construction incorporates flame retardant properties in accordance with EN/IEC 60332-1-2 standards, essential for underground applications where fire safety is paramount. Additionally, the cable demonstrates excellent ozone resistance and UV stability, maintaining performance characteristics even under extreme environmental conditions.

Application in Underground Mining

Coal cutting machines represent one of the most demanding applications for underground power cables. These machines operate continuously in abrasive environments, requiring cables that can withstand constant movement, mechanical stress, and exposure to coal dust and moisture. The 3/6 KV coal cutter power supply cable for underground mining provides the robust performance necessary for these critical operations.

The cable's design specifically accommodates use in cable protection chains, which trail behind coal cutting machines and absorb tensile forces during operation. This application requires cables capable of withstanding repeated bending, stretching, and mechanical abuse while maintaining electrical integrity and safety performance.

Mobile mining equipment in confined spaces presents additional challenges for power distribution systems. The tensile force-resistant coal cutter reeling cable accommodates the dynamic requirements of equipment that must navigate narrow tunnels, handle tight turns, and operate in spaces with limited clearance. The cable's flexibility and durability enable reliable power delivery even under these challenging conditions.

Underground mining operations often involve equipment positioning that creates complex cable routing requirements. The cable for mobile underground mining equipment must accommodate various installation methods, from festoon systems to trailing applications, while maintaining consistent performance characteristics across all deployment scenarios.

Benefits for Mining Companies

Implementing (V) NTSKCGECWOEU I cables delivers significant operational benefits that directly impact mining company profitability and safety performance. Reduced downtime represents one of the most substantial advantages, as the cable's robust construction minimizes failure rates and extends service intervals.

Maintenance cost reductions result from the cable's engineered durability and resistance to common failure modes. The specialized compound formulations and reinforced construction reduce the frequency of cable replacements and repairs, lowering overall maintenance expenses while improving operational efficiency.

Safety improvements are fundamental to mining operations, and this cable contributes through multiple mechanisms. The flame retardant properties, mechanical strength, and reliable electrical performance reduce the risk of electrical hazards, fires, and equipment failures that could endanger personnel.

Long service life under extreme mechanical stress provides mining companies with predictable operational costs and improved asset utilization. The cable's ability to withstand harsh conditions without degradation ensures consistent performance over extended periods, supporting reliable production schedules and reducing unexpected maintenance requirements.

Temperature performance across the specified operating range ensures reliable operation regardless of seasonal variations or depth-related temperature changes common in underground mining environments. This thermal stability contributes to overall system reliability and reduces the need for seasonal cable replacements.

Comparison with Standard Mining Cables

Traditional reeling cables often fail to meet the demanding requirements of modern underground mining operations. The (V) NTSKCGECWOEU I outperforms conventional solutions through several key design improvements that address common failure modes and performance limitations.

Standard mining cables typically utilize generic compound formulations that may not provide adequate resistance to the specific chemicals and environmental conditions encountered in coal mining operations. The specialized compound used in this cable offers superior performance against acids, bases, oils, and moisture commonly present in mining environments.

Tensile strength capabilities represent a significant advancement over traditional cables. While standard mining cables may provide basic mechanical protection, the engineered tensile strength of up to 10,800 N enables operation in applications where conventional cables would fail or require frequent replacement.

Flexibility characteristics of this specialized cable exceed those of traditional solutions, enabling applications in tight spaces and dynamic operations where standard cables cannot perform reliably. The optimized bending radius requirements and torsional stress capabilities provide installation and operational advantages that reduce system complexity and improve reliability.

The multi-voltage capability (both 3 kV and 6 kV ratings available) provides mining operations with flexibility in system design and equipment selection. This versatility allows mining companies to standardize on a single cable type while accommodating various equipment voltage requirements.

Frequently Asked Questions

What makes this cable suitable for coal cutting machine applications?

The cable's construction specifically addresses the unique requirements of coal cutting equipment, including exceptional tensile strength for cable handler systems, resistance to abrasive coal dust, and flexibility required for continuous movement operations. The specialized outer sheath provides superior protection against the harsh chemical and mechanical conditions present in coal mining environments.

How does the cable perform in wet underground conditions?

The cable demonstrates excellent water resistance through its specialized compound formulations and construction techniques. The polychloroprene outer sheath and EPR insulation systems provide reliable protection against moisture ingress, ensuring safe electrical performance even in wet mining conditions. The cable maintains its electrical and mechanical properties when exposed to the humidity and occasional water exposure common in underground mining.

What are the temperature limitations for this cable in mining applications?

The cable operates reliably across ambient temperatures from -40°C to 80°C for fixed installations and -20°C to 60°C for flexible applications. Conductor temperatures can reach 90°C during normal operation and 250°C during short circuit conditions. This temperature performance ensures reliable operation across the various thermal conditions encountered in underground mining environments.

Can this cable be repaired if damaged during mining operations?

Yes, the cable construction allows for field repairs using appropriate techniques and materials. The modular design with accessible conductor and insulation systems enables maintenance personnel to perform repairs when necessary. However, the cable's robust construction is designed to minimize damage occurrence, reducing the need for field repairs compared to standard mining cables.

What safety certifications does this cable maintain for underground mining?

The cable complies with DIN VDE 0250-813 mining safety standards. The flame retardant properties meet EN/IEC 60332-1-2 requirements, essential for underground applications. These certifications ensure the cable meets mining safety requirements.

Conclusion

The (V) NTSKCGECWOEU I 3/6 KV coal cutter cable represents the pinnacle of underground mining cable engineering, combining exceptional mechanical strength, electrical performance, and safety features in a single solution. This specialized cable addresses the unique challenges of coal cutting machine applications through innovative design and proven performance characteristics.

Mining companies seeking to optimize their underground operations should consider this cable for applications requiring reliable power distribution to mobile equipment. The combination of high tensile strength, environmental resistance, and comprehensive safety features makes it an ideal choice for modern mining operations where downtime and safety concerns demand the highest performance standards.

The technical specifications, proven reliability, and comprehensive certification portfolio make this cable suitable for the most demanding underground mining applications. Whether powering coal cutting machines, mobile equipment, or other critical mining machinery, this cable provides the performance assurance necessary for successful mining operations.

For mining operations requiring reliable power distribution solutions, technical specifications, detailed pricing information, or engineering consultation regarding cable selection and application requirements, professional mining cable specialists can provide comprehensive support to ensure optimal system design and implementation.
