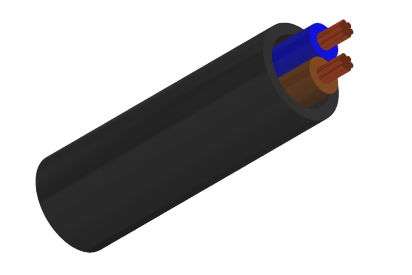

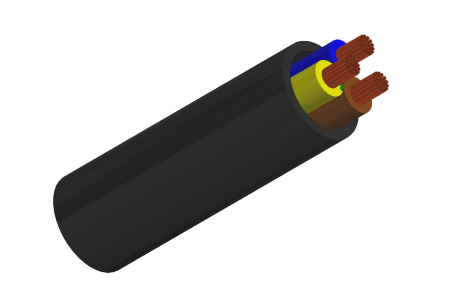

V90 PVC Light Duty Flexible Cord, 250/250V
Cable
Application
These cables are suitable for installing in dry applications only. They are use in radios, shavers, desk lamps and small portable equipment or use in office machines, hair dryers etc. and for appliances requiring an earth connection. Also suitable for use with double insulated appliances where the cord is not subject to mechanical stress.
Standard
AS/NZS 3191
AS/NZS 1125

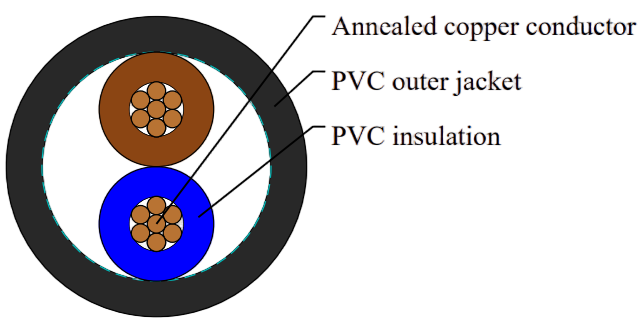

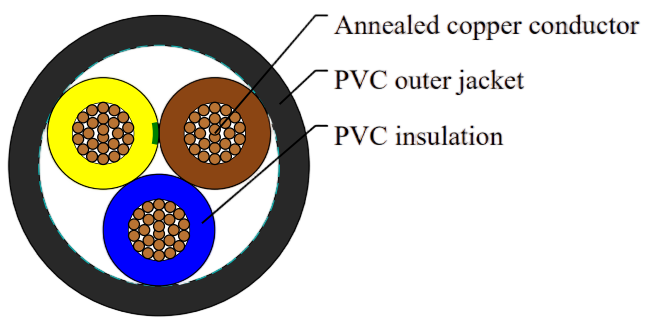

Construction
Conductor | Annealed copper conductor to AS/NZS 1125 |
| Maximum continuous operating temperature: 90°C |
Insulation | V-90 PVC |
Colours | 2C Brown, Light Blue |
| 3C Brown, Light Blue, Green/Yellow |
Sheath | 5V-90 PVC |
Colours | Grey, White, Black, Orange |
Technical Characteristics
Conductor Size | Current Carrying Capacity | Max. DC Resistance | Max. AC Resistance | Single Phase Voltage Drop |
|---|---|---|---|---|
mm^2 | A | Ohm/km @ 20 °C | Ohm/km @ 90 °C | MV/A.m |
0.5 | 3 | 39 | 49.7 | 99.4 |
0.75 | 7.5 | 26 | 33.2 | 66.3 |
1 | 10 | 19.5 | 24.9 | 49.8 |
1.5 | 16 | 13.3 | 17 | 34 |
2.5 | 20 | 7.98 | 10.2 | 20.3 |
4 | 25 | 4.95 | 6.31 | 12.6 |
