Variable Frequency Drive (VFD) EMC 2YSL(st)CY Cable
This cable offers a good resistance against oil and grease. Suitable for outdoor installation but not direct burial.
APPLICATION The cable has been developed for connecting motors to inverse rectifiers under consideration of EMC (electromagnetic compatibility) requirements. It may be used under medium mechanical stress for fixed installations and temporary movement. This cable offers a good resistance against oil and grease. Suitable for outdoor installation but not direct burial. |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Temperature Rating Fixed: -30°C to +70°C Flexed: -5°C to +70°C Minimum Bending Radius Fixed: 10 x overall diameter Flexed: 25 x overall diameter |

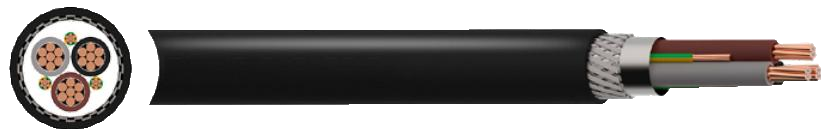

CONSTRUCTION
Conductor
Class 5 flexible copper conductor
Insulation
PE (Polyethylene)
Screen
Aluminium-Foil
Braid
TCWB (Tinned Copper Wire Braid)
Sheath
PVC (Polyvinyl Chloride)
Core Identification
3 core + earth: ● Grey ● Brown ● Black ● Green/Yellow
4 core: Grey Brown Black Green/Yellow
Sheath Colour
● Black
