VC4V-K

Cable

Application and Description

These flexible shielded cables with braided copper wire and are resistant to mineral oils. For use inside buildings, especially for connecting parts of machines used for manufacturing, including machine tools. Recommended in installations requiring electromagnetic protection to avoid the generation of parasite currents in other circuits. Easy to handle during installation and laying, they are rodent-proof.

Standards

UNE 21031-13

IEC 60332-1

EN 50265

IEC 60502

IEC 60228

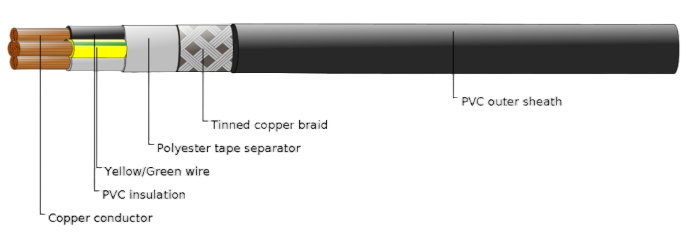

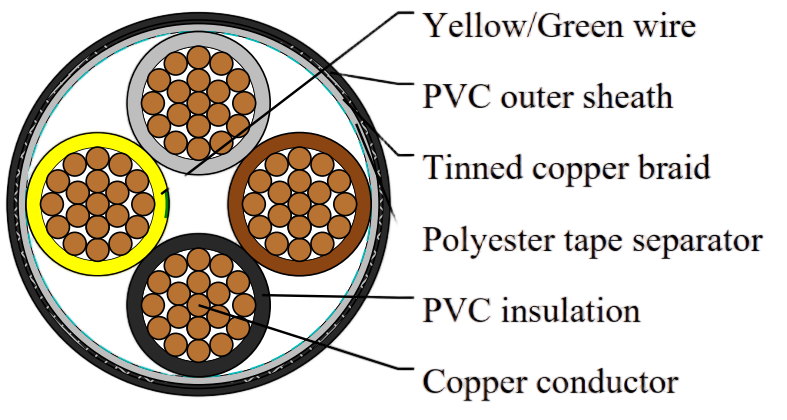

Cable Construction

Flexible annealed copper conductor

Class 5 in accordance with IEC 60228.

Polyvinyl chloride (PVC)

Color coded to HD 308

Polyester tape separator

High coverage tinned copper braided screen

Acrylic polyvinyl chloride (flexible PVC)

Technical Characteristics

Working voltage	300/500 volts; 600/1000volts
Test voltage	2500 volts(600/1000 volts)
Minimum bending radius	5x Ø
Working temperature	-15°C to +70°C
Short circuit temperature	+160°C
Insulation resistance	20 MΩ x km
Flame retardant	IEC 60332-1, EN 50265-2-1
Non-flame propagating	IEC 60332-3, EN 50266-2
