VG-YMvKasmb Cable
The VG-YMvKasmb cable is a power cable suitable for industrial installations.
$15.00
APPLICATION The VG-YMvKasmb cable is a power cable suitable for industrial installations. It is suitable for underground laying and where there is mechanical compulsion. |
CHARACTERISTICS Voltage Rating Uo/U (Um) 0.6/1kV Test Voltage 3.5kV Temperature Rating Operating: -15ºC to +90ºC Short Circuit Temperature +250°C Minimum Bending Radius 15 x overall diameter |

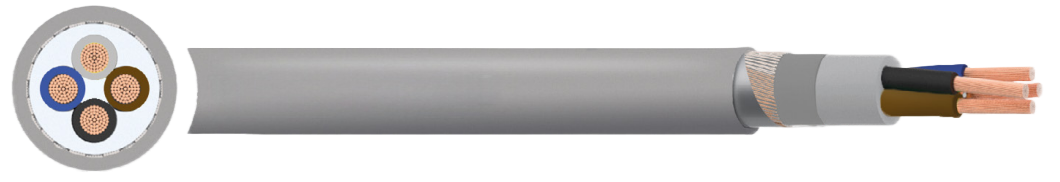

CONSTRUCTION
Conductor
Class1 Solid copper
Class 2 Stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
PVC (Polyvinyl chloride)
Inner Sheath
PVC FR (Polyvinyl chloride Flame Retardant)
Armour
Galvanised (flat) steel wire armour with copper earth wires and a galvanized steel tape counter helix (SWA)
Outer Sheath
PVC FR (Polyvinyl chloride Flame Retardant)
Sheath Colour
Grey
