(VO) (N)TSKCGEWOEU 1.8/3 kV Coal Cutter Cable for Chain Operation
Reliable Medium-Voltage Power Supply Cable for Underground Operations
$10.00
echnical Specifications
Parameter | Description |
|---|---|
Rated Voltage U0/U (Um) | 1.8/3 (3.6) kV |
Test Voltage | 6 kV |
AC Test Voltage (Control Cores) | 2 kV |
Maximum Conductor Temperature | 90 °C |
Max Conductor Temperature at Short Circuit | 250 °C |
Ambient Temperature (Fixed) | –40 °C to +80 °C |
Ambient Temperature (Flexible) | –20 °C to +60 °C |
Conductor | Finely stranded tinned copper, class FS |

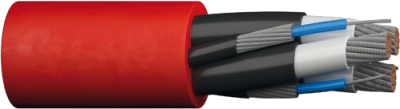

Core Configuration | Three main cores laid-up with three double concentric control/PE elements in outer interstices; main cores natural color, control cores blue |
Insulation | EPR rubber FEICHUN special compound 3GI3 |
Insulation Screen | Semi-conductive NBR easy strip |
Inner Sheath | Special EPR compound GM1b |
Outer Sheath | Chlorinated polyethylene (CM/CPE), FEICHUN special compound 5GM5 |
Mechanical Properties | Torsional stress ±50°/m; Permanent tensile strength 15 N/mm² |
Bending Radius | 2.3 × diameter at 5 N/mm² tensile strength; 20 × diameter minimum distance with S-type bends |
FEICHUN (VO) (N)TSKCGEWOEU cable is designed for power supply connections to mobile equipment and machines in underground mining applications, such as coal cutting machines. Intended for use in cable protection chains (cable handlers) that are trailed behind machines and absorb tensile forces during operation, this cable combines mechanical durability with high electrical performance and reliable monitoring features.
Standards and Certifications
DIN VDE 0250-813
DIN EN 60228 / IEC 60228 / VDE 0295
DIN EN 60332-1-2 / IEC 60332-1-2
DIN VDE 0298-4
DIN EN 60811-404 / IEC 60811-404
Product Features
Double Concentric Control/PE Conductors: Enhances cable monitoring and grounding in demanding mining operations.
Robust Electrical Insulation: Uses FEICHUN special EPR rubber compound for optimal electrical and mechanical performance.
Durable Outer Sheath: Chlorinated polyethylene sheath with FEICHUN’s special compound 5GM5 ensures mechanical protection and environmental resistance.
Wide Temperature Range: Designed for flexible and fixed installations with ambient temperature operation from –40 °C to +80 °C.
Mining Certified: Manufactured and tested according to international and regional standards to ensure safety and reliability.
Application Areas

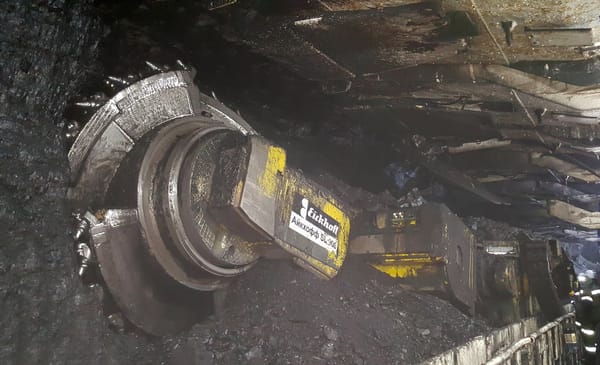

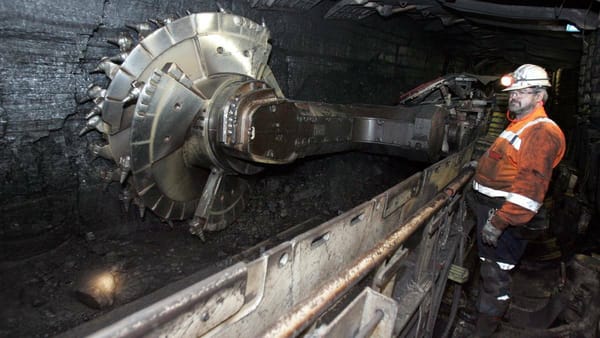

Ideal for coal cutter power supply cables in underground mining, optimized for use in cable protection chains exposed to tensile forces.
Installation and Maintenance
Install following bending radius guidelines for tensile applications. Routine cable inspection advised to maintain performance under mechanical stress.
Customization Services
Available with varied conductor sizes, control conductor configurations, lengths, and sheath types tailored to mining requirements.
