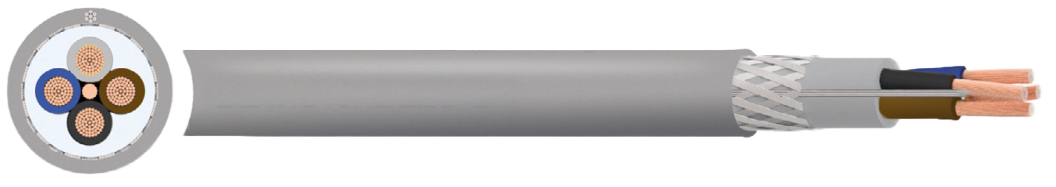

VO-YMvKasmb Cable
The VO-YMvKasmb cable is a power cable suitable for industrial applications. Suitable for underground laying.
$15.00
APPLICATION The VO-YMvKasmb cable is a power cable suitable for industrial applications. Suitable for underground laying. |
CHARACTERISTICS Voltage Rating Uo/U (Um) 0.6/1kV Test Voltage 3.5kV Temperature Rating Operating: -15ºC to +90ºC Short Circuit Temperature +250°C Minimum Bending Radius 15 x overall diameter |
CONSTRUCTION
Conductor
Class1 Solid copper
Class 2 Stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
PVC (Polyvinyl chloride)
Drain Wire
Tinned copper
Braiding
GSWB (Galvanized round steel wire)
Outer Sheath
PVC FR (Polyvinyl chloride Flame Retardant)
Sheath Colour
Grey
