VV-K

Application and Description

These cables are suitable for fixed installations with complex layouts where flexible cables are required. They are also used for connecting motors or frequency converters. The characteristics of the outer sheath material make this cable extremely versatile as it provides a high level of protection in all types of environments, outdoors, underground, in damp conditions or even submerged in water.

Standards

UNE 21123

HD 308 S2

IEC 60502

IEC 60228

IEEE 383

UNE-EN 50265-2-1

NF C 32-321

CE approved

ROHS compliant

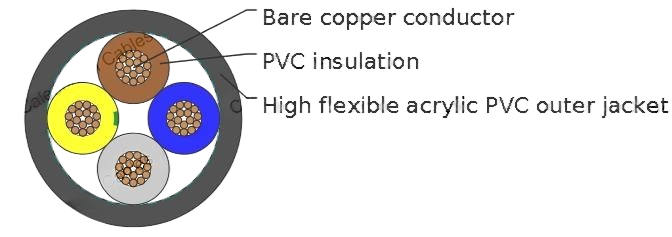

Cable Construction

Fine bare copper strands

Strands to IEC 60228 class 5

PVC/A core insulation to IEC 60502

Color codes to HD-308

High flexible special acrylic PVC compound ST1 outer jacket

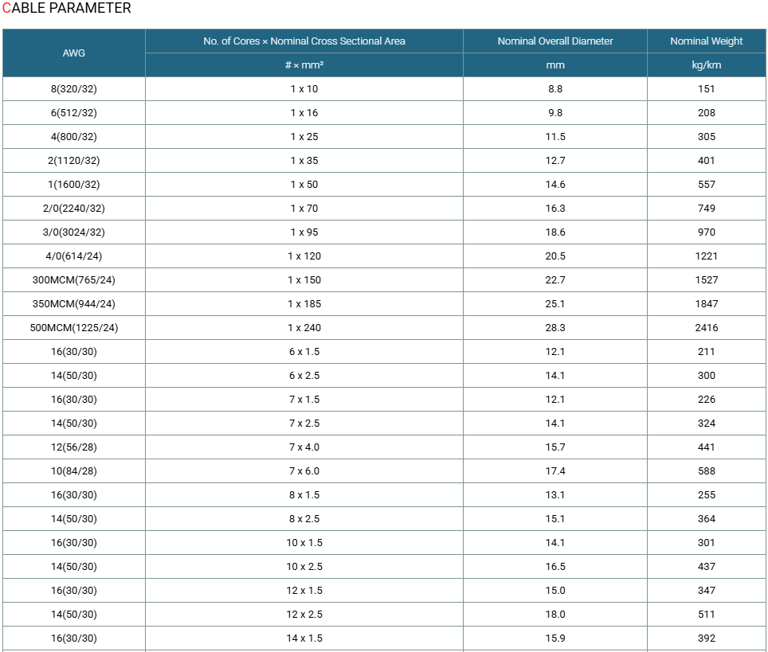

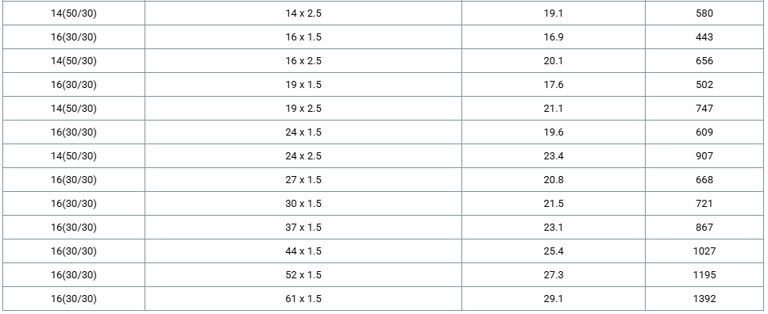

Technical Characteristics
