What Are the Most Common Causes of Port Crane Cable Failure?

Introduction

Modern automated ports rely heavily on sophisticated crane systems that operate around the clock to handle ever-increasing cargo volumes. At the heart of these critical operations lies an intricate network of specialized cables that power everything from ship-to-shore (STS) cranes to rubber-tired gantry (RTG) and rail-mounted gantry (RMG) systems. These cables must withstand extreme conditions while maintaining reliable power transmission and communication capabilities.

Port crane cable failure represents one of the most significant threats to terminal productivity and operational safety. When cables fail unexpectedly, the consequences extend far beyond simple equipment downtime. Entire berths can be rendered inoperable, creating costly delays that ripple through global supply chains. Understanding the root causes of these failures is essential for maintenance teams, design engineers, and port authorities who must ensure continuous, safe operations in increasingly demanding environments.

The complexity of modern port automation systems means that cable failures can affect multiple interconnected systems simultaneously. From power distribution networks to sophisticated positioning sensors and communication systems, a single cable failure can cascade into widespread operational disruptions. This comprehensive analysis examines the primary causes of port crane cable failure and provides actionable insights for preventing these costly incidents.

Mechanical Stress and Fatigue

The most prevalent cause of port crane cable failure stems from mechanical stress and fatigue accumulated over millions of operational cycles. Port cranes operate in continuous duty cycles, with cables subjected to constant bending, twisting, and tension forces that gradually compromise their structural integrity.

Dynamic reeling systems present particularly challenging conditions for cable longevity. As STS cranes traverse along their rails while simultaneously raising and lowering spreaders, cables experience complex multi-directional stresses. The combination of horizontal trolley movement, vertical hoist motion, and boom articulation creates a three-dimensional stress environment that few other industrial applications can match.

RTG and RMG systems face similar challenges, with cables constantly reeling and unreeling as the cranes move between container stacks. The mechanical stress on port crane cables intensifies during peak operational periods when cranes operate at maximum speed and capacity. Over time, this repetitive mechanical loading leads to conductor strand breakage, insulation cracking, and eventual complete cable failure.

The dynamic nature of crane operations means that cables rarely experience static loading conditions. Instead, they endure continuous flexing that gradually work-hardens the copper conductors and fatigues the protective outer sheaths. This phenomenon is particularly pronounced in automated terminals where cranes operate with minimal human intervention, potentially accelerating wear patterns through consistent, high-frequency movements.

Improper Cable Selection

Incorrect cable specification represents a fundamental cause of premature failures in port crane applications. Many failures occur when standard industrial cables are specified for demanding marine crane environments without adequate consideration of the unique operational requirements.

PVC-insulated cables, while suitable for many industrial applications, often prove inadequate for the harsh marine environment of port terminals. The combination of UV exposure, temperature cycling, and chemical exposure from salt spray can cause rapid deterioration of PVC insulation systems. This degradation leads to insulation breakdown, ground faults, and potential safety hazards.

Compliance with relevant standards such as AS/NZS 2802 and AS/NZS 3191 is crucial for ensuring cable reliability in Australian port installations. These standards specify minimum requirements for conductor construction, insulation materials, and environmental resistance that are essential for marine crane applications. Failure to select AS/NZS compliant crane cables often results in premature failures that could have been prevented through proper specification.

High tensile strength and flex durability represent critical characteristics that must be prioritized in cable selection. Cables designed specifically for crane applications incorporate specialized conductor constructions, enhanced insulation systems, and robust outer sheaths that can withstand the mechanical stresses inherent in port operations. The false economy of selecting lower-cost, general-purpose cables often leads to significantly higher total cost of ownership due to increased failure rates and maintenance requirements.

Environmental Exposure and Degradation

The marine environment presents unique challenges that accelerate cable degradation through multiple simultaneous mechanisms. UV radiation from intense sunlight combines with reflected light from water surfaces to create particularly harsh conditions for cable outer sheaths and insulation systems.

Seawater corrosion affects not only the cable's metallic components but also accelerates the breakdown of polymeric materials through chemical attack. Salt fog penetration into cable constructions can cause gradual insulation failure and conductor corrosion, leading to ground faults and power quality issues that compromise crane performance.

Marine cable degradation occurs through a complex interplay of environmental factors affecting crane cables. Temperature variations between hot summer days and cool nights create thermal cycling that stresses cable materials. This expansion and contraction gradually opens pathways for moisture ingress, which then accelerates corrosion processes and insulation breakdown.

The combination of high humidity, salt spray, and industrial pollutants creates an aggressive chemical environment that attacks cable materials from multiple directions. Outer sheaths may appear intact while internal degradation progresses, making visual inspection insufficient for detecting early-stage environmental damage. This hidden deterioration often leads to sudden failures that appear to occur without warning.

Electrical Overload and Thermal Stress

Exceeding current-carrying capacity during peak operation represents a significant cause of port crane cable failure. Modern automated ports often push equipment to maximum capacity during peak shipping seasons, potentially overloading cables beyond their designed thermal limits.

Thermal breakdown in harbor cables occurs when heat generated by excessive current flow cannot be adequately dissipated through the cable's thermal management system. This is particularly problematic in confined cable routes where multiple cables are bundled together without adequate ventilation or thermal spacing.

A case example from a major Australian port illustrates this problem: During exceptionally hot summer months, crane cables experienced multiple failures due to insufficient derating calculations. The cables were operating within their nominal current ratings but had not been properly derated for the high ambient temperatures and restricted ventilation conditions. The resulting overcurrent damage in crane cables led to extensive downtime and costly emergency repairs.

The thermal mass of large conductor cables means that overheating effects can be cumulative, with each overload event contributing to gradual insulation degradation. This thermal stress manifests as reduced dielectric strength, increased leakage current, and eventual insulation failure. The confined spaces typical of crane cable installations exacerbate these thermal effects by limiting natural cooling mechanisms.

Poor Cable Routing and Installation

Installation mistakes represent a preventable yet common cause of port crane cable failures. Sharp bends that exceed minimum bend radius specifications create stress concentrations that accelerate conductor fatigue and insulation cracking. These geometric constraints are particularly problematic in retrofit installations where existing cable routes may not accommodate modern cable requirements.

Inadequate cable chain design or reel drum misalignment creates additional mechanical stresses that can dramatically reduce cable service life. Cable chains must be properly sized and configured to support the weight of power and control cables while allowing smooth, unrestricted movement throughout the crane's operating range.

Improper cable routing in port cranes often results from insufficient planning during installation or modifications. Cables routed through sharp edges, unsupported spans, or areas with inadequate clearance experience accelerated wear and increased failure rates. The dynamic nature of crane operations means that even minor routing errors can have significant cumulative effects over time.

Best practices from IEC standards and Australian port installations emphasize the importance of proper cable support systems, adequate bend radius management, and regular inspection of cable routes. These practices recognize that proper installation is as critical as cable selection for achieving optimal service life and reliability.

Inadequate Maintenance and Inspection

Cable maintenance for port cranes often receives insufficient attention compared to mechanical and electrical systems, despite cables being critical components that enable crane operation. Delayed replacement of worn cables represents a common failure mode that could be prevented through proactive maintenance strategies.

The lack of real-time monitoring in automated systems compounds maintenance challenges by providing limited visibility into cable condition and performance trends. Without continuous monitoring, maintenance teams must rely on periodic visual inspections that may miss internal degradation or gradual performance decline.

An effective inspection checklist for harbor cables should include visual examination of outer sheaths, thermal imaging to detect hot spots, insulation resistance testing, and mechanical inspection of cable support systems. These comprehensive evaluations can identify potential failure modes before they result in costly unplanned downtime.

Preventive maintenance schedules must account for the unique operating conditions of port cranes, including duty cycle, environmental exposure, and mechanical stress levels. Regular replacement of cables showing signs of degradation, even if still functional, can prevent catastrophic failures that disrupt terminal operations.

Case Studies from Australian Ports

Analysis of crane cable failures in Australian ports provides valuable insights into real-world failure mechanisms and prevention strategies. At Sydney's Port Botany, a series of cable failures in automated stacking cranes was traced to inadequate environmental protection in the original cable specification. The replacement cables incorporated enhanced UV resistance and improved sealing against salt spray ingress.

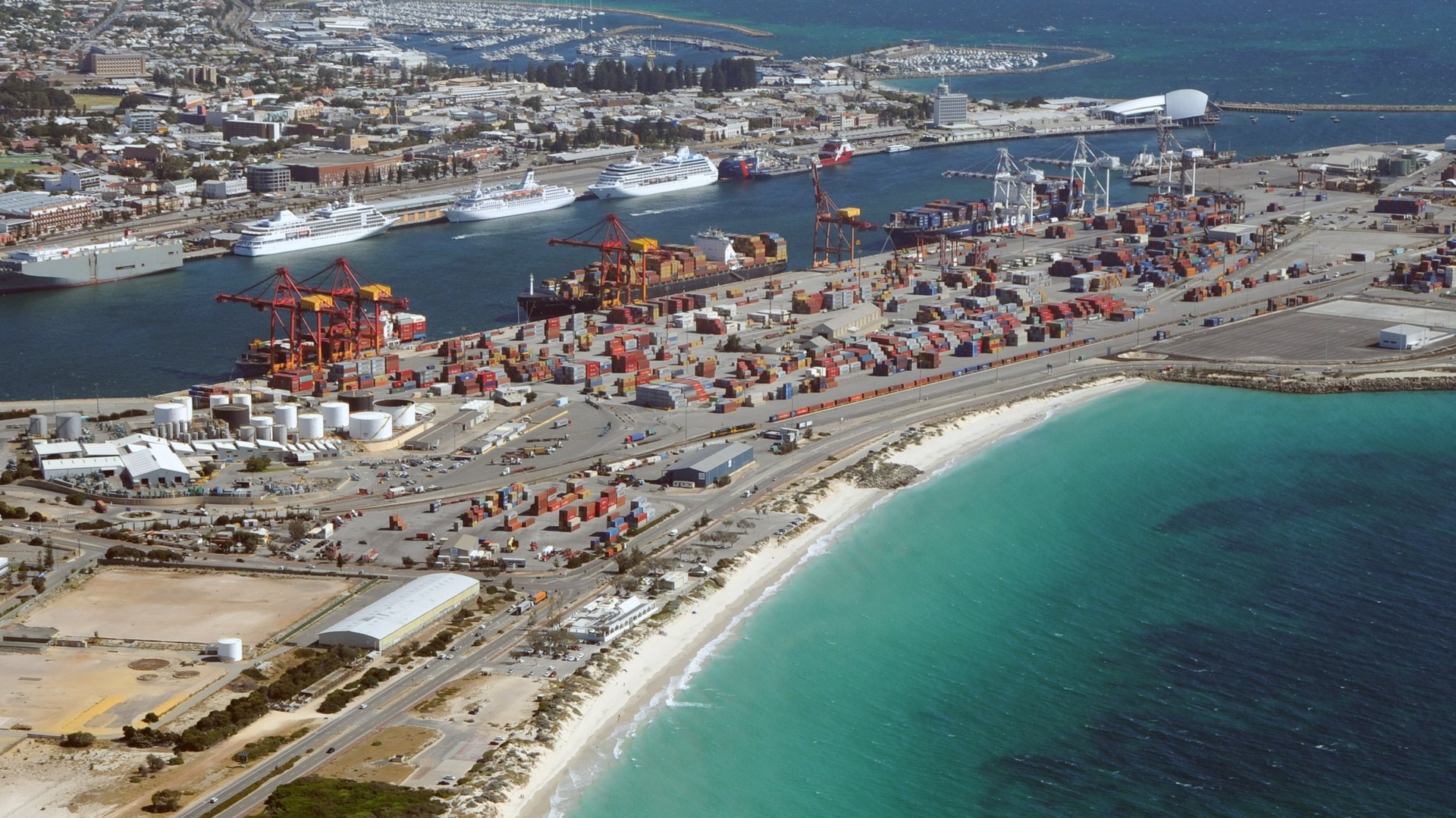

Fremantle Port experienced significant downtime when multiple STS crane cables failed simultaneously during peak operational periods. Investigation revealed that the failures resulted from a combination of thermal overload and mechanical fatigue, exacerbated by inadequate maintenance practices. The lessons learned from these incidents led to improved cable selection criteria and enhanced maintenance protocols.

Lessons from port cable damage in these case studies highlight the importance of learning from actual failure experiences rather than relying solely on theoretical analysis. The complex interaction of environmental, mechanical, and electrical stresses in real port operations often creates failure modes that are difficult to predict through laboratory testing alone.

These real-world examples demonstrate that successful cable management requires ongoing attention to changing operational conditions, environmental factors, and maintenance practices. The evolving nature of port automation continues to present new challenges for cable reliability and performance.

How to Prevent Port Crane Cable Failures

Preventing port crane cable failure requires a comprehensive approach that addresses selection, installation, and maintenance factors. The selection process should prioritize cables specifically designed for marine crane applications, with emphasis on flexible, reeling, and LSZH-rated cables that can withstand the unique demands of port terminals.

Best cable practices for ports include thorough environmental assessment, proper thermal derating calculations, and specification of cables with appropriate safety factors for mechanical and electrical loading. The role of trained installers cannot be overstated, as proper installation techniques are essential for achieving design service life.

Regular testing and inspection programs should include thermal imaging, insulation resistance measurement, and mechanical inspection of cable support systems. These proactive measures can identify potential problems before they result in failures that disrupt operations.

A comprehensive checklist for selecting the right cable for port crane applications should include environmental resistance requirements, mechanical stress analysis, electrical loading calculations, and compliance with relevant standards. This systematic approach ensures that all critical factors are considered during the specification process.

Conclusion

The causes of port crane cable failure are multifaceted and interconnected, requiring a comprehensive understanding of mechanical, electrical, and environmental factors. Mechanical stress and fatigue from continuous duty cycles, improper cable selection for marine environments, environmental degradation, electrical overload, poor installation practices, and inadequate maintenance all contribute to premature cable failures.

The importance of cable quality, environmental resistance, and proper installation cannot be overstated in achieving reliable port operations. As ports continue to automate and increase operational intensity, the demands on cable systems will only intensify, making proper selection and maintenance practices increasingly critical.

For engineers, port authorities, and procurement professionals, the key takeaway is that cable reliability requires attention to every aspect of the cable lifecycle, from initial specification through installation and ongoing maintenance. The false economy of selecting lower-cost cables or deferring maintenance invariably leads to higher total costs and operational disruptions.

To ensure optimal cable performance in your port operations, contact certified cable suppliers who specialize in marine crane applications. These specialists can provide custom solutions tailored to your specific operational requirements, environmental conditions, and performance expectations, helping to minimize the risk of costly cable failures and maximize terminal productivity.

Frequently Asked Questions

Q: What is the typical service life of port crane cables? A: Service life varies significantly based on operating conditions, cable quality, and maintenance practices. High-quality cables designed for marine crane applications typically achieve 5-10 years of service life under normal operating conditions, while inadequately specified cables may fail within 1-2 years.

Q: How can thermal issues be prevented in crane cable installations? A: Thermal management requires proper derating calculations for ambient temperature and installation conditions, adequate ventilation in cable routes, thermal monitoring systems, and avoiding excessive current loading during peak operations.

Q: What are the key differences between standard industrial cables and marine crane cables? A: Marine crane cables feature enhanced UV resistance, superior flexibility for dynamic applications, improved sealing against moisture ingress, specialized conductor constructions for fatigue resistance, and compliance with marine environment standards.

Q: How often should port crane cables be inspected? A: Visual inspections should be conducted monthly, with comprehensive electrical testing performed quarterly. Thermal imaging and detailed mechanical inspections should be conducted annually or more frequently in high-stress applications.

Q: What role does cable routing play in preventing failures? A: Proper cable routing minimizes mechanical stress through adequate bend radius management, proper support spacing, protection from sharp edges, and consideration of thermal expansion effects during operation.
