What Is a Compacted Copper Conductor and How Does It Enhance Port Crane Cable Performance?

Why Copper Conductors Matter in Port Cable Design

In the demanding world of port operations, electrical cables face some of the harshest conditions imaginable. From constant flexing on crane reeling systems to exposure to salt spray, oil contamination, and extreme mechanical stress, port crane cables must deliver unwavering performance in environments that would quickly destroy conventional electrical installations. At the heart of these robust cable systems lies the conductor – the critical component that determines not just electrical performance, but also mechanical durability, flexibility, and overall system reliability.

Copper has long been the material of choice for port crane cable conductors due to its exceptional electrical conductivity, corrosion resistance, and mechanical properties. However, the specific structure of the copper conductor plays an equally important role in determining cable performance. In recent years, compacted copper conductors have emerged as a superior solution for heavy-duty marine and port environments, offering significant advantages over traditional stranded conductors.

The importance of conductor structure in heavy-duty marine and port environments cannot be overstated. These applications demand cables that can withstand millions of flex cycles, resist fatigue failure, maintain consistent electrical performance under varying loads, and provide reliable service in corrosive atmospheres. The advent of compacted copper conductor technology has revolutionized how engineers approach these challenges, providing a pathway to enhanced performance without sacrificing the proven benefits of copper as a conductor material.

What is a Compacted Copper Conductor?

A compacted copper conductor represents a significant evolution in conductor technology, building upon the foundation of standard stranded conductors while addressing their inherent limitations. To understand the benefits of compacted conductors, it's essential to first examine how they differ from conventional stranded designs.

Definition and Comparison with Standard Stranded Conductors

A compacted copper conductor is a type of stranded conductor formed by compressing a standard Class 2 stranded round wire conductor through a cold rolling or compaction die during the manufacturing process. This compression eliminates the interstitial air gaps between individual wire strands, resulting in a denser, smoother, and smaller-diameter conductor with improved mechanical and electrical characteristics.

In contrast, standard stranded conductors consist of multiple copper wires twisted together in specific patterns, leaving air gaps between the individual strands. While this traditional design provides good flexibility and ease of manufacturing, it also creates inefficiencies in space utilization and can lead to inconsistent cable geometry.

Manufacturing Process: Compression and Shaping

The production of compacted copper conductors begins with a standard Class 2 conductor, which consists of multiple copper wires stranded together in a conventional manner. This initial conductor is then passed through a cold compaction die or roller system, where carefully controlled pressure is applied to compress the strands together.

During this compaction process, several important transformations occur:

1. Air Gap Elimination: The spaces between individual copper strands are compressed and eliminated, increasing the copper fill factor within the conductor cross-section.

2. Surface Smoothing: The outer profile of the conductor becomes significantly smoother and more cylindrical, reducing surface irregularities that can affect insulation application.

3. Strand Deformation: Individual copper strands undergo controlled deformation, allowing them to nest together more efficiently while maintaining their structural integrity.

4. Dimensional Optimization: The overall conductor diameter is reduced by approximately 5-10% compared to the original non-compacted version, while maintaining the same cross-sectional area of copper.

Common Standards and Classifications

Compacted copper conductors are manufactured in accordance with various international standards, with IEC 60228 serving as the primary reference for conductor classifications. The most common configurations include:

• Class 2 Compacted: Based on standard Class 2 stranded conductors that have been compacted for improved geometry

• Class 5 Compacted: Highly flexible conductors suitable for applications requiring frequent flexing and movement

• Class 6 Compacted: Ultra-flexible conductors designed for the most demanding dynamic applications

These classifications ensure that compacted conductors meet specific requirements for strand count, individual wire diameter, and overall conductor properties while maintaining compatibility with existing cable design standards.

Advantages of Compacted Copper Conductors in Port Crane Cables

The unique properties of compacted copper conductors provide numerous advantages that make them particularly well-suited for port crane cable applications. These benefits directly address the specific challenges faced in marine and port environments.

Reduced Conductor Diameter: Better Packing, Smaller Cable OD

One of the most immediate benefits of compacted copper conductors is their reduced diameter compared to equivalent non-compacted versions. This reduction, typically ranging from 5-10%, may seem modest, but it has significant implications for cable design and installation.

The smaller conductor diameter allows for more efficient cable construction, enabling the use of thinner insulation layers while maintaining the same dielectric properties. This, in turn, results in a smaller overall cable diameter, which provides several practical advantages:

• Space Efficiency: Smaller cables require less space in cable trays, ducts, and conduits, allowing for more efficient use of available installation space

• Weight Reduction: Reduced cable diameter typically translates to lower overall cable weight, which is particularly important for crane applications where every pound matters

• Cost Savings: Smaller cables require less raw material, potentially reducing overall cable costs

• Easier Handling: More compact cables are easier to handle during installation and maintenance operations

Improved Current-Carrying Capacity and Electrical Performance

Contrary to a common misconception, compacted copper conductors do not increase the current-carrying capacity through reduced electrical resistance – the DC resistance remains essentially unchanged since the copper cross-sectional area is preserved. However, the compaction process does provide electrical benefits that enhance overall performance:

The elimination of air gaps between strands creates a more uniform current distribution throughout the conductor cross-section. This improved current distribution can lead to slightly better heat dissipation characteristics, as heat generated in the conductor can be more efficiently transferred to the surrounding insulation and cable structure.

Additionally, the smoother outer surface of compacted conductors provides better contact with the surrounding insulation, potentially improving the cable's dielectric properties and reducing the risk of partial discharge phenomena that can occur at conductor-insulation interfaces.

Enhanced Mechanical Strength: Ideal for Reeling and Trailing Systems

The mechanical properties of compacted copper conductors make them particularly well-suited for the demanding applications found in port crane systems. The compaction process creates a more cohesive conductor structure where individual strands work together more effectively under mechanical stress.

This enhanced mechanical integrity provides several benefits:

• Improved Fatigue Resistance: The reduced air gaps and better strand-to-strand contact help distribute mechanical stress more evenly, reducing stress concentrations that can lead to fatigue failure

• Better Crush Resistance: The compacted structure is more resistant to deformation under external pressure, important for cables that may be subjected to pinching or crushing forces

• Reduced Strand Migration: The compaction process helps prevent individual strands from migrating within the conductor, maintaining consistent electrical and mechanical properties over time

Enhanced Flexibility and Fatigue Resistance

Despite their more compact structure, properly designed compacted copper conductors can actually provide improved flexibility compared to their non-compacted counterparts. This apparent contradiction is possible due to the more efficient use of the conductor cross-section, which allows for the use of smaller individual wire strands without sacrificing overall conductor area.

The flexibility benefits are particularly important in port crane applications where cables must withstand:

• Continuous Flexing: Cables on reeling systems may flex millions of times during their service life

• Dynamic Loading: Crane movements create varying mechanical loads that the cable must accommodate

• Multi-Directional Bending: Port cranes often require cables to bend in multiple directions simultaneously

Better Cable Roundness: Important for Drum-Winding Performance

The compaction process creates conductors with superior roundness and concentricity compared to standard stranded designs. This improved geometry has significant implications for cable performance, particularly in reeling applications:

• Consistent Insulation Thickness: Better conductor roundness allows for more uniform insulation application, reducing the risk of thin spots that could lead to electrical failure

• Improved Drum Winding: Cables with better roundness wind more smoothly on reeling drums, reducing mechanical stress and extending cable life

• Reduced Vibration: More uniform cable geometry can help reduce vibration and noise during operation

Application in Marine and Port Environments

Port environments present unique challenges that make the selection of appropriate cable technology critical for reliable operations. Understanding these challenges helps illustrate why compacted copper conductors have become increasingly popular in marine and port applications.

Stress Factors in Port Operations

Port crane cables must withstand a combination of environmental and operational stresses that would quickly defeat conventional electrical installations:

Environmental Stresses:

• Salt Spray and Corrosion: Constant exposure to marine atmosphere requires cables with excellent corrosion resistance

• Temperature Extremes: Cables must function reliably in temperature ranges from sub-zero winter conditions to high summer temperatures

• UV Exposure: Outdoor installations are subjected to intense ultraviolet radiation that can degrade cable materials

• Moisture and Humidity: High humidity and direct water exposure require robust moisture barriers

Operational Stresses:

• Mechanical Flexing: Reeling and trailing systems subject cables to millions of flex cycles

• Dynamic Loading: Crane movements create varying mechanical loads and stress patterns

• Abrasion: Contact with equipment and structures can cause mechanical wear

• Oil and Chemical Exposure: Port environments often involve exposure to hydraulic fluids, lubricants, and other chemicals

Why Compacted Conductors Are Preferred for Motorized Reeling Cables

Motorized reeling cable systems represent one of the most demanding applications for electrical cables. These systems require cables that can withstand continuous winding and unwinding while maintaining electrical integrity and mechanical durability.

Compacted copper conductors excel in these applications for several reasons:

1. Fatigue Resistance: The improved mechanical structure provides better resistance to fatigue failure under repeated flexing

2. Consistent Performance: Better conductor geometry ensures consistent electrical performance throughout the cable's service life

3. Reduced Maintenance: Enhanced durability reduces the frequency of cable replacement and maintenance requirements

4. Improved Safety: More reliable electrical performance reduces the risk of electrical failures that could compromise safety

Case Study: Port Cable Using Compacted Class 5 Conductors

A major container terminal recently upgraded their crane fleet with new reeling cable systems featuring compacted Class 5 copper conductors. The installation included:

• Cable Specification: 4-core 95mm² compacted copper conductor cable with specialized marine-grade insulation

• Application: Ship-to-shore crane power and control systems

• Operating Conditions: Continuous duty with frequent reeling operations, exposure to salt spray and temperature extremes

Results After 18 Months of Operation:

• 99.8% Uptime: Significantly improved reliability compared to previous standard conductor cables

• Reduced Maintenance: 40% reduction in cable-related maintenance incidents

• Extended Service Life: Projected service life increased from 5 years to 8+ years

• Cost Savings: Overall cost of ownership reduced by 25% due to improved reliability and extended service life

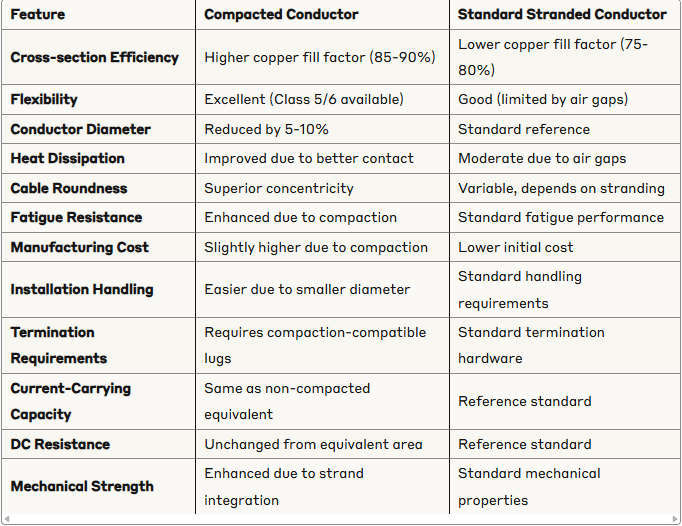

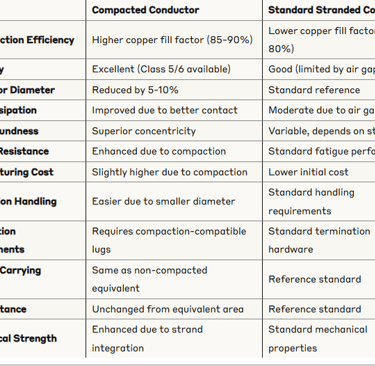

Comparison: Compacted vs Non-Compacted Copper Conductors

To fully appreciate the benefits of compacted copper conductors, it's helpful to examine a detailed comparison with standard stranded conductors across key performance parameters:

This comparison clearly demonstrates that while compacted conductors may have slightly higher initial costs, they provide significant advantages in performance, durability, and long-term cost of ownership.

Standards and Compliance

The design and manufacture of compacted copper conductors for port crane applications must comply with various international and regional standards to ensure safety, performance, and interoperability.

International Standards

IEC 60228 - Conductors of insulated cables serves as the primary international standard for conductor specifications, including compacted conductors. This standard defines:

• Conductor classes and their applications

• Dimensional requirements and tolerances

• Electrical properties and test methods

• Marking and identification requirements

IEC 60092 - Electrical installations in ships provides specific requirements for marine electrical systems, including cable specifications for port and marine applications.

Regional Standards

AS/NZS 2802 - Electrical cables - Polymeric insulated - For working voltages 1 kV and 3 kV covers requirements for medium voltage cables used in port applications within Australia and New Zealand.

AS/NZS 5000 - Electrical cables - Polymeric insulated - For working voltages of 6 kV up to 35 kV addresses higher voltage applications that may be encountered in large port installations.

Compliance Benefits

Compacted copper conductors help meet marine cable and port cable specifications in several ways:

1. Improved Geometry: Better conductor roundness and concentricity help meet strict dimensional tolerances

2. Enhanced Performance: Superior mechanical properties help exceed minimum performance requirements

3. Reliability: Increased fatigue resistance contributes to meeting service life requirements

4. Safety: Improved electrical performance reduces the risk of failures that could compromise safety

Final Thoughts: Should You Choose Compacted Copper Conductors for Your Port Cable Projects?

The decision to specify compacted copper conductors for port cable projects involves careful consideration of performance requirements, cost factors, and long-term operational goals. Based on the comprehensive analysis presented in this article, several key conclusions emerge.

Summary of Benefits and ROI

Compacted copper conductors offer compelling advantages for port crane cable applications:

Performance Benefits:

• Reduced cable diameter and weight

• Enhanced mechanical strength and fatigue resistance

• Improved flexibility and handling characteristics

• Better electrical performance consistency

• Superior cable geometry for reeling applications

Economic Benefits:

• Reduced installation costs due to smaller cable size

• Lower maintenance requirements and costs

• Extended service life compared to standard conductors

• Improved system reliability and uptime

• Long-term cost savings despite higher initial investment

Operational Benefits:

• Enhanced safety through improved reliability

• Reduced downtime and maintenance intervals

• Better performance in demanding port environments

• Simplified inventory management with fewer cable sizes

When to Choose Compacted vs Conventional Conductor Types

Compacted copper conductors are particularly beneficial in the following scenarios:

Highly Recommended:

• High-flex applications such as reeling and trailing systems

• Space-constrained installations where cable size matters

• Critical applications where reliability is paramount

• Long-term installations where total cost of ownership is important

• Marine and port environments with demanding operating conditions

Consider Carefully:

• Applications with frequent terminations where specialized hardware costs become significant

• Short-term or temporary installations where initial cost is the primary concern

• Applications with minimal flexing requirements where standard conductors perform adequately

Long-term Reliability and Maintenance Savings

The enhanced durability and performance characteristics of compacted copper conductors translate directly into long-term operational benefits. Port operators who have adopted compacted conductor technology report:

• Reduced Cable Failures: Significant decrease in cable-related incidents and failures

• Extended Service Life: Typical service life increases of 30-50% compared to standard conductors

• Lower Maintenance Costs: Reduced frequency of cable replacement and maintenance activities

• Improved Safety Record: Fewer electrical failures contributing to enhanced workplace safety

• Better Operational Efficiency: Improved reliability supporting continuous port operations

In conclusion, compacted copper conductors represent a mature and proven technology that offers significant advantages for port crane cable applications. While the initial investment may be higher than standard conductors, the improved performance, reliability, and long-term cost savings make them an attractive choice for demanding port environments.

The key to success lies in proper application engineering, ensuring that the specific benefits of compacted conductors are matched to the actual requirements of each installation. When properly specified and installed, compacted copper conductors can provide decades of reliable service in even the most challenging port environments, making them an excellent investment for forward-thinking port operators.

Frequently Asked Questions

Q: How can I tell if a copper conductor cable is compacted?

A: Compacted copper conductors can be identified through several methods:

Visual Inspection: Compacted conductors have a smoother, more uniform outer surface compared to standard stranded conductors

Cable Markings: Cables with compacted conductors should be clearly marked with "Compacted" or "C" designation

Diameter Measurement: Compacted conductors will have a smaller diameter than equivalent non-compacted versions

Manufacturer Documentation: Cable specifications should clearly indicate conductor type and compaction status

Q: Do compacted conductors require special termination hardware?

A: Yes, compacted conductors require termination accessories (lugs, ferrules, connectors) specifically designed for the compacted diameter. Using regular lugs on compacted conductors may lead to improper crimping, poor electrical connections, or overheating. Always verify that termination hardware is compatible with compacted conductor specifications.

Q: Will compacted conductors reduce my cable's electrical resistance?

A: No, compacted conductors do not reduce electrical resistance compared to equivalent non-compacted conductors. The copper cross-sectional area and DC resistance remain the same. The benefits of compaction lie in improved mechanical properties, reduced cable diameter, and enhanced cable geometry rather than electrical performance improvements.

Q: Are compacted conductors more expensive than standard stranded conductors?

A: Compacted conductors typically have a slightly higher initial cost due to the additional manufacturing process required for compaction. However, the long-term cost of ownership is often lower due to reduced maintenance requirements, extended service life, and improved reliability. The total cost benefit depends on the specific application and operating conditions.

Q: Can I use compacted conductors in any application where standard stranded conductors are used?

A: While compacted conductors can be used in most applications suitable for standard stranded conductors, they provide the greatest benefits in demanding applications such as reeling systems, high-flex installations, and space-constrained environments. The decision should be based on application requirements, performance needs, and cost considerations.
