What Is MTW/TEW Wire? Machine Tool Wire and Thermoplastic Equipment Wire Guide (Applications, UL Ratings & Dual Listings)

Introduction: What Is MTW/TEW Wire?

MTW (Machine Tool Wire) and TEW (Thermoplastic Equipment Wire) represent two premium categories of hook-up wire specifically engineered to meet rigorous National Electrical Code (NEC) requirements for industrial and commercial applications. These specialized wires serve as the backbone of electrical connectivity in control cabinets, switchboards, appliances, machine tools, and sophisticated electronic circuits where reliability, durability, and safety are non-negotiable.

What makes MTW/TEW wire particularly valuable in modern electrical installations is the frequent dual-listing capability. Many TEW wires carry both MTW and TEW designations, effectively combining the best attributes of both classifications into a single product. This dual rating dramatically simplifies wire selection for industrial engineers, original equipment manufacturers (OEMs), and control panel builders, reducing inventory complexity while ensuring comprehensive regulatory compliance across diverse application scenarios.

MTW Wire: Construction and Key Features

Machine tool wire represents a specialized conductor solution designed specifically for the demanding environments found in industrial automation and manufacturing equipment. At its core, MTW wire features a tinned copper conductor—copper strands coated with a thin layer of tin—which provides superior corrosion resistance in dry locations where moisture infiltration is minimal but long-term reliability remains critical.

The insulation system employs premium-grade polyvinyl chloride (PVC) compound formulated to resist heat, moisture, and industrial oils commonly encountered in machine tool applications. MTW wire carries a 600-volt rating and operates reliably at temperatures up to 105°C (221°F), making it suitable for high-temperature control circuits and power distribution within industrial equipment.

The construction emphasizes mechanical flexibility and physical durability. Stranded conductor configurations enhance the wire's ability to withstand repeated flexing, vibration, and movement typical in automated machinery and robotic systems. This flexibility proves essential in control cabinet wiring where technicians must route conductors through tight spaces, around corners, and through cable management systems. The combination of tinned copper conductors and robust PVC insulation creates a wire that maintains electrical performance and mechanical integrity throughout years of industrial service.

TEW Wire: Construction and Key Features

Thermoplastic equipment wire takes a slightly different approach to meet the wiring needs of general electrical equipment and appliances. TEW wire utilizes bare copper conductors—pure copper without tin plating—which delivers excellent electrical conductivity and cost-effectiveness for applications where extreme corrosion resistance is less critical.

Like its MTW counterpart, TEW wire employs PVC insulation engineered to withstand heat, oil, and moisture exposure. The wire maintains the same impressive specifications: 600-volt rating and 105°C operating temperature capability. The bare copper construction provides superior current-carrying capacity and lower resistance compared to tinned alternatives, making TEW wire ideal for applications prioritizing electrical efficiency.

The flexibility of TEW wire construction facilitates tight routing within electrical equipment housings, control panels, and appliance interiors where space constraints demand compact wire management. What distinguishes many modern TEW products is their dual-rated status as MTW/TEW wire. This dual approval means a single wire product satisfies the requirements of both specifications, offering equipment manufacturers and electrical contractors broader installation approval and streamlined inventory management. Rather than stocking separate MTW and TEW products, facilities can maintain a single SKU that serves multiple application requirements.

MTW vs TEW Wire: What Is the Difference?

Understanding the difference between MTW and TEW wire helps engineers and purchasing professionals make informed decisions for specific applications. The primary distinction lies in conductor construction: MTW employs tinned copper conductors while TEW typically uses bare copper. This seemingly minor difference creates important practical implications.

Tinned copper conductors in MTW wire offer enhanced corrosion resistance, particularly valuable in dry environments where oxidation might occur over extended service periods. The tin coating prevents copper oxidation and facilitates reliable connections in terminal blocks and connectors, even after years of service. However, tinning adds manufacturing cost and slightly reduces conductivity compared to bare copper.

Bare copper conductors in TEW wire maximize electrical conductivity and reduce material costs, making them ideal for general equipment wiring where extreme corrosion resistance is unnecessary. The bare copper surface provides excellent connection reliability and lower electrical resistance for efficient current flow.

Usage environments also differ subtly. MTW wire finds its niche in dry locations within machine tools, industrial automation systems, and control cabinets where mechanical durability and long-term corrosion resistance justify the premium. TEW wire serves broader equipment wiring needs including appliances, switchboards, and electronic equipment in commercial and industrial settings.

When choosing between MTW wire vs TEW wire, consider your specific application environment, regulatory requirements, expected service life, and budget constraints. For many applications, dual-rated MTW/TEW wire offers the optimal solution by meeting both specifications and providing maximum installation flexibility.

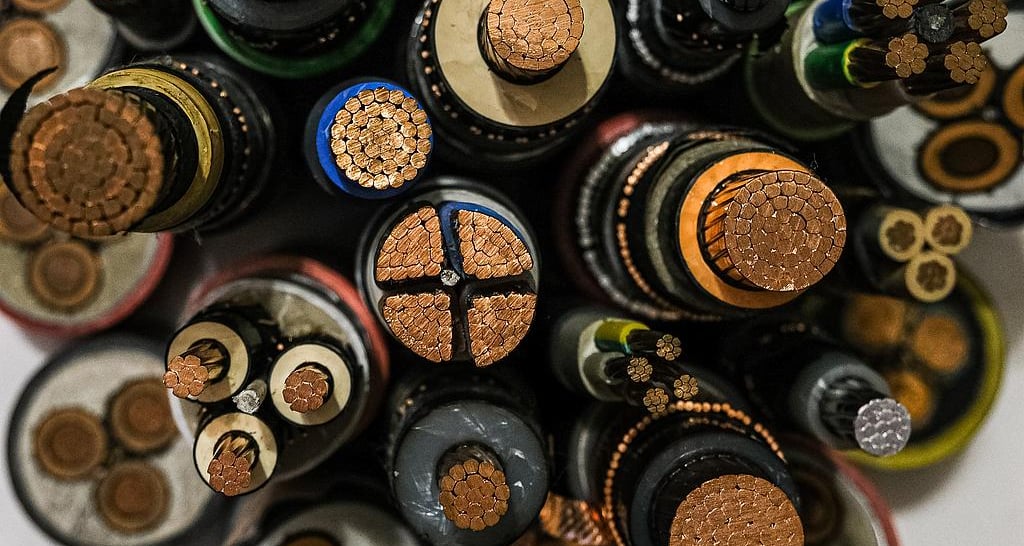

MTW/TEW Wire Construction Details

The construction of MTW/TEW wire combines carefully selected materials with precise manufacturing specifications to deliver reliable performance across demanding applications. Conductors are available in both solid and stranded configurations, with bare or tinned copper options depending on the specific UL style and wire size (AWG).

Solid conductors typically appear in smaller gauge sizes where flexibility requirements are modest and termination simplicity matters. Stranded conductors dominate in larger sizes and applications requiring frequent movement or vibration resistance. The stranding increases flexibility and fatigue resistance, critical factors in control cabinet installations and machine tool wiring where conductors experience repeated flexing during equipment operation and maintenance.

PVC insulation thickness varies systematically by AWG size and UL style specification. Smaller conductors require thinner insulation walls—measured in mils (thousandths of an inch)—while larger gauge wires feature proportionally thicker insulation to maintain voltage withstand capability and physical protection. Common insulation thicknesses range from 15 mils for smaller gauges to 80 mils or more for larger conductors and higher-voltage applications.

The universal ratings of 600 volts and 105°C operating temperature make MTW/TEW wire suitable for the vast majority of industrial control circuits, power distribution within equipment, and general appliance wiring. The PVC insulation formulation specifically addresses exposure to heat, oil, gasoline, coolants, and moisture—environmental factors frequently encountered in industrial equipment and automotive applications.

Applications of MTW Wire

Machine tool wire serves critical roles across industrial and manufacturing environments where electrical reliability directly impacts production efficiency and equipment safety. Industrial control cabinets represent a primary application, where MTW wire connects programmable logic controllers (PLCs), motor starters, relays, switches, and instrumentation within enclosed panels. The tinned copper conductors ensure reliable connections in terminal strips even after years of exposure to temperature cycling and occasional condensation.

Switchboards and electrical distribution equipment benefit from MTW wire's robust construction and compliance with NEC requirements for commercial and industrial installations. The wire's flexibility facilitates professional installation through cable trays, conduit systems, and wire management channels common in electrical rooms and utility spaces.

In automotive and appliance wiring harnesses, MTW wire's corrosion-resistant tinned conductors provide long-term reliability in applications subject to temperature extremes, vibration, and occasional moisture exposure. Automotive control systems, battery management circuits, and accessory wiring all leverage MTW wire's durability and temperature capability.

Machine tools and automated manufacturing equipment present particularly demanding environments where repeated movement, vibration, and exposure to cutting fluids, hydraulic oils, and coolants challenge electrical systems. MTW wire's combination of flexible construction, oil-resistant insulation, and tinned conductors ensures reliable operation throughout the equipment's service life. Whether wiring CNC machines, robotic welders, or automated assembly systems, engineers specify machine tool wire for its proven performance in harsh industrial conditions.

Applications of TEW Wire

Thermoplastic equipment wire addresses the internal wiring needs of a broad spectrum of electrical equipment, appliances, and control systems across commercial, industrial, and residential applications. Within appliances—ranging from commercial refrigeration units to industrial ovens—TEW wire provides reliable connections between control boards, sensors, heating elements, motors, and power supplies. The heat-resistant insulation and bare copper conductivity support efficient operation while meeting appliance safety standards.

Control panels for HVAC systems, process automation, and building management systems rely on TEW wire for clean, professional installations. The wire's flexibility allows neat routing through panel channels and wire ducts, while its 600-volt and 105°C ratings accommodate typical control voltage and temperature conditions. Electricians and panel builders appreciate the ease of stripping, terminating, and labeling thermoplastic equipment wire during assembly and field installation.

Switchboards and electronic circuits in commercial buildings utilize TEW wire for lighting controls, security systems, fire alarm circuits, and general electrical distribution at control voltages. The oil-resistant and moisture-resistant properties ensure long-term reliability in electrical closets and equipment rooms subject to varying humidity and temperature conditions.

The dual-listed MTW/TEW wire option proves especially valuable for OEMs and panel builders serving multiple markets. A single wire product satisfying both MTW and TEW requirements simplifies procurement, reduces inventory costs, and provides flexibility when equipment specifications change or installations require specific wire designations. Rather than maintaining separate stocks of machine tool wire and thermoplastic equipment wire, manufacturers can standardize on dual-rated products that meet broader approval requirements.

MTW/TEW Wire UL Ratings and AWM Styles

Understanding UL AWM (Appliance Wiring Material) styles is essential for proper MTW/TEW wire selection and specification. Four primary UL styles dominate the MTW/TEW wire market: UL 1028, UL 1283, UL 1284, and UL 1015. Each style defines specific construction parameters including conductor size ranges, insulation thickness, and temperature ratings.

UL 1028 covers a wide range of conductor sizes from 18 AWG through 4/0 AWG and beyond, with 105°C temperature rating and 600-volt capacity. Minimum insulation thickness requirements vary by conductor size, typically ranging from 30 mils for mid-range gauges to 80 mils for larger conductors.

UL 1283 applies to solid or stranded conductors from 26 AWG through 4/0 AWG, maintaining the same 105°C and 600-volt ratings. Insulation thickness specifications differ slightly from UL 1028, creating opportunities for some wire sizes to carry dual ratings when insulation meets both standards.

UL 1284 similarly covers 26 AWG through 4/0 AWG with 105°C, 600-volt ratings and specific insulation thickness requirements that allow overlap with other UL styles in certain conductor sizes.

UL 1015 addresses both solid and stranded conductors from 28 AWG through 4/0 AWG and larger, with the familiar 105°C and 600-volt specifications. The insulation thickness requirements for UL 1015 create additional opportunities for dual rating with UL 1028 and other styles.

These UL styles help engineers and purchasing personnel verify code compliance and ensure wire specifications match application requirements. Wire manufacturers clearly mark products with applicable UL style designations, allowing inspectors and installers to confirm proper wire selection for each installation.

Dual Rating and Overlapping UL Styles

The concept of dual-rated MTW/TEW wire represents a significant practical advantage for electrical equipment manufacturers, control panel builders, and maintenance facilities. A single wire construction can simultaneously meet requirements for multiple UL standards when its insulation thickness and other properties satisfy overlapping specifications. The wire jacket carries markings for all applicable ratings, providing maximum installation flexibility.

Specific examples illustrate this valuable overlap. An 8 AWG conductor might carry listings for UL 1028, UL 1283, or UL 1284 depending on insulation thickness. When the insulation meets the most demanding requirement among these three standards, the wire earns all three designations.

Similarly, 6 AWG conductors frequently meet UL 1028, UL 1283, and UL 1015 requirements simultaneously when the insulation thickness reaches approximately 60 mils. This tri-rated wire satisfies application requirements across machine tools, general equipment wiring, and appliance installations with a single product.

For 2 AWG and 4 AWG conductors, common dual-rating combinations include UL 1015/UL 1028 or UL 1283/UL 1284, with the specific combination determined by insulation thickness and conductor construction details. Manufacturers optimize insulation specifications to achieve the broadest possible rating coverage, maximizing the wire's application range.

The practical benefits of dual rating extend throughout the supply chain. Equipment manufacturers reduce SKU complexity by standardizing on multi-rated wires. Electrical distributors carry fewer line items while serving broader customer needs. Contractors and panel shops maintain smaller wire inventories while ensuring code compliance across diverse projects. When specifications call for MTW wire for one circuit and TEW wire for another, dual-rated MTW/TEW wire serves both requirements from a single reel.

Additional Standards: BC5W2 and SAE J1127

Beyond UL ratings, MTW/TEW wire constructions frequently carry additional certifications that expand their application scope into automotive, marine, and other specialized environments. BC5W2 and SAE J1127 Type SGT ratings represent two important supplementary standards commonly associated with MTW/TEW wire products.

SAE J1127 Type SGT addresses automotive primary wire requirements for bare copper conductors, typically covering size ranges from 6 AWG through 4/0 AWG and larger. This SAE (Society of Automotive Engineers) standard specifies construction, performance, and testing requirements for wire used in automotive electrical systems, where vibration resistance, temperature cycling, and exposure to automotive fluids challenge wire durability. TEW wire constructions with bare copper conductors often meet SAE J1127 requirements, making them suitable for automotive control systems, power distribution, and accessory circuits.

BC5W2 applies to tinned copper conductor constructions, covering similar size ranges from 6 AWG through 4/0 AWG and beyond. The BC5W2 rating proves particularly valuable in marine applications where saltwater exposure and high-humidity environments demand superior corrosion resistance from tinned conductors. MTW wire with tinned copper naturally aligns with BC5W2 requirements, expanding its applicability to boat building, marine equipment, and coastal installations.

These additional ratings matter significantly for manufacturers serving automotive, marine, recreational vehicle, and other specialized markets. A wire carrying UL, SAE J1127, and BC5W2 certifications can serve industrial control panels, automotive harnesses, and marine electrical systems—dramatically expanding market reach and application flexibility with minimal inventory investment.

Practical MTW/TEW Wire Selection Guide

Selecting the optimal MTW/TEW wire for your application requires systematic consideration of several critical factors. Begin with basic electrical requirements: determine the operating voltage (typically well under the 600-volt rating) and expected operating temperature (usually within the 105°C capability but important to verify).

Next, evaluate the installation environment carefully. Will the wire operate in dry locations like control cabinets and equipment housings, or might it encounter moisture, oils, coolants, or other contaminants? Dry environments suit either MTW or TEW wire, while applications with occasional moisture or chemical exposure benefit from the enhanced corrosion resistance of tinned copper MTW wire.

Consider flexibility requirements based on installation routing and service conditions. Applications with tight bends, frequent movement, or vibration demand stranded conductors for fatigue resistance. Static installations in spacious enclosures may accept solid conductors in smaller gauge sizes.

Review applicable regulatory requirements and customer specifications. Does your application specifically call for MTW wire, TEW wire, or allow either? Are additional certifications like SAE J1127 or BC5W2 required for automotive or marine applications? Dual-rated MTW/TEW wire with supplementary certifications often provides the most versatile solution.

Use the common dual rating guide to match your conductor size with available UL styles. For example:

• 18-10 AWG: Look for UL 1015/UL 1028 dual-rated options for maximum flexibility

• 8-6 AWG: Consider UL 1015/UL 1028/UL 1283 tri-rated wire when available

• 4-2 AWG and larger: Verify UL 1015/UL 1028 dual ratings for broad application coverage

Engineers working on equipment serving multiple markets should prioritize dual-rated MTW/TEW wire with SAE and BC5W2 certifications, enabling single-product solutions across industrial, automotive, and marine applications. Panel shops and contractors benefit from stocking multi-rated wires in common sizes (14, 12, 10, 8 AWG) to cover the majority of control circuit and power distribution needs.

Frequently Asked Questions About MTW/TEW Wire

What is the main advantage of dual-rated MTW/TEW wire over single-rated products?

Dual-rated wire reduces inventory complexity while providing maximum installation flexibility. A single product meets requirements for both machine tool and general equipment applications, satisfying inspectors and specifications calling for either designation. This simplifies procurement, reduces stocking costs, and eliminates the risk of using incorrect wire when specifications are ambiguous.

Can I use MTW wire in wet locations?

Standard MTW wire is rated for dry locations only. If your application involves wet or damp conditions, specify wire with appropriate wet location ratings such as MTW/AWM or consult with your wire supplier about moisture-resistant alternatives. Always verify that wire markings include wet location approval when such conditions exist.

Why does conductor tinning matter for MTW wire?

Tinned copper conductors resist oxidation and corrosion far better than bare copper, especially in environments with temperature cycling, occasional condensation, or long-term storage before installation. The tin coating ensures reliable electrical connections in terminal blocks even after years of service, reducing maintenance issues in industrial equipment.

What insulation thickness do I need for my application?

Insulation thickness depends on conductor size and required UL style. Refer to UL style specifications or consult with your wire supplier to verify that insulation meets requirements for your intended application. Thicker insulation generally provides better voltage withstand and physical protection but reduces flexibility.

Can MTW/TEW wire replace THHN/THWN in building wiring?

While both wire types carry 600-volt ratings, THHN/THWN is specifically designed for building wiring in conduit and cable tray systems with different insulation characteristics and NEC approval for branch circuit wiring. MTW/TEW wire serves equipment internal wiring and control circuits. Always match wire type to specific NEC and local code requirements for your installation.

Conclusion: Why Choose MTW/TEW Wire?

MTW and TEW wire represent proven, cost-effective solutions for industrial equipment, control panels, appliances, and machine tools requiring reliable electrical connections in demanding environments. The robust PVC insulation delivers heat resistance to 105°C, voltage capacity to 600 volts, and reliable performance despite exposure to oils, coolants, and moisture. Tinned copper options provide superior corrosion resistance for long-term reliability, while bare copper constructions maximize conductivity and cost-effectiveness.

The widespread availability of dual-rated MTW/TEW wire with supplementary certifications like SAE J1127 and BC5W2 transforms a basic wire selection into a strategic advantage. Equipment manufacturers reduce inventory costs while ensuring comprehensive code compliance. Contractors and panel builders maintain smaller stock levels without sacrificing capability or approval coverage. Engineers gain flexibility to specify single wire products across multiple equipment lines and applications.

Whether you're wiring industrial automation systems, building control panels, designing appliances, or maintaining manufacturing equipment, MTW/TEW wire delivers the combination of electrical performance, mechanical durability, and regulatory compliance essential for safe, reliable operation. By understanding the construction details, UL ratings, dual-listing opportunities, and application requirements outlined in this guide, you can confidently select machine tool wire and thermoplastic equipment wire that meets your specific needs while optimizing costs and inventory management.
