What's the Procedure for Replacing Damaged Outer Sheaths on Port Crane Cables?

Introduction

Port crane operations demand exceptional reliability from electrical systems, with cables serving as the critical lifeline connecting power and control signals throughout these massive machines. The outer sheath of port crane cables acts as the primary defense against harsh marine environments, protecting internal conductors from saltwater corrosion, UV radiation, and mechanical damage. When these protective barriers fail, the consequences extend far beyond simple maintenance concerns.

Maintaining outer sheaths in port crane cables represents a fundamental aspect of operational safety and equipment longevity. Unlike land-based industrial applications, port environments subject cables to unique stressors including salt spray, constant moisture, extreme temperature fluctuations, and relentless mechanical flexing during load handling operations. These conditions accelerate sheath deterioration, making proactive maintenance essential for preventing catastrophic failures.

Common causes of sheath damage in port environments include abrasion from cable drums and pulleys, UV degradation from prolonged sun exposure, chemical attack from salt deposits, and fatigue cracking from repetitive bending cycles. Additionally, improper cable routing, inadequate support systems, and mechanical impacts from cargo handling equipment contribute significantly to premature sheath failure.

The impact of damaged sheaths on cable lifespan and operational safety cannot be overstated. Compromised outer protection allows moisture ingress, leading to insulation degradation, conductor corrosion, and eventual electrical failures. These failures often manifest during critical operations, resulting in costly downtime, potential safety hazards, and emergency repair situations that could have been prevented through proper sheath maintenance.

Identifying Sheath Damage on Port Crane Cables

Effective identification of sheath damage requires systematic visual inspection techniques combined with diagnostic testing methods. Maintenance personnel should examine cables for surface cracks, deep abrasions, punctures, and longitudinal tears that compromise the protective barrier. Pay particular attention to areas where cables enter junction boxes, pass through cable drums, and contact support structures.

Visual inspection tips for detecting damage include checking for discoloration patterns indicating UV degradation, white residue suggesting salt crystallization, and surface roughening from abrasive wear. Look for stress whitening in polymer sheaths, which indicates material fatigue before visible cracking occurs. Areas showing significant wear patterns or deformation require immediate attention to prevent progression to complete sheath failure.

Saltwater, UV exposure, and mechanical stress create a synergistic degradation effect that accelerates sheath deterioration beyond what individual factors would cause. Salt deposits create localized stress concentrations while retaining moisture against the sheath surface. UV radiation breaks down polymer chains, reducing flexibility and creating brittle zones susceptible to cracking. Mechanical stress from cable movement then propagates these weakened areas into significant failures.

Using insulation resistance tests helps confirm underlying issues when visual inspection suggests potential problems. Reduced insulation resistance readings often indicate moisture penetration through damaged sheaths, even when the breach isn't immediately visible. Conduct these tests using megohm meters at appropriate voltage levels, following manufacturer specifications for the specific cable construction and voltage rating.

Safety Considerations Before Sheath Replacement

Safety protocols for cable maintenance in port environments require rigorous adherence to established procedures, beginning with comprehensive lock-out/tag-out (LOTO) procedures for de-energizing cables. Verify complete isolation of all power sources feeding the affected cable circuits, including primary power, control circuits, and any backup or emergency systems. Multiple technicians should verify isolation using appropriate testing equipment before beginning work.

Personal protective equipment (PPE) requirements for port crane cable work include arc-rated clothing, insulated gloves, safety glasses, hard hats, and slip-resistant footwear suitable for marine environments. Environmental protection protocols should address potential exposure to hazardous materials including lead-based cable sheaths in older installations, asbestos-containing materials, and chemical residues from port operations.

Compliance with AS/NZS 2802 and IEC standards for cable handling in port operations ensures work practices meet international safety requirements. These standards specify minimum clearances, grounding requirements, and testing procedures that must be followed during maintenance activities. Document all safety measures taken and maintain records demonstrating compliance with applicable regulations.

Tools and Materials Required

Successful outer sheath replacement demands specialized tools designed for marine-grade cable work. Essential equipment includes precision cable sheath cutters capable of scoring polymer materials without damaging underlying layers, adjustable strippers for various cable diameters, and sealing kits appropriate for the specific environmental conditions.

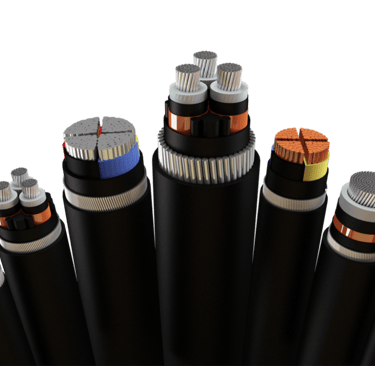

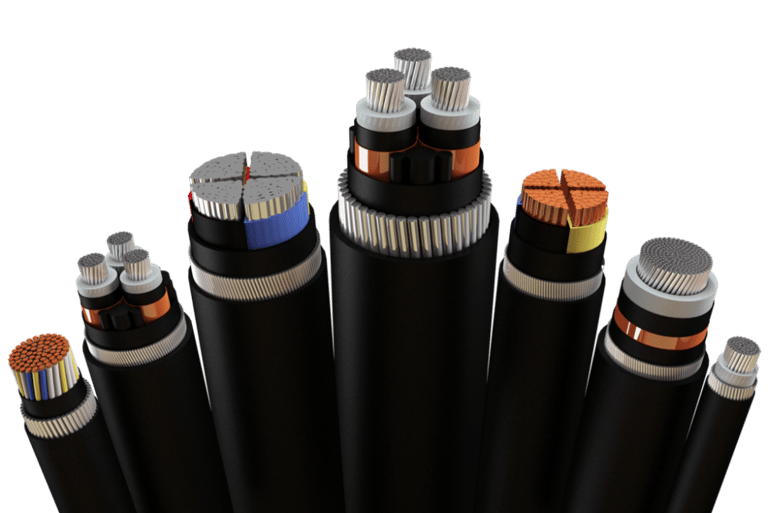

Cable sheath cutters should feature sharp, replaceable blades and depth adjustment mechanisms to ensure consistent cutting without conductor damage. Strippers must accommodate the specific cable construction, including any armor layers or metallic tape shields beneath the outer sheath. Professional-grade tools provide better control and reduce the risk of accidental damage to critical cable components.

Heat shrink tubing or cold-applied rejacketing sleeves serve as replacement sheath materials, with selection depending on cable specifications and environmental requirements. Heat shrink products offer excellent sealing properties and mechanical protection but require careful temperature control during application. Cold-applied sleeves provide easier installation in confined spaces but may require additional sealing measures.

Marine-grade sealants and corrosion inhibitors protect connection points and ensure long-term reliability in salt-laden environments. These materials must resist UV degradation, maintain flexibility across temperature ranges, and provide effective moisture barriers. Select products specifically rated for marine applications and compatible with existing cable materials.

Step-by-Step Procedure to Replace Damaged Outer Sheaths

Step 1: Isolate and mark the damaged section

Begin by clearly marking the extent of damage using permanent markers or tape, extending boundaries at least 50mm beyond visible deterioration to ensure complete removal of compromised material. Photograph the damage for documentation purposes and to assist in material selection for the replacement.

Step 2: Remove the damaged sheath using proper tools

Score the damaged sheath circumferentially at marked boundaries using appropriate cutting tools, maintaining consistent depth to avoid damaging underlying layers. Make longitudinal cuts between circumferential scores, creating removable sections. Work systematically to prevent accidental cuts into conductor insulation or armor layers.

Step 3: Inspect the underlying insulation and conductors

Examine exposed areas for signs of moisture ingress, corrosion, or mechanical damage to conductor insulation. Check for discoloration, softness, or other indicators of degradation that might require additional repairs. Document any secondary damage discovered during inspection.

Step 4: Clean and prepare the surface for re-sheathing

Remove all residual sheath material, adhesive residues, and contaminants from the cable surface using appropriate solvents and cleaning tools. Ensure the surface is completely dry before proceeding with sheath application. Apply corrosion inhibitor to any exposed metallic components.

Step 5: Apply new sheath using heat-shrink or rejacketing methods

Position replacement sheath material over the prepared area, ensuring adequate overlap with existing sheath material on both ends. For heat-shrink applications, apply heat evenly using appropriate equipment while monitoring temperature to prevent overheating. Cold-applied sleeves require proper surface preparation and adhesive activation according to manufacturer instructions.

Step 6: Seal and test the cable for mechanical strength and insulation integrity

Apply marine-grade sealant at all interface points between new and existing sheath materials, ensuring complete coverage and proper curing time. Conduct mechanical flexibility tests by carefully bending the repaired section through its normal operating range. Perform insulation resistance testing to verify electrical integrity before returning the cable to service.

Post-Replacement Testing and Verification

Comprehensive testing following sheath replacement ensures repair quality and long-term reliability. Conducting insulation resistance and continuity tests validates that the repair hasn't compromised electrical performance. Use appropriate test voltages based on cable specifications and maintain test duration sufficient to detect potential weaknesses.

Visual inspections for sealing integrity and mechanical flexibility should examine all interface points between new and existing materials. Check for proper adhesion, absence of air bubbles or voids, and smooth transitions that won't create stress concentrations during cable movement. Verify that repaired sections maintain the same flexibility characteristics as undamaged portions.

Recommended waiting time before reactivation varies depending on materials used and environmental conditions. Allow adequate curing time for all sealants and adhesives before subjecting cables to mechanical stress or electrical loading. Consult material specifications for specific timing requirements and consider extending cure times in high-humidity environments.

Preventive Measures to Avoid Future Sheath Damage

Implementing proper cable guidance systems significantly reduces mechanical stress that leads to sheath failure. Modern cable management systems including precision rollers, festoon systems, and motorized reeling equipment distribute loads evenly and minimize abrasive contact. Regular maintenance of these systems ensures continued protection of cable sheaths.

Selecting abrasion-resistant sheathing materials appropriate for port environments provides enhanced durability against common failure mechanisms. Polyurethane (PUR) compounds offer excellent abrasion resistance and flexibility, while thermoplastic elastomers (TPE) provide superior chemical resistance. Rubber compounds remain viable for specific applications requiring maximum flexibility.

Periodic maintenance and environmental checks in port settings should include documentation of cable routing changes, assessment of support system condition, and monitoring of environmental factors affecting cable life. Establish inspection schedules based on operating conditions and maintain detailed records to identify trends in sheath performance.

When to Replace vs. When to Retire the Cable

How do you determine if a cable should be repaired or replaced entirely?

Evaluating sheath damage severity requires assessment of multiple factors including extent of damage, location of failures, and overall cable condition. Minor localized damage in low-stress areas often justifies repair, while extensive damage affecting multiple locations may indicate systemic problems requiring complete cable replacement.

Criteria for cable retirement include conductor exposure over significant lengths, multiple sheath failures indicating material degradation, or damage to critical areas such as terminations or high-flex zones. Consider the cable's service history, age, and strategic importance when making replacement decisions.

What are the cost implications of repair versus replacement?

While sheath repair costs significantly less than complete cable replacement, multiple repairs may indicate declining overall reliability. Factor in potential downtime costs, safety risks from repeated failures, and the cumulative expense of ongoing repairs when evaluating replacement options.

Conclusion

Replacing damaged sheaths represents a critical maintenance practice that extends cable service life while maintaining operational safety in demanding port environments. The systematic approach outlined ensures repairs meet professional standards while addressing the unique challenges of marine applications.

Port crane operators should integrate sheath repair procedures into comprehensive cable maintenance programs, combining regular inspection schedules with proactive repair protocols. This approach maximizes equipment reliability while minimizing unplanned downtime and associated costs.

Success in port crane cable maintenance depends on understanding the relationship between environmental conditions, cable design, and maintenance practices. By implementing proper repair procedures and preventive measures, operators can achieve optimal cable performance and extended service life in challenging marine environments.

The investment in proper tools, materials, and training for sheath replacement procedures pays dividends through improved reliability, reduced emergency repairs, and enhanced operational safety. As port operations continue to intensify, maintaining critical infrastructure components like crane cables becomes increasingly important for sustained productivity and competitiveness.
