Why Do Port Crane Cables Get Hot ？Understanding Cable Overheating in Heavy-Duty Industrial Applications

Introduction

Port crane cables serve as the lifeline of modern container terminals, enabling the seamless transfer of electrical power and control signals to massive lifting equipment that handles millions of tons of cargo annually. These heavy-duty cables must withstand extreme operational demands while maintaining reliable performance in harsh maritime environments. However, one of the most critical challenges facing port operators is the recurring issue of cable overheating during crane operations.

Why do port crane cables get hot during normal operations? This question has plagued port engineers and maintenance teams worldwide, as overheating represents a significant threat to operational continuity and safety. When cables exceed their thermal limits, the consequences can be severe: insulation damage compromises electrical integrity, short circuits create dangerous arc flash hazards, and unexpected system downtime can cost ports thousands of dollars per hour in lost productivity.

Understanding the root causes of cable overheating is essential for preventing catastrophic failures and ensuring the longevity of port crane systems. The thermal failure in port crane cable systems often stems from a complex interplay of design inadequacies, operational stresses, and environmental factors that collectively push these critical components beyond their thermal thresholds.

Understanding Cable Overheating

Cable overheating occurs when the temperature of conductors or insulation materials exceeds their design specifications, leading to accelerated degradation and potential failure. In electrical cables, heat generation is primarily governed by the I²R relationship, where current (I) squared multiplied by resistance (R) determines the power dissipated as heat. When this thermal energy cannot be adequately dissipated to the surrounding environment, temperatures rise dangerously.

Industrial cable design standards typically establish temperature thresholds based on insulation materials. For instance, PVC insulation commonly used in port applications has a maximum operating temperature of 70°C under normal conditions, while XLPE (cross-linked polyethylene) can handle up to 90°C. Specialty high-temperature insulations like EPR (ethylene propylene rubber) can withstand 105°C, making them suitable for demanding crane applications.

The signs and symptoms of overheating manifest in various ways that trained technicians can identify during routine inspections. Visual indicators include insulation discoloration, particularly the yellowing or browning of cable sheaths that were originally bright colors. A distinct acrid odor often accompanies thermal degradation, as polymer chains break down and release volatile compounds. Physical changes such as cable stiffness, cracking, or brittleness indicate that the insulation has exceeded its thermal limits and may be approaching failure.

Common Causes of Overheating in Port Crane Cables

Undersized Cable Design (Inadequate Current-Carrying Capacity)

One of the most fundamental causes of cable overheating in cranes involves inadequate current-carrying capacity, known as ampacity. When cables are undersized for their intended application, they cannot safely handle the electrical loads without generating excessive heat. This problem often stems from miscalculations during the design phase, where engineers may underestimate the actual current requirements of modern crane systems.

Consider a typical container crane application where the main hoist motor requires 400 amperes during peak lifting operations. If the cable was originally sized for 300 amperes based on older equipment specifications, the additional 100 amperes creates a 78% increase in I²R losses, dramatically elevating conductor temperatures. This scenario becomes particularly problematic in high-duty cycle operations where cranes operate continuously with minimal cooling periods.

Compliance with recognized standards such as AS/NZS 3008 or IEC 60364 is crucial for proper cable sizing. These standards provide comprehensive ampacity tables that account for various installation conditions, ambient temperatures, and grouping factors. However, the dynamic nature of crane operations, with frequent starting currents and variable loads, requires additional derating factors that are sometimes overlooked in traditional calculations.

Mechanical Stress and Repeated Flexing

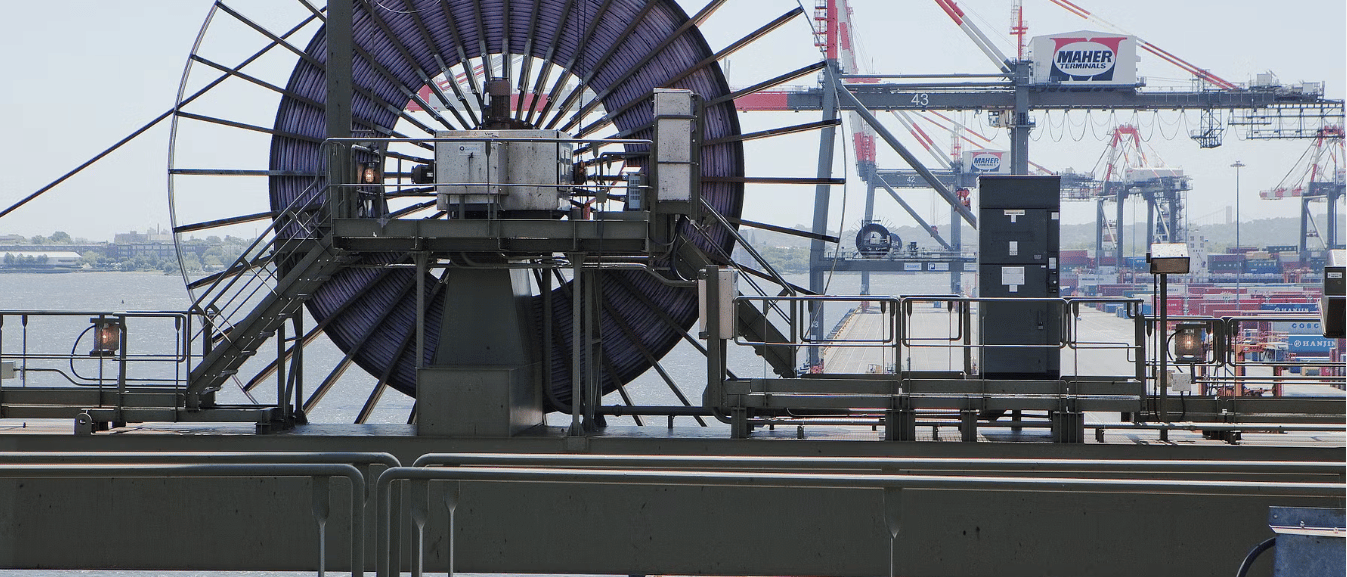

Port cranes subject cables to extreme mechanical stresses through continuous bending and reeling operations. As cables wind onto drums in single or multi-layer configurations, they experience repeated flexing cycles that can number in the millions over their service life. This mechanical fatigue gradually increases electrical resistance as conductor strands break and connections loosen, leading to localized heating.

The reeling process creates additional challenges as cables must maintain electrical integrity while being subjected to tension, compression, and bending forces simultaneously. Standard building cables are simply not designed for this type of dynamic application, which is why specialized high-flex cables with reinforced conductor designs are essential for crane applications.

How to prevent overheating in reeling cables requires careful attention to cable construction details. Multi-strand conductors with fine wire construction provide superior flexibility compared to solid or compressed conductors. Additionally, the use of separator materials between conductor layers helps prevent strand-to-strand contact that could create hot spots during flexing operations.

Environmental Factors

The harsh maritime environment surrounding ports creates unique challenges for cable thermal management. High ambient temperatures, particularly in tropical and subtropical regions, reduce the temperature differential available for heat dissipation. When ambient temperatures approach 40°C or higher, cables operating near their thermal limits have minimal safety margin.

Sunlight exposure compounds this problem through radiative heating of cable sheaths, particularly for black-colored cables that absorb significant solar energy. Salt corrosion in coastal ports creates additional resistance at connection points, generating localized hot spots that can propagate along the cable length.

Poor ventilation in cable trays or conduits restricts natural convection cooling, creating thermal pockets where heat accumulates. This problem is especially acute in enclosed cable galleries or equipment rooms where multiple cables are bundled together. Moisture ingress represents another significant factor, as water contamination increases internal resistance and creates conditions for electrical tracking and arcing.

Electrical Overload and Harmonics

Modern crane systems increasingly rely on Variable Frequency Drives (VFDs) to provide precise motor control and energy efficiency. However, these electronic controllers generate harmonics that can cause unexpected heating in cable systems. Harmonics create additional current components at frequencies above the fundamental 50 or 60 Hz, leading to increased I²R losses and skin effect phenomena.

The impact of harmonics from VFD systems is particularly problematic because these high-frequency components tend to concentrate near the conductor surface, creating localized heating that may not be detected by conventional thermal monitoring. This phenomenon can lead to cable sheath breakdown and insulation failure even when the fundamental frequency current appears to be within acceptable limits.

Excess current draw during peak crane operations, such as simultaneous lifting and trolley movements, can push cables beyond their thermal design limits. The causes of cable overheating in cranes often involve operational patterns that exceed the original design assumptions, particularly when ports increase throughput without corr

Case Study: Overheated Cable Failure at a Major Port

A recent incident at a Southeast Asian container terminal illustrates the complex nature of port cable overload and insulation breakdown. The port operated four ship-to-shore cranes equipped with 6.6 kV power cables that had been in service for approximately eight years. During a routine inspection, maintenance personnel noticed a strong burning odor emanating from the cable gallery beneath Crane 3.

The diagnosis process began with infrared thermography, which revealed several hot spots along the main power cable where temperatures exceeded 120°C - well above the 90°C rating of the XLPE insulation. Further investigation using insulation resistance testing showed degraded insulation integrity at multiple locations along the cable length.

Root cause analysis revealed a combination of factors contributing to the failure. The original cable sizing calculation had underestimated the duty cycle requirements, resulting in a cable that was marginally adequate for normal operations but insufficient for the increased container throughput implemented two years earlier. Environmental factors, including poor ventilation in the cable gallery and salt contamination from nearby seawater, exacerbated the thermal stress.

The lessons learned from this incident emphasized the importance of regular thermal monitoring and the need to reassess cable capacity when operational parameters change. The port subsequently implemented a comprehensive cable management program that included quarterly infrared inspections and upgraded ventilation systems in critical cable areas.

How to Prevent Overheating in Port Crane Cable Systems

Preventing thermal failure in port crane cable systems requires a comprehensive approach that addresses design, installation, and maintenance factors. Cable selection best practices begin with accurate load calculations that account for actual operational duty cycles, starting currents, and future expansion requirements. Proper sizing should include appropriate derating factors for ambient temperature, grouping effects, and harmonic content.

The use of cables specifically designed for VFD and high-flex applications, such as NGFLGOEU or 241.1 specifications, provides enhanced thermal and mechanical performance compared to standard industrial cables. These specialized cables feature constructions optimized for dynamic applications, including fine-strand conductors, enhanced insulation systems, and robust outer sheaths.

Regular inspection and predictive maintenance programs using thermal cameras enable early detection of developing problems before they result in catastrophic failures. Thermal imaging should be performed at least quarterly, with particular attention to connection points, cable entry areas, and locations where cables experience mechanical stress.

Adherence to recognized standards such as AS/NZS 2802, AS/NZS 5000.1, and IEC 60228 ensures that cable installations meet industry best practices for safety and performance. These standards provide comprehensive guidance on cable selection, installation methods, and testing procedures that help prevent overheating issues.

Recommended Cable Technologies for Overheat Mitigation

Advanced cable technologies specifically designed for port crane applications offer superior thermal performance and reliability. Tinned copper conductors provide excellent corrosion resistance in marine environments while maintaining optimal electrical conductivity. The tin coating prevents copper oxidation that could increase resistance and generate heat over time.

Compacted conductors, where the conductor strands are compressed to reduce overall diameter, offer improved thermal performance by reducing air gaps within the conductor bundle. This construction technique increases the effective cross-sectional area of copper while improving heat dissipation characteristics.

Polyurethane (PUR) sheaths provide exceptional abrasion and chemical protection while maintaining flexibility in low-temperature conditions. PUR materials resist salt spray, oil contamination, and UV degradation better than conventional PVC or rubber compounds, contributing to longer service life and reduced maintenance requirements.

Temperature-monitoring cable systems represent the latest advancement in thermal management technology. These systems incorporate fiber optic sensors or thermocouples integrated into the cable construction, providing real-time temperature monitoring along the entire cable length. This technology enables predictive maintenance strategies that can prevent failures before they occur.

Conclusion

Understanding why port crane cables overheat during operation is crucial for maintaining safe and reliable port operations. The complex interplay of electrical, mechanical, and environmental factors creates unique challenges that require specialized solutions and careful attention to detail. From undersized cable design and mechanical stress to environmental factors and electrical overload, each contributing factor must be addressed through proper design, selection, and maintenance practices.

The consequences of crane cable failure extend far beyond simple equipment replacement costs, encompassing safety risks, environmental concerns, and significant operational disruptions. By implementing comprehensive thermal management strategies that include proper cable sizing, advanced cable technologies, regular monitoring, and adherence to industry standards, port operators can minimize the risk of overheating-related failures.

The key to success lies in recognizing that cable thermal management is not a one-time design consideration but an ongoing operational responsibility. Regular thermal inspections, predictive maintenance programs, and proactive replacement of aging cables before they reach their thermal limits are essential components of a comprehensive cable management strategy.

For port operators facing cable overheating challenges, consulting with marine and crane cable specialists who understand the unique demands of port environments is essential. These experts can provide valuable guidance on cable selection, installation best practices, and maintenance strategies that will ensure reliable operation while minimizing the risk of thermal failures. The investment in proper cable systems and thermal management practices pays dividends through improved reliability, reduced maintenance costs, and enhanced operational safety.
