Type 440 Mining Cable – AS/NZS 2802 Heavy-Duty Trailing & Reeling Cable, 1.1kV–11kV
Metal-Screened Power Cores with Three Pilot Cores, Designed for Long Cable Runs Requiring Low Pilot Resistance – High Flexibility, Abrasion & Weather Resistant
$10.00
Technical Specifications
Parameter | Description |
|---|---|
Cable Type | Class 2 Composite Screened Trailing Cable |
Applicable Standards | AS/NZS 2802 |
Rated Voltage | 1.1/1.1 kV to 11/11 kV |
Conductor Material | Tinned copper (three cores plus three pilot conductors) |
Insulation | EPR (R-EP-90), white |
Insulation Tape | Textile for 1.1/1.1 kV; Semiconductive screen for ≥3.3 kV |
Screen | Composite screen (tinned annealed copper wire and polyester yarn) |
Core Colours | Red, White, Blue, with braid tracers |
Pilot Conductors | Three elastomer-covered, proofed tape pilots in cable interstices |
Sheath | Heavy duty HD-85-PCP with optional Kevlar® polyaramid yarn braid reinforcement |
Maximum Operating Temperature | +90 °C |
Minimum Operating Temperature | -25 °C |
Flexibility | Flexible |
Chemical Resistance | Very good — suitable for frequent chemical exposure |
Mechanical Impact Resistance | Heavy duty |
Water Resistance | Suitable for immersion and temporary coverage |
UV and Weather Resistance | Suitable for direct solar radiation and outdoor exposure |

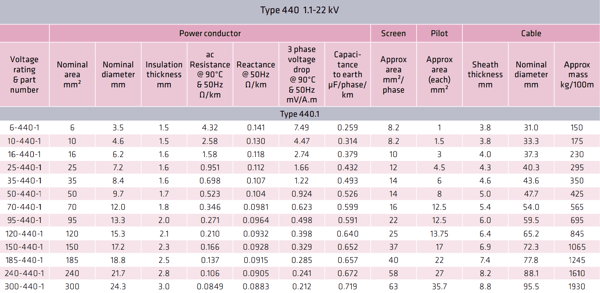

Type 440.1

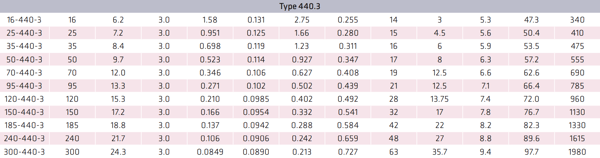

Type 440.3

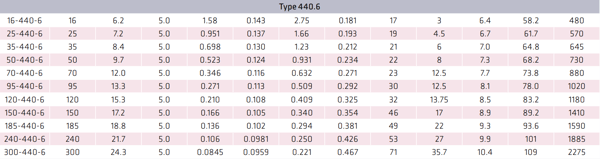

Type 440.6

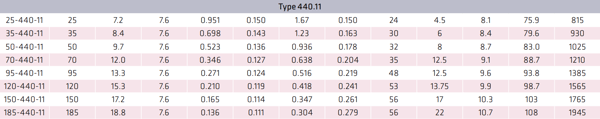

Type 440.11
Type 440.22

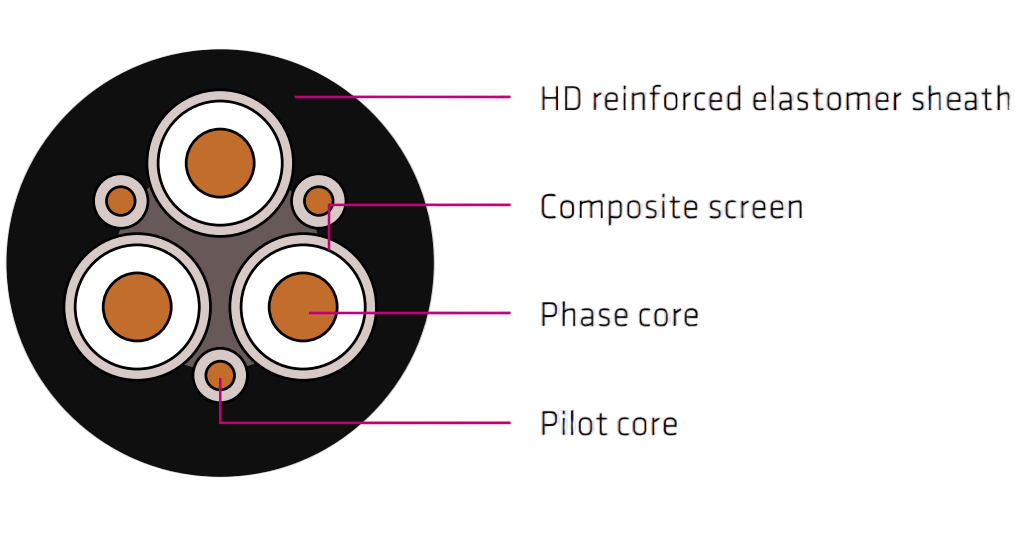

Type 440 is a Class 2 composite screened trailing cable designed to AS/NZS 2802 standards. Featuring metal-screened power cores and three pilot conductors, this cable is engineered for trailing and most reeling applications requiring good flexibility and high resistance to abrasion and weathering. It excels in long cable runs where pilot resistance requirements exceed those achievable with Type 409 or 441 cables. The cable construction ensures superior durability and reliable performance in demanding mining environments.
Product Features
Triple Pilot Conductors: Equipped with three pilot cores to meet stringent pilot resistance requirements for long cable lengths.
Heavy-Duty Construction: Metal-screened power cores combined with a robust composite screen and heavy-duty sheath provide excellent abrasion and weather resistance.

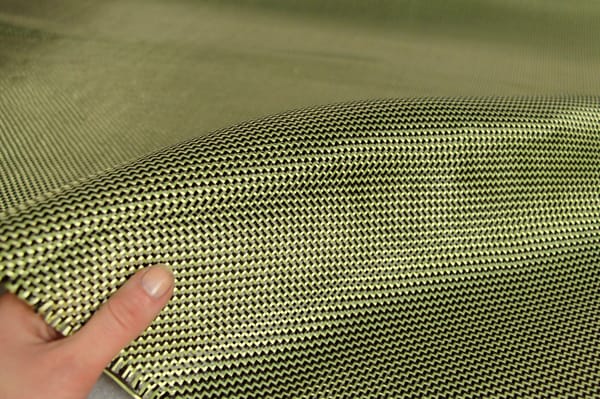

Kevlar® Reinforcement: Optional polyaramid yarn (Kevlar®) braid sheath reinforcement for superior tear and cut-through protection.
Flexible and Reliable: Designed for trailing and reeling applications, balancing durability with flexibility.
Fire Retardant: Complies with AS/NZS 2802 fire retardant standards.
Application Areas

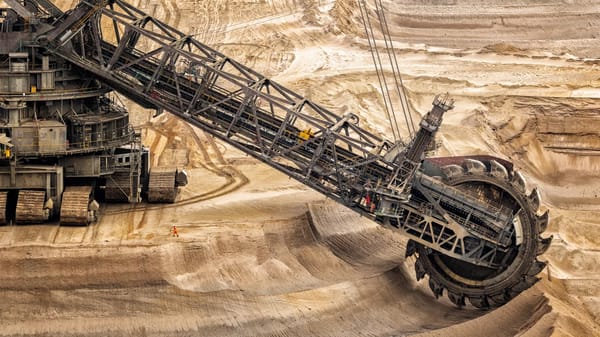

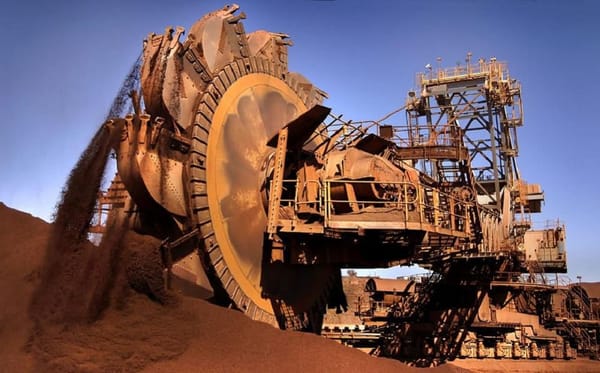

Ideal for trailing cable applications in mining where long cable runs are required, such as mobile equipment and other demanding environments where pilot resistance is critical.
Quality Certifications
AS/NZS 2802
Installation and Maintenance
Suitable for installation in free air and on mobile equipment. Follow AS/NZS installation standards and perform regular inspections to maintain cable integrity.
Customization Services
Kevlar® braid reinforcement and custom cable lengths available on request to suit specific project requirements.
Contact Us
For quotations, detailed datasheets, and customized mining cable solutions, please contact our sales or technical support teams.
