XAP CU/XLPE/PVC/AWA/PVC (SINGLE CORE) XLPE Insulated,PVC Bedded,Aluminium Wire Armoured,PVC Sheathed Cable, 0.6/1kV,IEC60502

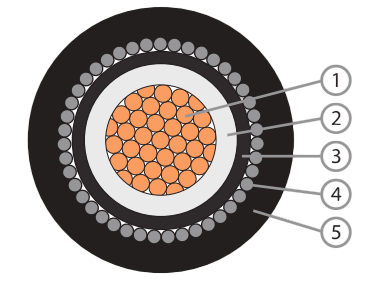

Component 1. Plain Annealed Copper Wire 2.Cross-linked Polyethylene Compound 3.PVC Compound 4. Aluminium Wire Armoured 5.PVC Compound
CONSTRUCTION Conductor: |
Plain Annealed Copper,Class 2 Stranded Circular or Compacted | ||
Insulation: | Cross-linked Polyethylene(XLPE) Compound | ||
Insulation Colour: Bedding: | Natural Polyvinyl |
Chloride(PVC)Compound | |
|
|
| |
Bedding Coolur: | Type ST2 Black |
| |
Armour: Outer Sheath: | Aluminium Polyvinyl Type ST2 | Wire Armoured (AWA) Chloride(PVC)Compound | |
|
|
| |
Outer Sheath Colour: | Black | ||
ELECTRICAL CHARACTERISTICS Operating VoltageUo/U: 0.6/1KV Operating Temperature: -15℃ to 90℃ |
Final Short Circuit Temperature: 250℃ |
REFERENCE STANDARDS Design Specification: Conductor: | IEC60502-1 IEC60228,BS EN60228 |
Flame Retardancy: IEC60332-1,BS EN60332-1 | |
INSTALLATION REFERENCE | |
Min.Bending Radius(mm): 8xcable overalldiameter Max.Pulling Tension(N/mm²): 50 | |
