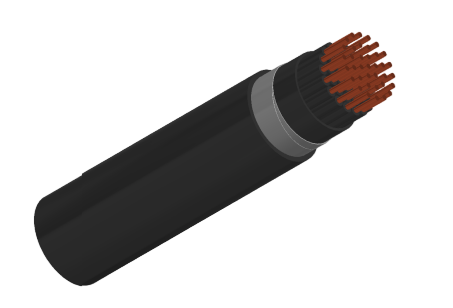

XAV/H1XAV

Application and Description

These cables are suitable for direct burial without extra mechanical protection, fixed to the walls, laid on cable trays or raceways. May also be suitable for use in premises which poses a risk of explosion with mechanical protection is necessary and in this case the intensity must be reduced by 15%.

Standard and Approval

IEC60502-1

NP2365

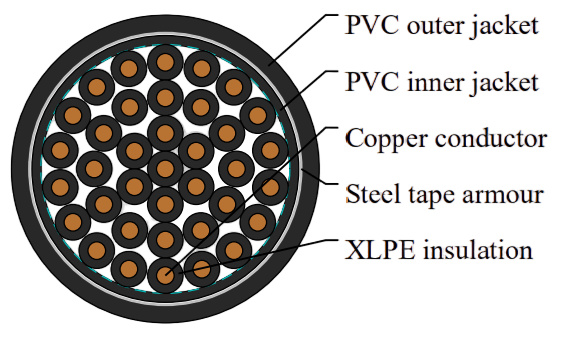

Cable Construction

Flexible copper strands

Strands to NP 2363, ≤4mm²,class 1, ≥6mm²,class 2

XLPE insulation according to NF C 32-321

Color coded to HD 308

Not fibrous and not hygroscopic filler(optional)

PVC inner jacket

Two steel tapes helically wraped armour

Flexible PVC outer jacket

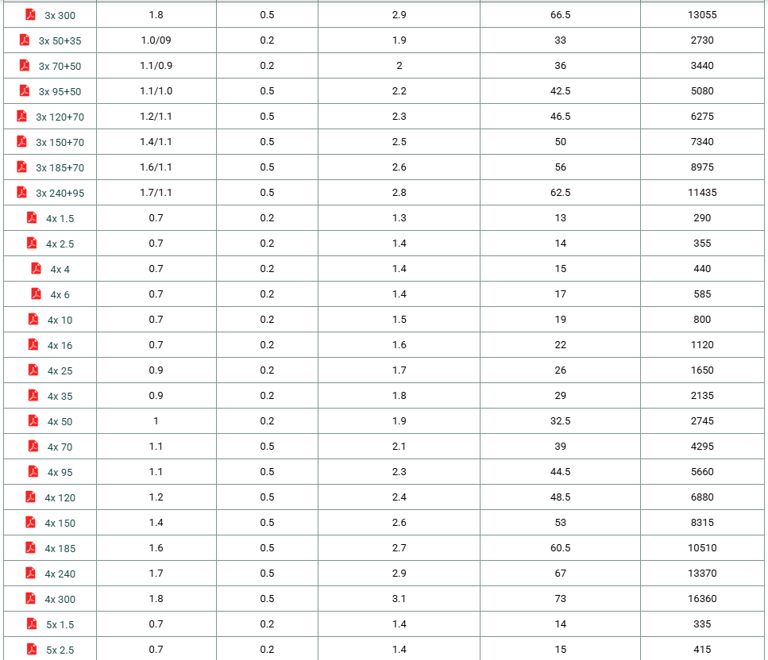

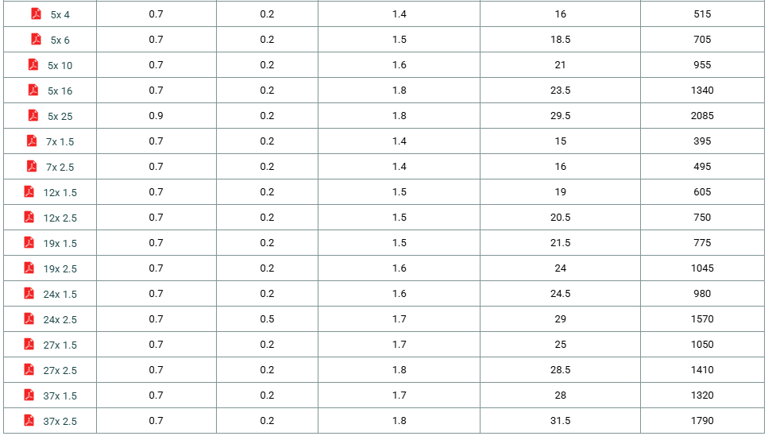

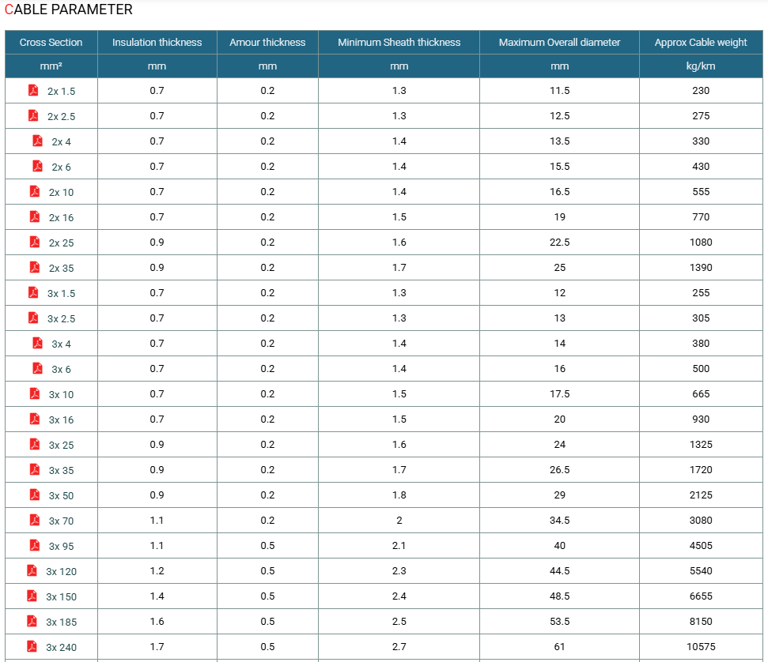

Technical Characteristics
