XCAP CU/XLPE/PVC/CT/PVC/AWA/PVC (SINGLE CORE) XLPEInsulated,PVC Bedded,Copper Tape Screened,PVC Separation Sheath,Aluminium Wire Armoured, PVC Sheathed Cable,0.6/1kV

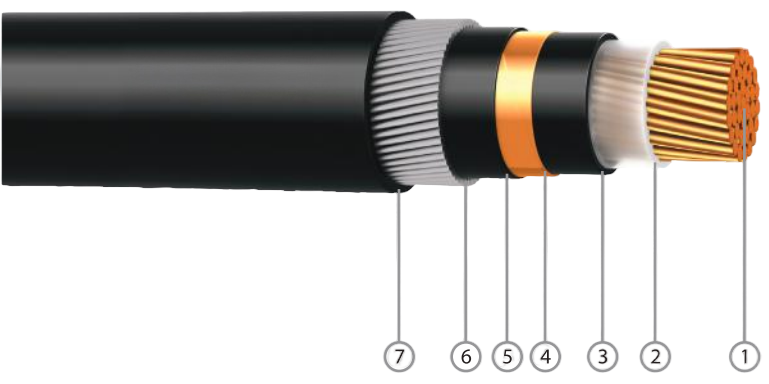

Component 1. Plain Annealed Copper Wire 2. Cross-linked Polyethylene Compound 3.PVC Compound 4. Copper Tape 5.PVC Compound 6. Aluminium Wire Armoured 7.PVC Compound
CONSTRUCTION
Conductor: Plain Annealed Copper,Class 2 Stranded
Circular or Compacted
Insulation: Cross-linked Polyethylene(XLPE)
Compound Insulation Colour: Natural
Bedding: Polyvinyl Chloride(PVC)Compound
Type ST2
Bedding Colour: Black
Screen: Copper Tape
Separaton Sheath: Polyvinyl Chloride(PVC)Compound
Type ST2
Separation Sheath Colour:Black
Armour: Aluminium Wire Armoured (AWA)
Outer Sheath: Polyvinyl Chloride(PVC)Compound
Type ST2
Outer Sheath Colour: Black
ELECTRICAL CHARACTERISTICS
Operating Voltage,Uo/U: 0.6/1kV
Operating Temperature: -15℃ to 90℃
Final Short Circuit Temperature: 250℃
Test Voltage: 3.5kV for 5 minutes
REFERENCE STANDARDS |
|
Design Specification: | IEC60502-1 |
Conductor: | IEC60228,BS EN60228 |
Flame Retardancy: | IEC60332-1,BS EN60332-1 |

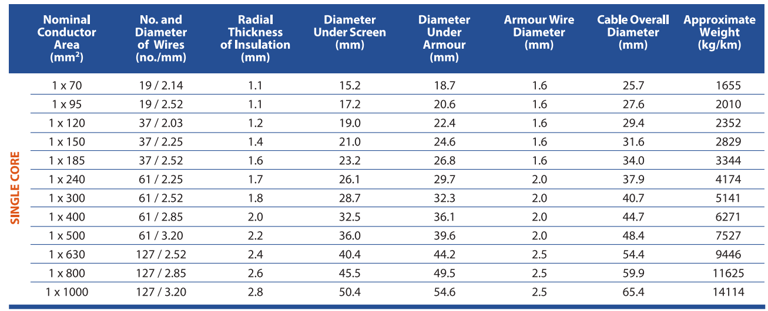

INSTALLATION REFERENCE
Min.Bending Radius(mm): 8×cable overalldiameter
Max.Pulling Tension(N/mm²): 50
