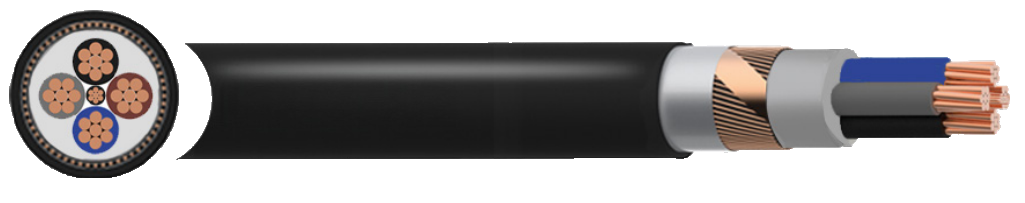

XCMK-HF Cable
The XCMK-HF cable may be laid indoor, outdoor, for fixed installations on wall and on metallic structures.
$20.00
APPLICATION The XCMK-HF cable may be laid indoor, outdoor, for fixed installations on wall and on metallic structures. Direct burial in soil is allowed, as long as the relevant national rules of installations are followed. Halogen free cable are recommended when it is important to avoid thick smoke and corrosive gases, in case of fire or overheating. |
CHARACTERISTICS Voltage Rating Uo/U (Um) 0.6/1 (1.2)kV Temperature Rating Operating: -15ºC to +90ºC Short Circuit Temperature +250°C Minimum Bending Radius 10 x overall diameter |
CONSTRUCTION
Conductor
Up to 6 mm²: Class 1 Circular, solid copper
Up to 10 mm² Class 2 Circular, stranded copper
Above 35mm²: Class 2 Sector shaped, stranded copper
Insulation
XPLE compound (Cross-Linked Polyethylene)
Filler
HFFR compound (Halogen free flame retardant) or tape
Screen
Copper wires and copper tape
Sheath
Halogen free polyolefin
Core Identification
2 core: Blue Brown
3 core: ● Brown ● Black Grey
4 core: ● Blue ● Brown ● Black Grey
Sheath Colour
● Black
