XCP CU/XLPE/PVC/CT/PVC (3 CORES+3 EARTH) XLPE Insulated,PVC Bedded,Copper Tape Screened,PVC Sheathed Cable,0.6/1kV,IEC60502

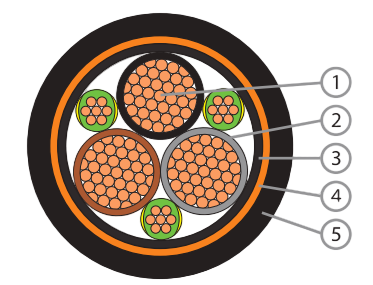

CONSTRUCTION

ELECTRICAL CHARACTERISTICS

Conductor:

Plain Annealed Copper,Class 2 Stranded               Operating      VoltageUo/U:               0.6/1kV

Circular  or  Compacted

Insulation:

Cross-inked     Polyethylene(XLPE) Compound

Operating    Temperature:                 -15℃ to  90℃

Final    Short    Circuit   Temperature:250℃

Insulation    Colour:

Brown,Black,Grey,Green/Yellow(x3)or Red,Yellow,Blue,Green/Yellow(x3)or   Others

Assembly:

Cores  cabled  together  with  filler  and covered  with   Polyester(PET)Tape

Bedding:

Polyvinyl      Chloride(PVC)Compound

Bedding   Colour:

Type ST2                                                                    Flame    Retardancy:                          IEC60332-1,BS   EN60332-1

Black

INSTALLATION REFERENCE

Screen:

Copper  Tape                                                             Min.Bending      Radius(mm):            8xcable       overalldiameter

Outer  Sheath:

Polyvinyl      Chloride(PVC)Compound                     Max.Pulling       Tension(N/mm²):      50

Type ST2

Outer  Sheath  Colour:

Black
