XCP CU/XLPE/PVC/CT/PVC (4CORES) XLPE Insulated,PVC Bedded,Copper Tape Screened,PVC Sheathed Cable,0.6/1kV,IEC60502

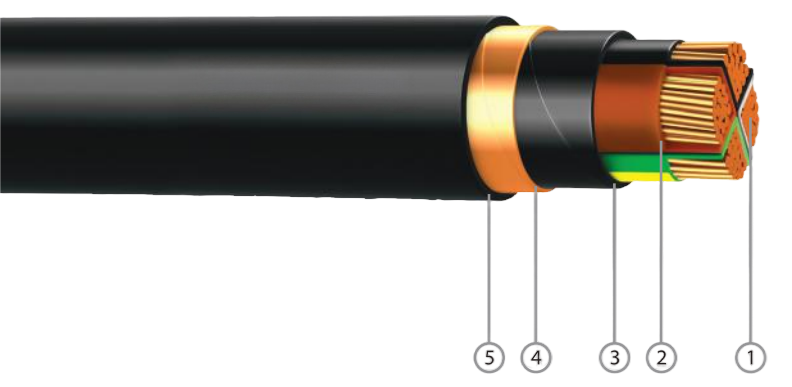

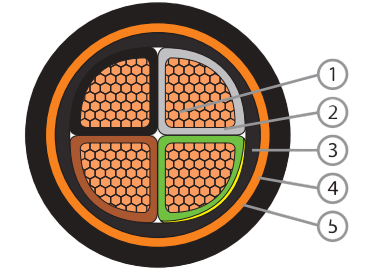

Component 1. Plain Annealed Copper Wire 2. Cross-linked Polyethylene Compound 3.PVC Compound 4. Copper Tape 5. PVC Compound
CONSTRUCTION Conductor: |
Plain Annealed Copper,Class 2 Stranded Circular,Compacted or Sectored |
Insulation: | Cross-linked Polyethylene(XLPE) Compound |
Insulation Colour:
Assembly: | Brown,Black,GreyGreen/Yellow or Others Cores cabled together with filler and covered with Polyester(PET)Tape |
Bedding: | Polyvinyl Chloride(PVC)Compound Type ST2 |
Bedding Colour: | Black |
Screen: | Copper Tape |
Outer Sheath: | Polyvinyl Chloride(PVC)Compound Type ST2 |
Outer Sheath Colour: | Black |
ELECTRICAL CHARACTERISTICS Operating Voltage,Uo/U: 0.6/1kV |
Operating Temperature: -15℃ to 90℃ Final Short Circuit Temperature: 250℃ |
INSTALLATION REFERENCE |
Min.Bending Radius(mm): 8×cable overalldiameter Max.Pulling Tension(N/mm²): 50 |
