XCSP CU/XLPE/PVC/CT/PVC/SWA/PVC (4 CORES) Power Cable

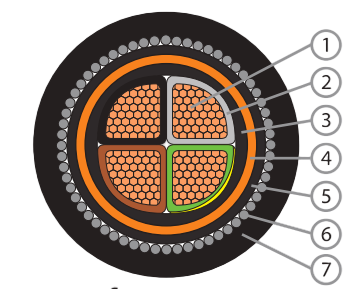

CONSTRUCTION

Conductor:                               Plain  Annealed  Copper,Class  2  Stranded

Circular,Compacted   or   Sectored

Insulation:                                Cross-linked     Polyethylene(XLPE)

Compound

Insulation    Colour:                  Brown,Black,Grey,Green/Yellow   or    Red,

Yellow,Blue,Green/Yellow   or   Others

Assembly:                               Cores  cabled  together  with  filler  and

covered  with   Polyester(PET)Tape

Bedding:                                  Polyvinyl        Chloride(PVC)Compound

Type ST2

Bedding   Colour:                    Black

Screen:                                    Copper  Tape

Separation   Sheath:                Polyvinyl       Chloride(PVC)Compound

Type ST2

Separation    Sheath    Colour:Black

Armour:                                   Galvanized  Steel  Wire  Armoured  (SWA)

Outer   Sheath:                        Polyvinyl       Chloride(PVC)Compound

Type ST2

Outer  Sheath  Colour:            Black

ELECTRICAL CHARACTERISTICS

Operating     Voltage,Uo/U:               0.6/1kV

Operating    Temperature:                -15℃ to 90℃

Final  Short  Circuit  Temperature:    250℃

INSTALLATION REFERENCE

Min.Bending      Radius(mm):            8×cable       overalldiameter

Max.Pulling      Tension(N/mm²):      70
