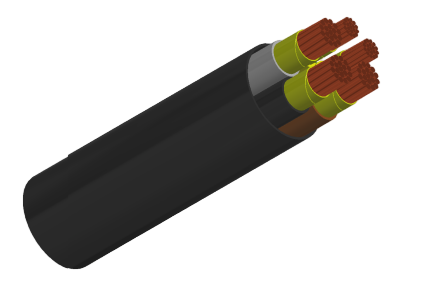

XG (frs)/XZ1(frs)

Cable

Application and Description

These cables are specially designed to transmit electric power in the extrem conditions that there are in a large fire. assuring electric supply to emergency circuits. like signaling lights. fume extractors. acustic alarms. water pumps. etc. In case of fire. it does not emit toxic or corrosive gases. thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason. its use is recommended in public places such as: hospitals. schools. museums. airports. bus terminals. shops in general. tunnels. the underground. etc.. as well as in calculation centres. offices. production plants. laboratories. etc.

Standard and Approval

IEC60502-1

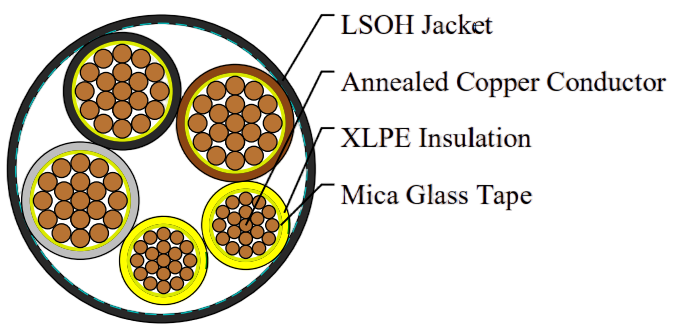

Cable Construction

Plain copper conductor, class 1(<6mm²) / class2(>6mm²) to NP 2363

Mica tape+XLPE insulation

Colour coded to HD 308

Not fibrous and not hygroscopic filler(optional)

Flexible LSOH outer jacket

Technical Characteristics

Voltage Rating	600/1000V
Test voltage	3500 volts
Minimum bending radius	12 x Ø
Operation temperature range	-15ºC to +90ºC
Short-circuit temperature	+250ºC
Halogen free	IEC 60754-1. EN 50267-2-1
No corrosive gases	IEC 60754-2. EN 50267-2-2
No toxic gases	NES 02-713. NFx70-100
Low smoke density	IEC 61034, EN 50268-2
Flame retardant	IEC 60332-1, EN 50265-2-1
Non-flame propagating	IEC 60332-3, EN 50266-2
Insulation resistance	1000 MΩ x km
