XGB F2 1kV Cable
Installation cable for buildings with high concentrations of people or valuable equipment, especially in difficult evacuation conditions.
$15.00
APPLICATION Installation cable for buildings with high concentrations of people or valuable equipment, especially in difficult evacuation conditions. This cable can be used in cable conduit, cable duct, embedded in concrete, cement or walls. It can also be used in open air protected from direct UV rays, in industries and houses. Underground installation is allowed provided the cable is installed in a sufficiently drained tube. Operating temperatures down to -15°C are permitted, only if there are no mechanical forces nor movements. |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Test Voltage 3.5kV AC Temperature Rating Operating: -15ºC to +60ºC Minimum Installation: 0ºC Maximum conductor temperature in service: +90ºC Minimum Bending Radius 12 x overall diamater |

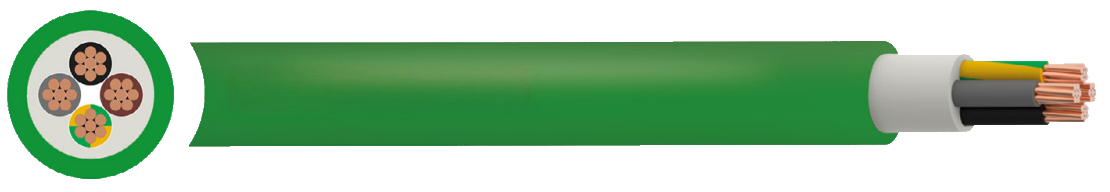

CONSTRUCTION
Conductor
Class 1 Solid copper
Class 2 Stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
Filling compound or HF tape (Halogen free)
Inner Sheath
Filling compound or tape
Outer Sheath
HF Thermoplastic (Halogen free)
Sheath Colour
● Green
