XLPE Cable for Port Applications: What Is Cross-Linked Polyethylene Cable and Why Ports Prefer It

Introduction

In the demanding world of port operations, where massive container cranes move millions of tons of cargo daily and marine terminals operate around the clock, the choice of electrical infrastructure can make or break operational efficiency. At the heart of these complex systems lies a critical component that often goes unnoticed: the power cable. Among the various cable technologies available today, Cross-Linked Polyethylene (XLPE) cable has emerged as the gold standard for port applications.

XLPE cable for port cranes represents a significant advancement over traditional cable insulation materials. Cross-linked polyethylene is fundamentally different from standard polyethylene (PE) or polyvinyl chloride (PVC) insulation. While standard PE molecules exist as separate chains, XLPE undergoes a cross-linking process that creates chemical bonds between polymer chains, forming a three-dimensional network structure. This transformation results in dramatically improved thermal, mechanical, and chemical resistance properties that make XLPE ideally suited for the harsh operating conditions found in maritime environments.

The rising demand for XLPE cables in industrial and port-related applications is driven by several factors: the increasing automation of port operations, the need for more reliable power transmission in corrosive marine environments, and the growing emphasis on reducing maintenance costs and operational downtime. As ports worldwide modernize their infrastructure to handle larger vessels and increased cargo volumes, the reliability and performance characteristics of XLPE cables have made them the preferred choice for critical power distribution systems.

XLPE Cable Structure and Manufacturing Process

Understanding the manufacturing process of Cross-linked polyethylene marine cable is crucial to appreciating its superior performance characteristics. The cross-linking process begins with high-quality polyethylene polymer, which is then subjected to one of several cross-linking methods: chemical cross-linking using peroxides, silane cross-linking, or irradiation cross-linking using electron beams.

The most common method for producing XLPE insulation involves the use of organic peroxides as cross-linking agents. During the extrusion process, the polyethylene compound containing the peroxide is heated to temperatures between 150°C and 200°C. At these elevated temperatures, the peroxide decomposes, creating free radicals that initiate the cross-linking reaction between polymer chains. This process transforms the thermoplastic polyethylene into a thermoset material with a three-dimensional network structure.

The cross-linking process fundamentally changes the material properties of the insulation. While standard polyethylene would melt and flow at temperatures above 105°C, XLPE maintains its structural integrity at temperatures up to 90°C for continuous operation, with short-term emergency ratings extending to 130°C. This thermal stability is particularly important for heat resistant cable for harbor terminals, where cables may be exposed to high ambient temperatures, solar radiation, and heat generated by electrical equipment.

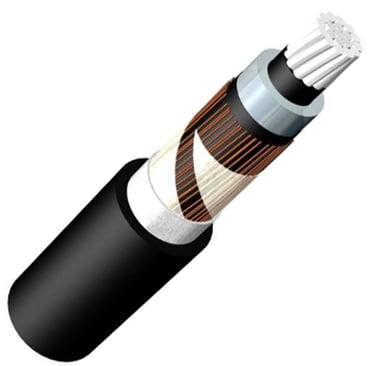

A typical marine-grade XLPE cable consists of several layers: a stranded copper or aluminum conductor, a semiconductor layer to ensure uniform electric field distribution, the XLPE insulation layer, another semiconductor layer, a metallic screen or sheath for electromagnetic shielding, and finally an outer protective jacket designed to withstand marine environmental conditions.

Key Features of XLPE Cable for Port Use

The unique properties of High voltage XLPE cables for port automation make them exceptionally well-suited for demanding port applications. The thermal resistance of XLPE insulation allows continuous operation at conductor temperatures up to 90°C, significantly higher than the 70°C rating of PVC cables. This increased thermal capacity enables XLPE cables to carry higher current loads in the same cable size, or alternatively, allows the use of smaller cable cross-sections for the same current carrying capacity.

The mechanical strength of XLPE cables is particularly important for crane cable reeling and flexing systems. Port cranes subject cables to constant bending, twisting, and mechanical stress as they move cargo containers. The cross-linked structure of XLPE provides excellent resistance to cracking and mechanical damage, even under repeated flexing cycles. This durability translates to longer service life and reduced maintenance requirements for critical port equipment.

Marine-grade XLPE flexible power cable demonstrates exceptional resistance to environmental factors that are prevalent in coastal settings. The material's inherent resistance to ultraviolet radiation prevents degradation from constant sun exposure, while its chemical resistance protects against corrosion from salt spray, oils, hydraulic fluids, and other chemicals commonly found in port environments. Unlike PVC, which can become brittle in cold conditions and soft in high temperatures, XLPE maintains its flexibility and mechanical properties across a wide temperature range.

The electrical properties of XLPE also contribute to its superior performance in port applications. The material has low dielectric loss characteristics, which means less energy is wasted as heat during power transmission. This efficiency is particularly important for long cable runs common in large port installations, where even small losses can accumulate to significant amounts over time. Additionally, XLPE's excellent dielectric strength allows for higher voltage applications, making it suitable for both low and high voltage power distribution systems within port facilities.

XLPE Cable vs. Traditional PVC/PE Cables in Ports

When comparing durable reeling cable for quay cranes, the advantages of XLPE over traditional PVC and PE cables become apparent across multiple performance metrics. The following comparison highlights the key differences:

Temperature Performance: XLPE cables can operate continuously at 90°C conductor temperature, while PVC cables are limited to 70°C. This 20°C difference allows XLPE cables to carry approximately 15-20% more current than equivalent PVC cables, or enables the use of smaller conductor sizes for the same current capacity.

Mechanical Properties: The cross-linked structure of XLPE provides superior tear resistance and impact strength compared to PVC. In port crane applications where cables are subject to frequent flexing and mechanical stress, XLPE cables demonstrate significantly longer service life. While PVC cables may require replacement every 5-7 years in demanding applications, XLPE cables can operate reliably for 15-20 years or more.

Environmental Resistance: Salt-laden coastal environments pose unique challenges for cable insulation materials. PVC can absorb moisture over time, leading to insulation degradation and potential failure. XLPE's cross-linked structure makes it virtually impermeable to moisture, maintaining its electrical properties even in high-humidity marine environments. Additionally, XLPE's resistance to UV radiation prevents the cracking and brittleness that often affects PVC cables in outdoor applications.

Chemical Resistance: Port environments expose cables to various chemicals including hydraulic fluids, lubricants, and cleaning solvents. XLPE demonstrates excellent resistance to these chemicals, while PVC may soften or crack when exposed to certain solvents and oils commonly used in port equipment.

Fire Performance: Modern XLPE formulations can be designed to meet stringent fire safety requirements, including low smoke and halogen-free properties. This is particularly important for enclosed spaces in port facilities where fire safety is a critical concern.

The longer replacement cycles and reduced maintenance requirements of XLPE cables in RTG (Rubber Tired Gantry) and STS (Ship-to-Shore) crane applications result in significant cost savings over the cable's lifetime, despite the higher initial investment compared to PVC alternatives.

Use Cases: Where XLPE Cables Are Used in Ports

XLPE insulated cable for coastal environments finds application across numerous port systems and equipment. Ship-to-Shore (STS) cranes represent one of the most demanding applications for port cables. These massive cranes move containers between ships and the dock, requiring flexible power cables that can withstand constant motion, heavy mechanical loads, and exposure to harsh marine conditions. The cable reeling systems on STS cranes often involve hundreds of meters of cable wound on large drums, subjecting the cables to continuous flexing cycles. XLPE cables' superior flexibility and resistance to mechanical stress make them ideal for these applications.

Automated Stacking Cranes (ASC) and RTGs present another critical application area. These cranes operate continuously in container yards, stacking containers multiple tiers high. The power cables must be able to handle the high current demands of the crane motors while maintaining reliability in outdoor environments subject to temperature extremes, UV exposure, and precipitation. XLPE cables' thermal stability and environmental resistance ensure consistent performance in these demanding conditions.

Cable reels for mobile harbor cranes require cables that can withstand frequent winding and unwinding operations. The mechanical stress imposed by these operations would quickly damage cables with inferior insulation materials. XLPE's superior mechanical properties and flexibility make it the preferred choice for these applications.

Shore power connections for green port electrification represent an emerging application area where XLPE cables play a crucial role. As ports worldwide implement shore power systems to allow ships to connect to land-based electrical grids while docked, the demand for high-capacity, reliable power cables has increased significantly. These systems often involve high voltage connections carrying substantial current loads, making the superior electrical and thermal properties of XLPE cables essential for safe and efficient operation.

Submarine power cables for port infrastructure, including connections to offshore facilities and floating docks, require the ultimate in environmental protection. XLPE's moisture resistance and chemical stability make it the material of choice for these critical underwater applications.

Standards and Certifications Relevant for Port Applications

Port applications demand cables that meet stringent international standards and certifications to ensure safety, reliability, and performance. The IEC 60502 standard series covers power cables with extruded insulation for rated voltages from 1 kV to 30 kV, providing specifications for XLPE-insulated cables used in port applications. This standard defines requirements for conductor materials, insulation thickness, electrical properties, and test methods to ensure consistent quality and performance.

The AS/NZS 5000 series of standards, widely used in Australia and New Zealand, provides specific requirements for power cables in harsh environments, including marine applications. These standards address the unique challenges posed by coastal environments, including salt spray corrosion, UV exposure, and temperature extremes.

For port applications, flame-retardant and low-smoke cable options are often required, particularly for enclosed machinery areas and underground installations. The IEC 60332 series of standards defines test methods for flame propagation characteristics, while IEC 61034 addresses smoke emission properties. Many ports also require cables to meet halogen-free specifications to minimize toxic gas emissions in case of fire.

The International Electrotechnical Commission (IEC) 60092 series specifically addresses electrical installations in ships and mobile offshore units, providing relevant guidance for port applications involving ship-to-shore connections and mobile equipment.

Choosing the Right XLPE Cable for Your Port Project

Selecting the appropriate XLPE cable for port applications requires careful consideration of multiple factors including electrical requirements, environmental conditions, and mechanical demands. The first consideration is determining the correct conductor cross-section based on the current carrying capacity requirements and voltage drop limitations. Port crane applications often require large conductor sizes to handle the high current demands of motor drives and control systems.

Voltage rating selection is crucial for safe and efficient operation. Common voltage ratings for port applications include 0.6/1kV for low voltage distribution, 6/10kV for medium voltage systems, and 12/20kV or higher for high voltage transmission within large port facilities. The voltage rating must exceed the system voltage with appropriate safety margins as specified by applicable standards.

The choice between reel-compatible and drag chain-compatible cable designs depends on the specific application requirements. Reel applications, common in crane systems, require cables with excellent flexibility and resistance to repetitive bending. Drag chain applications, used in automated container handling systems, demand cables specifically designed to withstand the unique mechanical stresses of chain movement.

Environmental factors play a crucial role in cable selection. Coastal ports present unique challenges including salt spray, high humidity, temperature extremes, and UV exposure. The cable's outer jacket material must be selected to provide adequate protection against these environmental factors while maintaining flexibility and mechanical strength.

For applications involving frequent flexing or movement, the cable construction must be optimized for dynamic applications. This includes the use of finely stranded conductors, specialized insulation formulations, and reinforced jacket designs to ensure long service life under mechanical stress.

Common Problems and Solutions in Port Cable Applications

Q: Why do cables fail prematurely in port crane applications?

A: Premature cable failure in port cranes is often attributed to inadequate mechanical design for the specific application demands. Standard building wire is not suitable for the constant flexing and reeling operations common in crane systems. The solution is to specify cables specifically designed for dynamic applications, with finely stranded conductors, flexible insulation materials like XLPE, and reinforced jacket constructions. Proper cable management systems, including appropriate bend radii and support structures, are also essential for maximizing cable life.

Q: How do salt spray and marine environments affect cable performance?

A: Salt spray creates a corrosive environment that can penetrate cable jackets and attack metallic components. Traditional PVC jackets may become brittle and crack over time, allowing moisture ingress that leads to insulation failure. XLPE cables with marine-grade jackets provide superior resistance to salt spray corrosion and maintain their protective properties over extended periods. Regular inspection and maintenance of cable terminations and joints are also crucial for preventing moisture ingress.

Q: What causes overheating in port power distribution systems?

A: Overheating typically results from inadequate cable sizing, poor ventilation, or excessive ambient temperatures. The higher temperature rating of XLPE cables (90°C vs. 70°C for PVC) provides greater thermal capacity and allows for higher current carrying capacity. Proper cable derating calculations must account for ambient temperature conditions, grouping effects, and installation methods to prevent overheating. Thermal monitoring systems can provide early warning of developing problems.

Q: How can ports minimize cable maintenance costs?

A: The key to minimizing maintenance costs is selecting the right cable technology for the application. While XLPE cables may have higher initial costs than PVC alternatives, their superior durability and longer service life result in lower total cost of ownership. Implementing preventive maintenance programs, including regular inspection of cable conditions and terminations, can identify potential problems before they result in costly failures. Using cables with appropriate environmental protection reduces the frequency of replacements and repairs.

Q: What are the considerations for shore power cable installations?

A: Shore power installations require high-capacity cables capable of handling the power demands of large vessels. The cables must be designed for frequent connection and disconnection cycles, with robust termination systems that can withstand mechanical stress. Environmental protection is crucial, as these cables are often exposed to weather conditions and potential physical damage. XLPE insulation provides the thermal capacity needed for high current applications while maintaining flexibility for handling operations.

Why Choose Advanced XLPE Solutions for Port Applications

The selection of appropriate cable technology for port applications requires a comprehensive understanding of the unique challenges present in marine environments. Advanced XLPE cable solutions offer custom-engineered options for cable reels and container crane electrification systems, designed to meet the specific requirements of each installation.

Modern XLPE cable manufacturing incorporates advanced polymer science and engineering to optimize performance characteristics for demanding applications. These solutions include specialized conductor designs for improved flexibility, enhanced insulation formulations for extended thermal life, and protective jacket systems engineered for specific environmental conditions.

Local compliance with national and international standards ensures that cable installations meet all regulatory requirements, while export-ready products with marine-grade certifications enable consistent performance across global port installations. The combination of technical expertise and manufacturing capability allows for the development of optimized solutions that balance performance requirements with cost considerations.

Technical support services, including engineering consultation for terminal electrification projects, ensure that cable selections are properly matched to application requirements. This comprehensive approach to cable system design helps optimize performance, reliability, and cost-effectiveness throughout the project lifecycle.

Conclusion

The evolution of port operations toward greater automation, higher capacity, and improved efficiency places increasing demands on electrical infrastructure. Cross-linked polyethylene cables have emerged as the preferred solution for these demanding applications, offering superior performance characteristics that address the unique challenges of marine environments.

The thermal stability, mechanical strength, and environmental resistance of XLPE cables make them ideally suited for port crane applications, shore power systems, and critical power distribution networks. While the initial investment in XLPE technology may be higher than traditional alternatives, the long-term benefits in terms of reliability, reduced maintenance, and extended service life provide compelling economic advantages.

As ports worldwide continue to modernize and expand their capabilities, the role of advanced cable technologies like XLPE becomes increasingly critical. The proper selection and application of these technologies can significantly impact operational efficiency, safety, and cost-effectiveness of port electrical systems.

For port operators and engineers seeking to optimize their electrical infrastructure, understanding the capabilities and applications of XLPE cable technology is essential. The investment in proper cable selection and installation pays dividends in terms of reduced downtime, lower maintenance costs, and improved operational reliability.

Whether planning new port construction or upgrading existing facilities, the advantages of XLPE cable technology make it a smart choice for ensuring reliable, efficient power distribution in the demanding marine environment. The combination of superior technical performance and long-term economic benefits positions XLPE cables as the preferred solution for modern port applications.

For detailed technical specifications and application guidance, consult with cable engineering specialists who can provide customized solutions for your specific port requirements. Technical datasheets and engineering consultation services are available to support optimal cable selection and installation practices.
