XLPE Insulated, PVC Sheathed 2 core+E Armored Cables, 0.6/1kV

These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

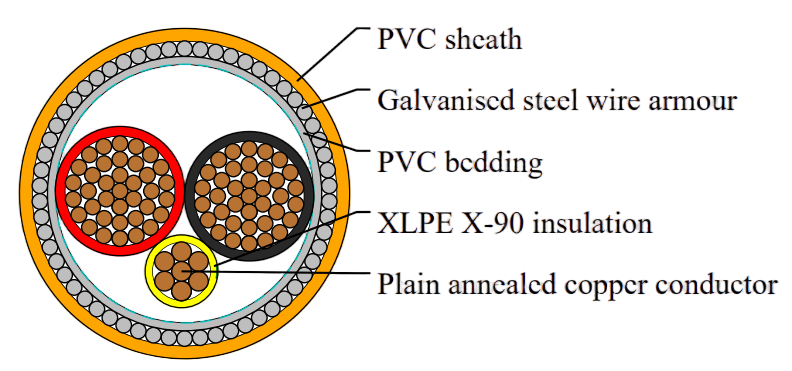

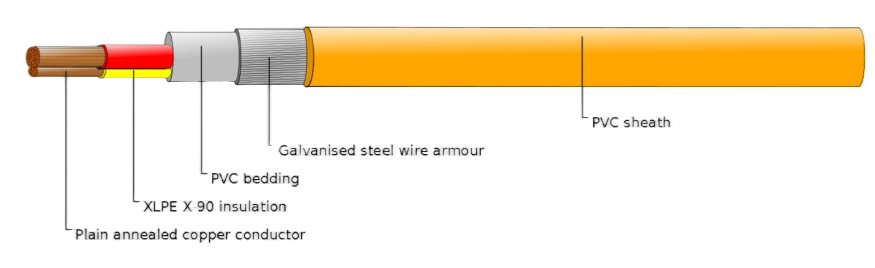

Conductor	Plain annealed copper.
Insulation	XLPE X-90.
Insulation colour:	2C + E - Red, Black, Green/yellow
Bedding:	Polyvinylchloride compound PVC 5V-90
Bedding colour:	Black
Armour:	Galvanised Steel Wire
Sheath:	Polyvinylchloride compound PVC 5V-90
Sheath colour:	Orange, other colors are available upon request

Conductor	Current Ratings			Electrical Characteristics
Nominal Area mm^2	Unenclosed In Air A	Buried Direct A	Buried In Ducts A	Maximum DC Resistance @20°C Ohm/km	Maximum AC Resistance @90°C Ohm/km	Reactance Ohm/km	Single Phase Voltage Drop @90°C mV/Am
16	97	130	100	1.15	1.47	0.0805	2.95
25	130	170	130	0.727	0.927	0.0808	1.86
35	160	205	160	0.524	0.669	0.0786	1.35
50	195	245	190	0.387	0.494	0.0751	1.00
70	250	300	235	0.268	0.343	0.0741	0.703
95	310	360	285	0.193	0.248	0.0725	0.520
120	360	410	325	0.153	0.197	0.0713	0.423
