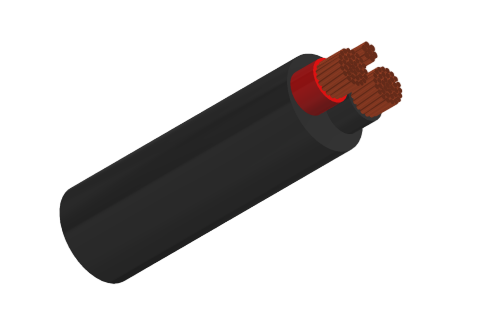

XLPE Insulated, PVC Sheathed 2 core+E Unarmored Cables, 0.6/1kV

These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

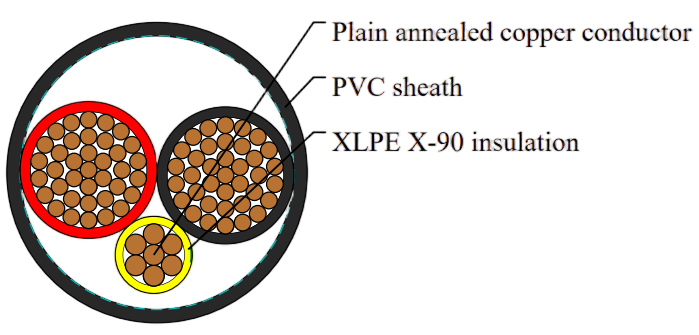

Conductor	Plain annealed copper.
Insulation	XLPE X-90.
Insulation colour:	2C + E - Red, Black, Green/yellow
Sheath:	Polyvinylchloride compound PVC 5V-90
Sheath colour:	Black, other colors are available upon request

Conductor	Current Ratings			Electrical Characteristics
Nominal Area mm^2	Unenclosed In Air A	Buried Direct A	Buried In Ducts A	Maximum DC Resistance @20°C Ohm/km	Maximum AC Resistance @90°C Ohm/km	Reactance Ohm/km	Single Phase Voltage Drop @90°C mV/Am
10	80	107	82	1.83	2.33	0.084	1.68
16	107	139	107	1.51	1.47	0.081	2.95
25	143	182	139	0.727	0.927	0.081	1.86
35	160	130	160	0.524	0.669	0.0786	1.35
50	195	160	190	0.387	0.494	0.0751	1.00
70	250	200	235	0.268	0.343	0.0741	0.703
95	310	240	285	0.193	0.248	0.0725	0.520
120	360	285	325	0.153	0.197	0.0713	0.423
