XLPE Insulated, PVC Sheathed 4 core+E Armored Cables 0.6/1kV

These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

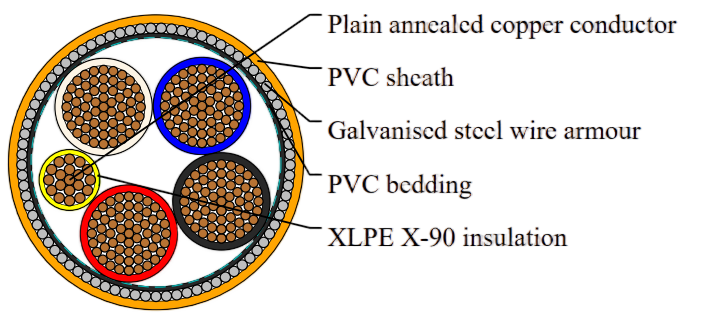

Conductor	Plain annealed copper.
Insulation	XLPE X-90.
Insulation colour:	4C + E - Red, White, Blue, black, Green/yellow
Bedding:	Polyvinylchloride compound PVC 5V-90
Bedding colour:	Black
Armour:	Galvanised Steel Wire
Sheath:	Polyvinylchloride compound PVC 5V-90
Sheath colour:	Orange, other colors are available upon request

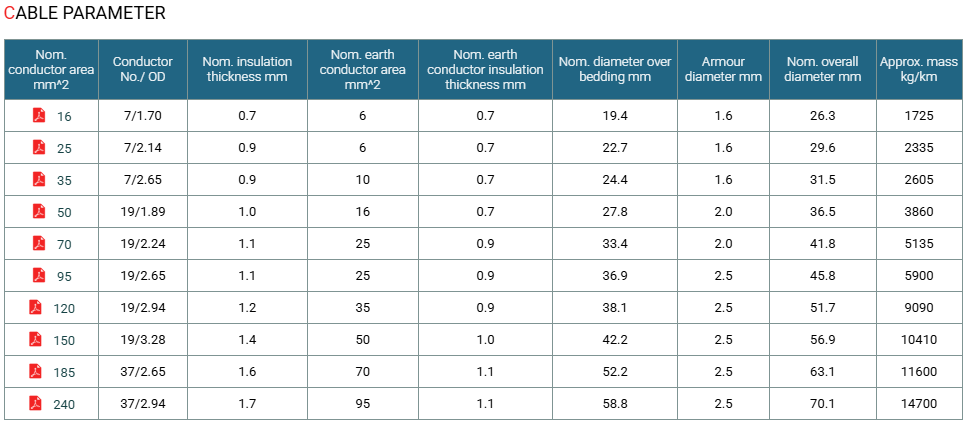

Conductor	Current Ratings			Electrical Characteristics
Nominal Area mm^2	Unenclosed In Air A	Buried Direct A	Buried In Ducts A	Maximum DC Resistance @20°C Ohm/km	Maximum AC Resistance @90°C Ohm/km	Reactance Ohm/km	Three Phase Voltage Drop @90°C mV/Am
16	83	110	83	1.15	1.47	0.0805	2.55
25	110	145	110	0.727	0.927	0.0808	1.61
35	135	170	135	0.524	0.669	0.0786	1.17
50	170	205	160	0.387	0.494	0.0751	0.868
70	215	250	200	0.268	0.343	0.0741	0.609
95	265	300	240	0.193	0.248	0.0725	0.450
120	305	345	275	0.153	0.197	0.0713	0.366
150	350	385	310	0.124	0.160	0.0718	0.307
185	405	435	355	0.0991	0.129	0.0720	0.259
240	480	500	420	0.0754	0.0998	0.0709	0.216
