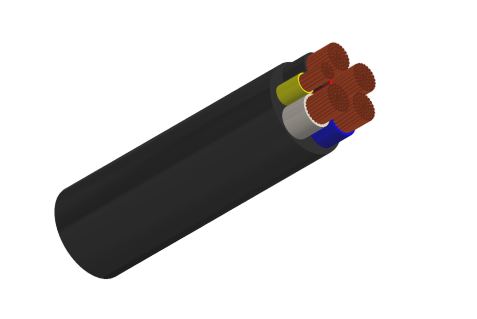

XLPE Insulated, PVC Sheathed 4 core+E Unarmored Cables 0.6/1kV

These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

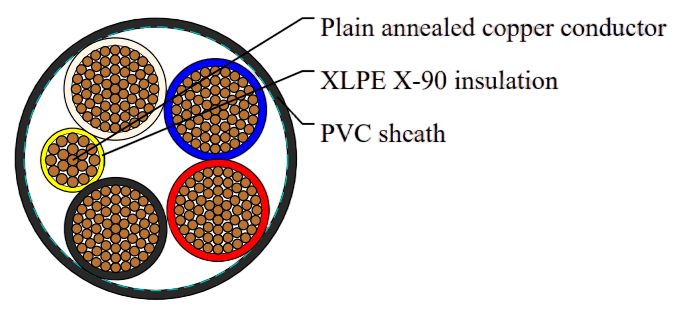

Conductor	Plain annealed copper.
Insulation	XLPE X-90.
Insulation colour:	4C + E - Red, White, Blue, black, Green/yellow
Sheath:	Polyvinylchloride compound PVC 5V-90
Sheath colour:	Black, other colors are available upon request

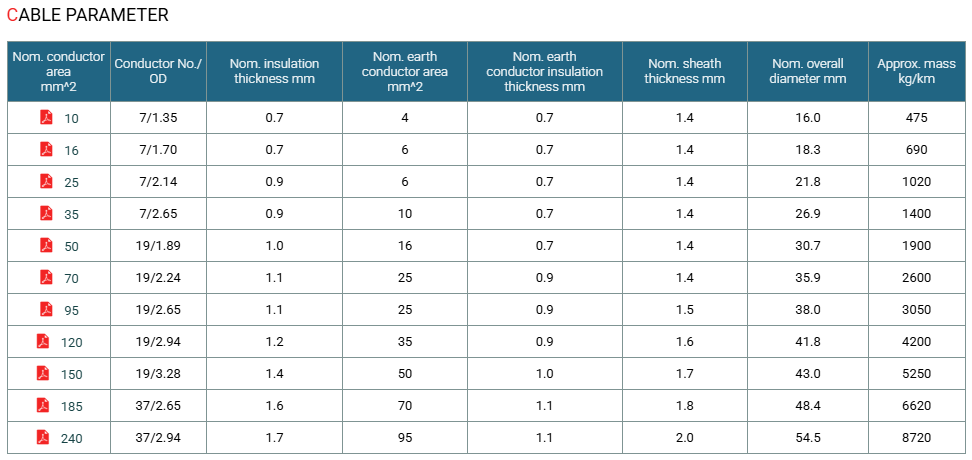

Conductor	Current Ratings			Electrical Characteristics
Nominal Area mm^2	Unenclosed In Air A	Buried Direct A	Buried In Ducts A	Maximum DC Resistance @20°C Ohm/km	Maximum AC Resistance @90°C Ohm/km	Reactance Ohm/km	Three Phase Voltage Drop @90°C mV/Am
10	68	91	68	1.83	2.33	0.084	4.05
16	91	118	89	1.15	1.47	0.081	2.55
25	121	155	118	0.727	0.927	0.081	1.61
35	149	182	144	0.524	0.669	0.079	1.17
50	187	219	171	0.387	0.494	0.075	0.868
70	237	268	214	0.268	0.343	0.074	0.609
95	292	321	257	0.193	0.248	0.073	0.450
120	305	250	275	0.153	0.197	0.0713	0.366
150	350	280	310	0.124	0.16	0.0718	0.307
185	405	325	355	0.0991	0.129	0.072	0.259
240	480	385	420	0.0754	0.0998	0.0709	0.216
