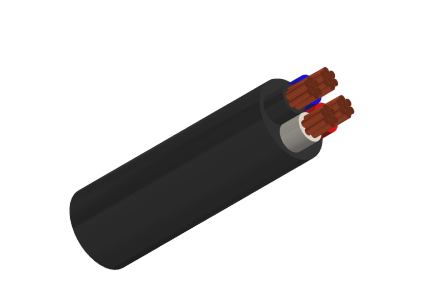

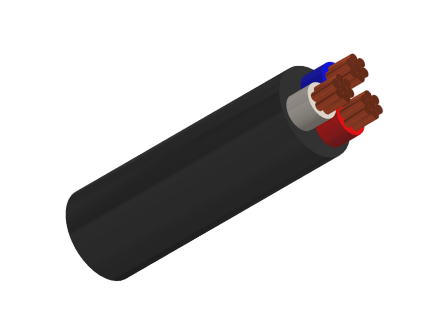

XLPE Insulated, PVC Sheathed Unarmored Multicore control Cables 0.6/1kV

These cables are used for control circuits unenclosed, enclosed in conduit, buried direct or in underground ducts for commercial, industrial, mining and electricity authority systems where not subject to mechanical damage.

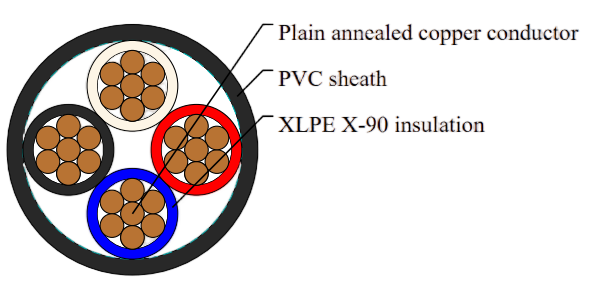

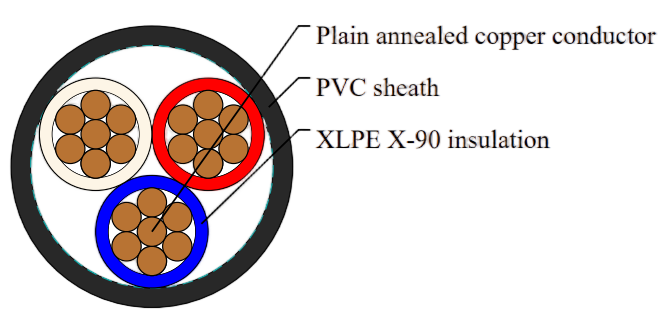

Conductor	Plain annealed copper.
Insulation	XLPE X-90.
Insulation colour:	3C – Red, White, Blue 4C - Red, White, Blue,black
Sheath:	Polyvinylchloride compound PVC 5V-90
Sheath colour:	Black, other colors are available upon request

Conductor	Current Ratings			Electrical Characteristics
Nominal Area mm^2	Unenclosed In Air A	Buried Direct A	Buried In Ducts A	Maximum DC Resistance @20°C Ohm/km	Maximum AC Resistance @90°C Ohm/km	Reactance Ohm/km	Three Phase Voltage Drop @90°C mV/A
10	68	91	68	1.83	2.33	0.084	4.05
16	91	118	89	1.15	1.47	0.081	2.55
25	121	155	118	0.727	0.927	0.081	1.61
