XnUHAKXS 8.7/15KV

AL/SC/XLPE/SC/SC SWEL/CU WIRES/SWEL/PE

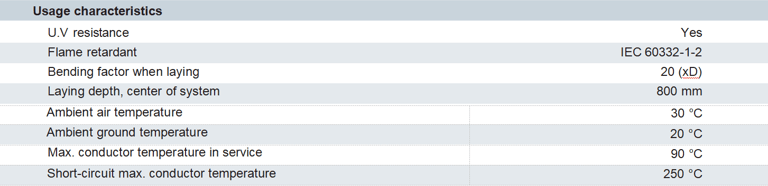

APPLICATION

Power use outdoor application, even wet.

Suitable for fixed installations at open air, in tube or canals and underground. Max. Operation temperature: 90°

Max. Short circuit temperature : 250° (Max 5 s)

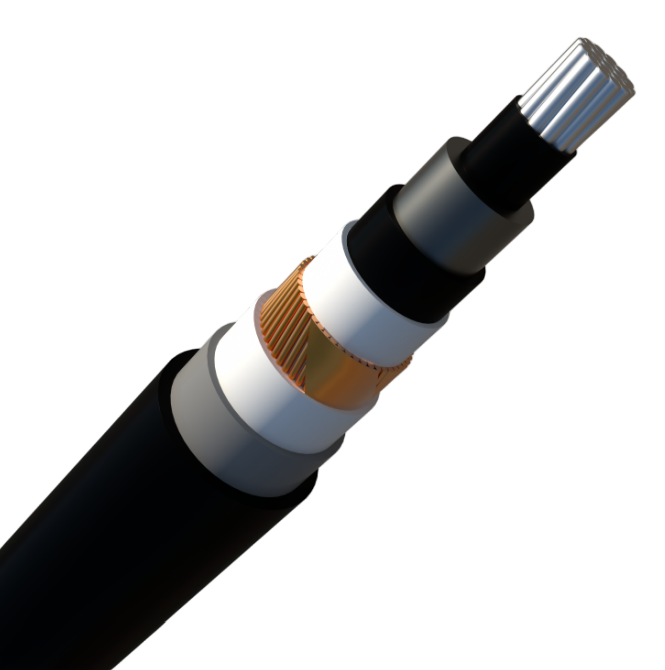

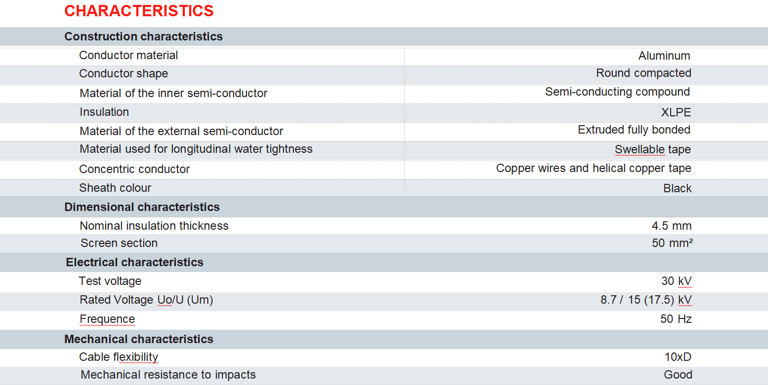

CONSTRUCTION

1. Conductor:

Compacted Round conductor class 2

2. Insulation:

Extruded inner semi conductive layer, XLPE insulation and  extruded outer semi conductive layer

3. Water proof tape:

Semi-conductive swelling tape

4. Metallic screen layer:

Copper wires with open helix copper tape

5. Water proof tape:

Swelling tape

6. Outer sheath:

PE, Black or as per customer requirement
