XP CU/XLPE/PVC (2CORES-5 CORES) XLPE Insulated,PVC Sheathed Cable,0.6/1kV,IEC60502

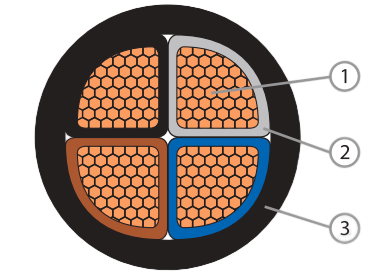

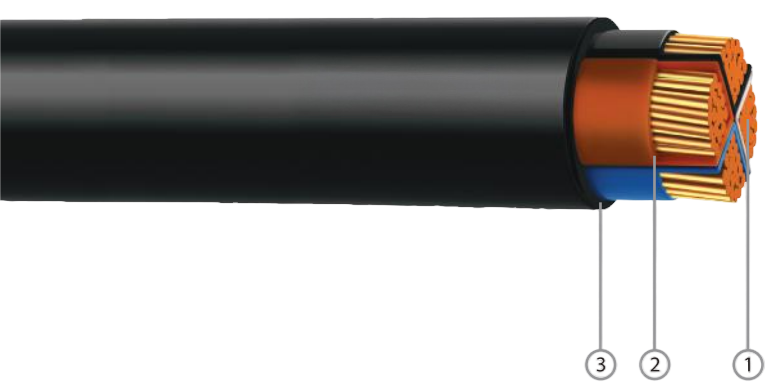

CONSTRUCTION

Conductor:

ELECTRICAL CHARACTERISTICS

Plain Annealed  Copper,Class 2  Stranded              Operating     Voltage,Uo/U:                0.6/1KV

Insulation:

Circular,Compacted   or   Sectored  Cross-linked    Polyethylene(XLPE) Compound

Operating    Temperature:

Final  Short  Circuit  Temperature:

-15℃ to 90℃ 250℃

Insulation    Colour:

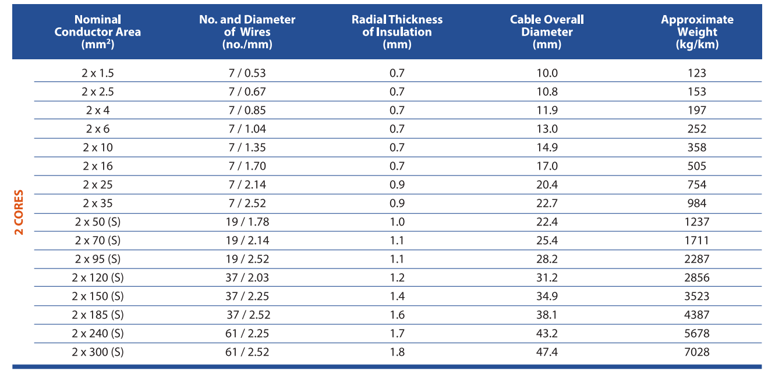

2 Cores:

Brown,Blue  or  Red,Black

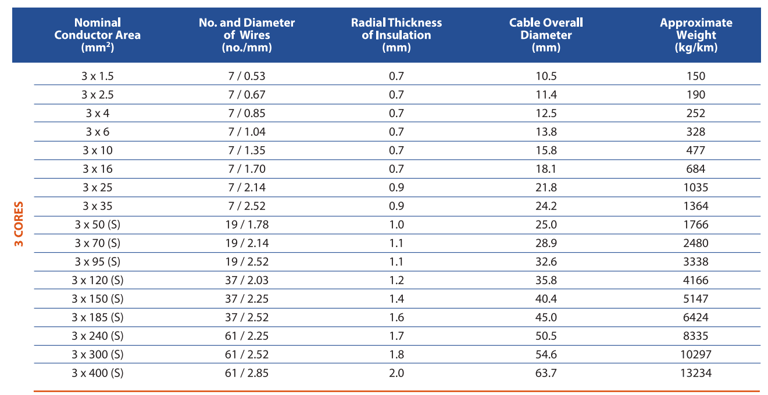

3 Cores:

Brown,Black,Grey   or   Red,Yellow,Blue

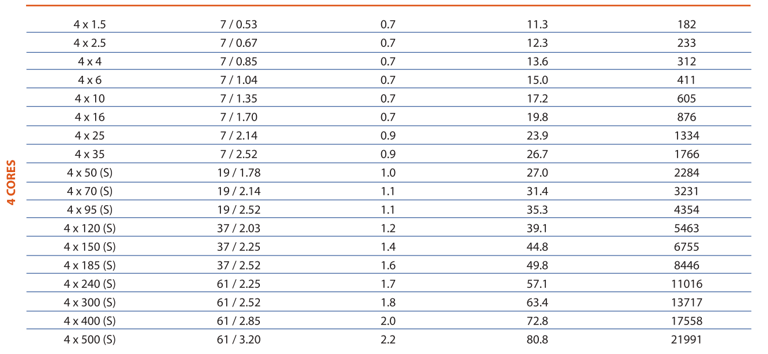

4 Cores:

Brown,Black,Grey,Blue   or   Red,Yellow, Blue,Black

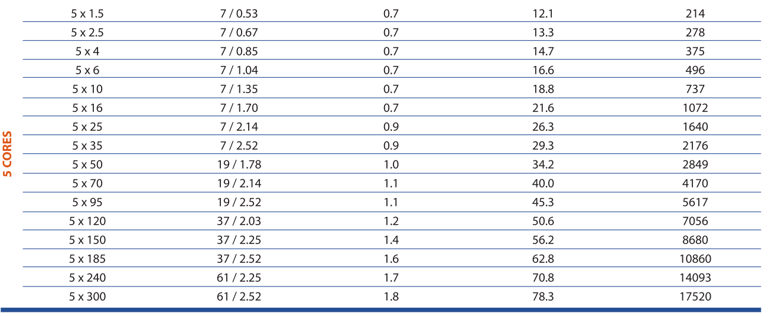

5 Cores:

Brown,Black,Grey,Blue,Green/Yellow      or Red,Yellow,Blue,Black,Green/Yellow      or

White  with  Black  numbering  or  Others

Assembly:

Cores  cabled  together  with  filler  and covered  with   Polyester(PET)Tape

Outer   Sheath:

Polyvinyl      Chloride(PVC)Compound Type ST2

Outer  Sheath  Colour:

Black

Min.Bending Max.Pulling

Radius(mm):

Tension(N/mm²):

8×cable      overalldiameter

50
